Remove/Install Upper Trim Strip On Window Frame Of Rear Door - AR72.12-P-1711S

Model 223

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove lower trim strip at window frame of rear door.	Model 223.0/1
			AR72.12-P-1712S

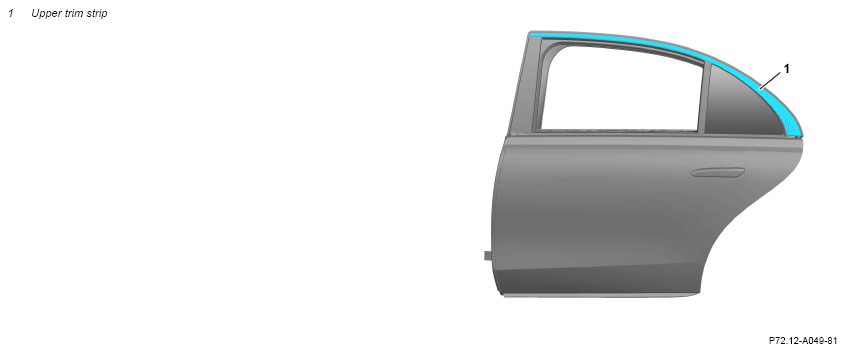

2	Unclip upper trim strip (1).	Carefully unclip upper trim strip (1) longitudinally. Upper trim strip (1) will otherwise be bent.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
		Long wedge	Fig 1
3	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
