Adjust Front Door - AR72.10-P-0550S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Check
1	Check gap dimensions at front door (3).		AR60.00-P-0900-01S
		Always perform adjustment work on uneven gap dimensions on upper and lower hinge leaves. Otherwise tension and damage can occur.
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front door cover to rear door cover	*BE60.00-P-1010-01PA
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front door to rear door	*BE60.00-P-1008-01PA
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front door to fender	*BE60.00-P-1007-01PA
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front/rear door to roof paneling, side	*BE60.00-P-1006-01PA
		Feeler gauge	Fig 1
	Remove

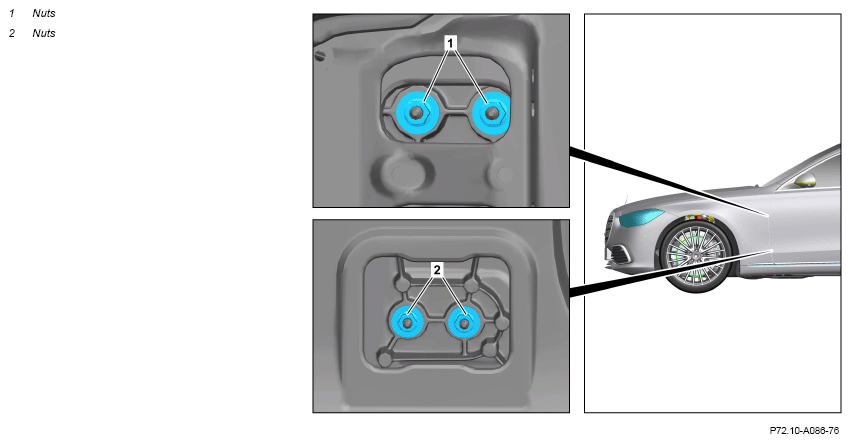

2.1	Expose nuts (1, 2) of hinges.	When adjusting driver's door.
			AR72.10-P-0003S
			AR72.10-P-0006S
2.2	Expose nuts (1, 2) of hinges.	When adjusting front passenger door.
			AR72.10-P-0004S
			AR72.10-P-0005S
3	Remove door holder (7) from A-pillar.	Move door holder (7) to zero position. The paint will be damaged otherwise.
	Adjust

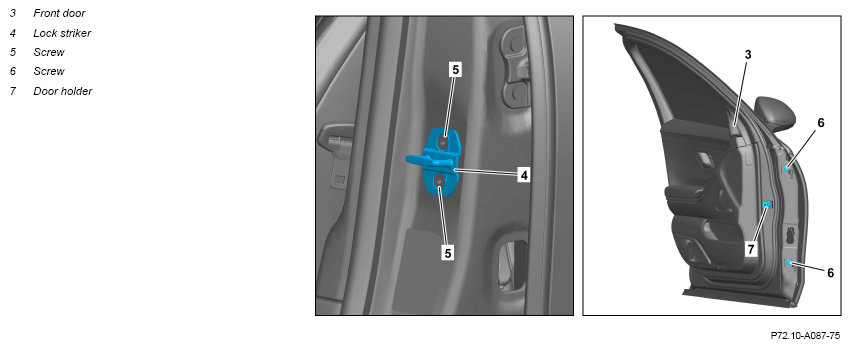

4	Mark position of lock striker (4) relative to B-pillar.
5	Unscrew screws (5) and remove lock striker (4).
6	Release nuts (1) and nuts (2) at A-pillar alternately.	When performing adjustment work on hinge halves on A-pillar. During adjustment, ensure that only nuts (1) or nuts (2) are loosened. If front door (3) comes into contact with other component parts, the paint may otherwise be damaged.
7	Adjust corresponding gap dimensions by moving front door (3).	When performing adjustment work on hinge halves on A-pillar.
			AR60.00-P-0900-01S
		Carefully move front door (3). If front door (3) comes into contact with other component parts, the paint may otherwise be damaged.
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front door cover to rear door cover	*BE60.00-P-1010-01PA
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front door to rear door	*BE60.00-P-1008-01PA
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front door to fender	*BE60.00-P-1007-01PA
		Model 223.0/1 except code Z07 (B7 armoring on special protection version) Front/rear door to roof paneling, side	*BE60.00-P-1006-01PA
		Feeler gauge	Fig 1
8	Tighten nuts (1) and nuts (2) at A-pillar.	When performing adjustment work on hinge halves on A-pillar.
		Nut, hinge to A-pillar	*BA72.10-P-1001-01BA
9	Release screws (6) on front door (3) alternately.	When performing adjustment work on hinge halves on front door (3). During adjustment work, ensure that only one of the screws (6) is loosened. If front door (3) comes into contact with other component parts, the paint may otherwise be damaged.
10	By moving front door (3), adjust transition of front door to rear door (3) and door position in a vertical direction.	When performing adjustment work on hinge halves on front door (3). Contour of front door (3) must align with contour of rear door or may protrude by a maximum of 1 mm.
11	Tighten screws (6) on front door (3).	When performing adjustment work on hinge halves on front door (3).
		Model 223 except code Z07 (B7 armoring on special protection version) Screw, hinge to front door	*BA72.10-P-1002-01BA
12	Position lock striker (4) on B-pillar and position	It should still be possible to adjust the lock striker (4).
13	Align lock striker (4) by carefully closing front door (3).	Contour of front door (3) must align with contour of B-pillar or may protrude by a maximum of 1 mm.
14	Tighten screws (5) of lock striker (4) at B-pillar.	Screw, lock striker to B-pillar	*BA72.10-P-1013-01BA
	Install
15	Repair paint damage on screw heads of screws (6).	When performing adjustment work on hinge halves on front door (3).
16	Protect front door (3) or B-pillar against corrosion in area of the two hinges.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
17	Attach door holder (7) to A-pillar.	Bolt, door holder at A-pillar	*BA72.10-P-1004-01BA
18.1	Assemble area around nuts (1, 2) for hinges.	When adjusting driver's door.
			AR72.10-P-0006S
			AR72.10-P-0003S
18.2	Assemble area around nuts (1, 2) for hinges.	When adjusting front passenger door.
			AR72.10-P-0004S
			AR72.10-P-0005S

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
