Remove/Install Cover Of Rear Roof Frame - AR88.80-P-2010S
Model 223.0/1/9
MODIFICATION NOTES
| 08.03.2023 | Gap dimension information updated | Step 9 |
Shown on model 223.1 with code 200 (Conditionally automated driving)
| Risk of injury. Injury may result if the cutting wire tears or heats up while using it to cut out components that are glued into place. | Wear protective gloves and safety glasses. | AS65.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on handling adhesive | AH67.00-P-1000-01A | ||
| Remove | |||
| 1 | Remove left and right drip rails. | AR88.80-P-4000S | |
| 2 | Mask off all paint surfaces adjacent to cover (1) with protective foil. | Protect paint surfaces against damage and contamination. The adjacent paint surfaces may otherwise be damaged. |
|

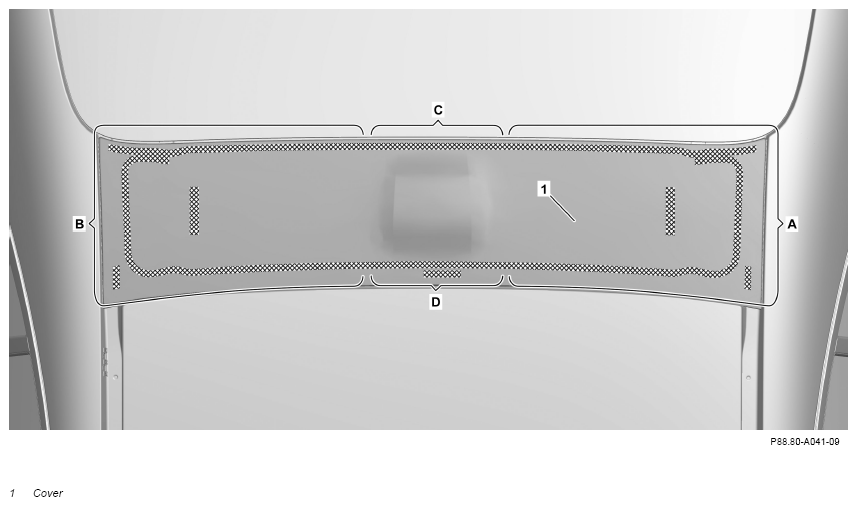

| 3 | Insert cutting wire between cover (1) and body and separate adhesively bonded connections (areas A, B, C, D) starting from the outside. | Carefully separate adhesively bonded connections (cross-hatched areas) and protect adjacent paint surfaces with The adjacent paint surfaces may otherwise be damaged. |
|
Model 223.0/1/9 with code 200 (Conditionally automated driving) Observe sufficient distance from HAD antenna. The HAD antenna may otherwise be damaged. |
|||
| Fig 3 | |||
| 4 | Lift cover (1) using cup suction tools and remove. | ||
| Install | |||
| 5 | Prepare body flange for installation. | AR88.80-P-2010-01S | |
| 6 | Paint repair areas and adjacent surfaces. | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 7 | Replace seals of cover (1). | If seals are damaged or when replacing cover (1). | |
| AR88.80-P-2010-04S | |||
| Fig 2 | |||
| 8 | Prepare cover (1) for installation. | AR88.80-P-2010-02S | |
| 9 | Position cover (1) on body flange using cup suction tools, align, and fix in place. | ||
| *BE60.00-P-1021-01PA | |||
| Fig 1 | |||
| 10 | Remove protective foils from roof. | ||
| 11 | Install left and right drip rails. | AR88.80-P-4000S |
GAP DIMENSIONS
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BE60.00-P-1021-01PA | Side wall to antenna panel | Dimension "T" | mm | 3 (±1, 5) |
| For picture, see | AR60.00-P-0900-01S | |||
