Unfasten/Fasten Drip Rail In Area Of Windshield - AR88.80-P-4000S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

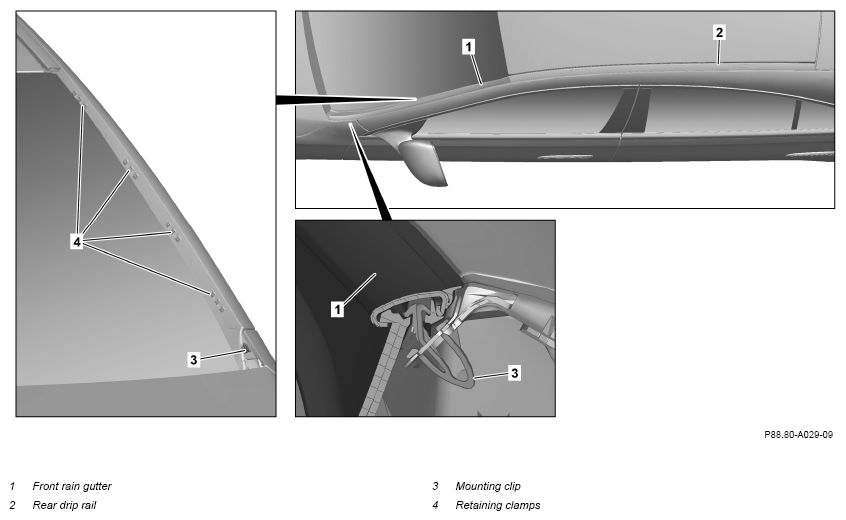

Shown on model 223.0 on the left side of the vehicle except code 413 (Panoramic sliding sunroof/glass roof)

Shown on model 223.0 on the left side of the vehicle except code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Open hood.
2	Unclip front drip rail (1) at the bottom by retaining clip (3).
3	Lift front drip rail (1), remove it from the retaining clamps (4) and take it out under the rear drip rail (2).
4	Pull rear drip rail (2) along the roof frame, out of the retaining clamps (4) and remove it.
	Install

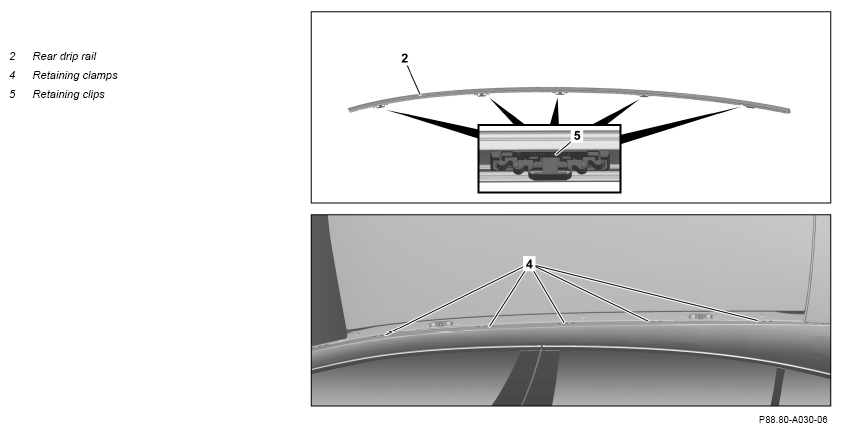

5	Position rear drip rail (2) with the retaining clips (5) on the retaining clamps (4) on the roof.	Replace damaged retaining clips (5).
6	Clip in rear drip rail (2) beginning at the rear.
7	Insert front drip rail (1) into rear drip rail (2) and clip them into the retaining clamps (4) and the retaining clip (3) downward.	Replace damaged retaining clip (3). Ensure that sealing lips are positioned correctly. Front drip rail (1) must audibly engage in the retaining clip (3).
8	Close hood.
