Install Seals For Cover Of Rear Roof Frame - AR88.80-P-2010-04S
Model 223.0/1/9
Shown on model 223.1 with code 200 (Conditionally automated driving)
Do not touch bonding surfaces of the front seal (2), side seals (3) and sealing tape (4) with bare fingers. Keep free from dust, oil, grease, wax, dirt residues, and other adhesive components.
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
Only use materials from repair kit approved and always observe processing notes included.
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
- Clean bonding surfaces of the front seal (2), side seals (3) and sealing tape (4).
Use cleaner contained in the repair kit.

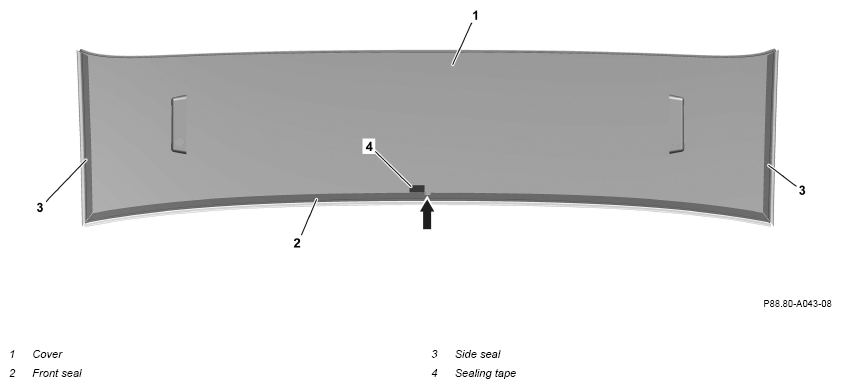

- Position front seal (2) in relation to the centering tab (arrow) of the cover (1).
- Position side seals (3) in relation to the front seal (2).
- Glue sealing tape (4) on the rear edge of the front seal (2) to the left of the centering tab (arrow).
- Press on front seal (2), side seals (3) and sealing tape (4) with
roller.
