Prepare Body Flange For Cover Of Rear Roof Frame For Installation - AR88.80-P-2010-01S
Model 223.0/1/9
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on handling adhesive | AH67.00-P-1000-01A |

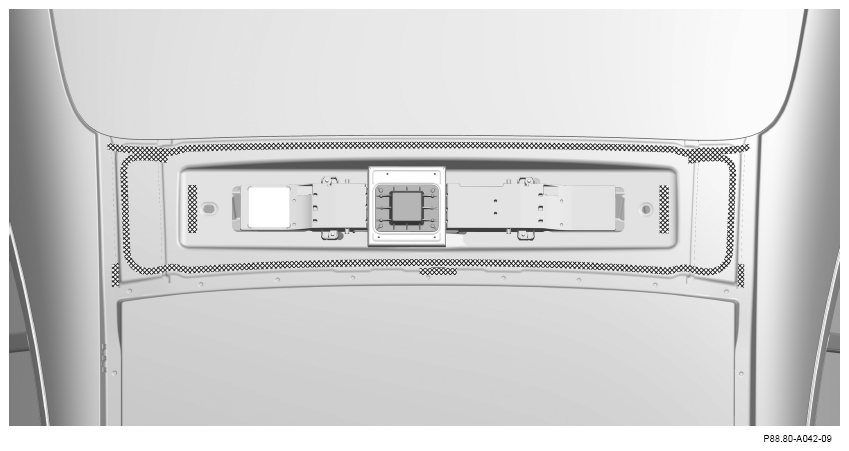

Shown on model 223.1 with code 200 (Conditionally automated driving)
Only use materials from repair kit approved and always observe processing notes included.
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
If new parts were installed in the area of the cover during a body repair, mask off bonding surfaces before painting.
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
- Cut back residual adhesive material on the body flange to a maximum height of 1 mm (cross-hatched areas).
- Remove cut off adhesive material from the body flange.
- Repair paint damage on body flange.
Only use primer filler and paints approved by Daimler AG: https://xentry.daimler.com
Apply primer only after primer has dried.
The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.
- Apply primer in gluing area if adhesive material is not present.
