Prepare Cover Of Rear Roof Frame For Installation - AR88.80-P-2010-02S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

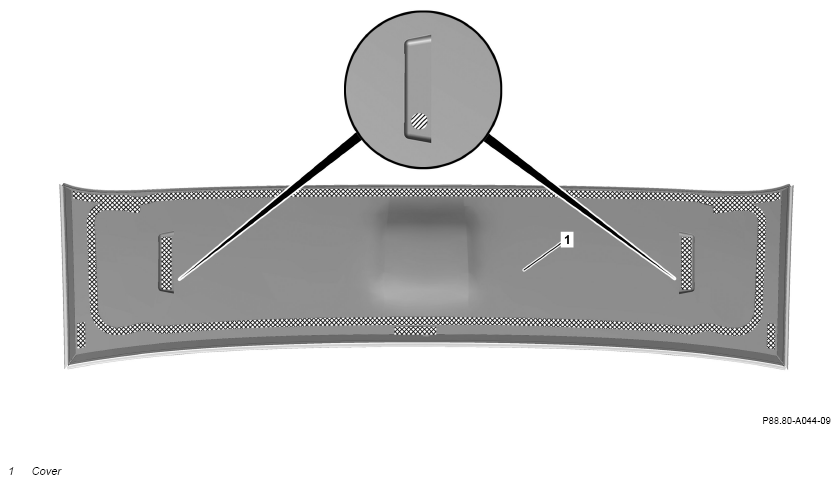

Shown on model 223 1 with code 200 (Conditionally automated driving)

Only use materials from repair kit approved and always observe processing notes included.

The strength of the adhesively bonded connection is otherwise impaired and the required adhesion of the adhesive material is not ensured.

1. Install cup suction tools on the outside of the cover (1).
2. Place cover (1) on a suitable subsurface with the inside pointing upward.

   Helper required.

3. Clean cross-hatched areas on the cover (1).

   Use cleaner contained in the repair kit.

4. Apply primer in cross-hatched areas.

   Use primer contained in the repair kit.

5. Cut triangular opening of application nozzle.
6. Fill holes in the cover (1) in the hatched areas completely with adhesive.
7. Apply adhesive to the cover (1) evenly in the cross-hatched areas.
