Remove/Install Liftgate - AR72.20-P-1020MEC
Model 167.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper tailgate trim. | AR72.20-P-6631MEC | |

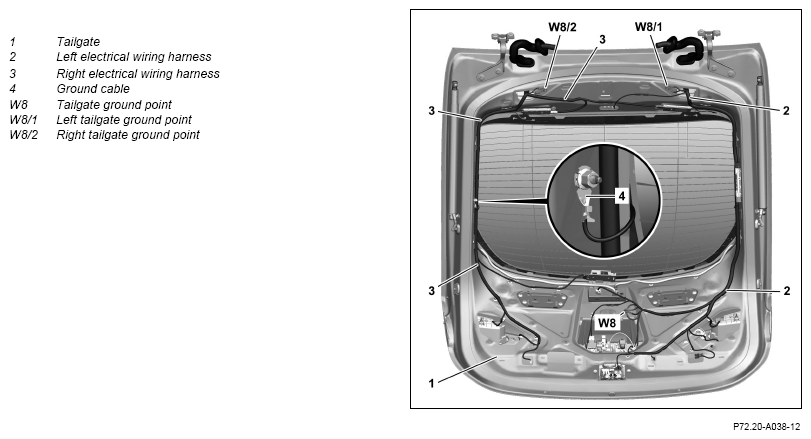

| 2 | Remove nuts from ground line (4), tailgate ground point (W8), left tailgate ground point (W8/1) and right tailgate ground point (W8/2). | ||
| Notice | Notes on the use of paint scraping nuts on ground connections | AH00.19-P-1000-20A | |
| *BA00.19-P-1051-01M | |||
| *BA00.19-P-1011-01M | |||
| *BA00.19-P-1010-01M | |||
| *BA00.19-P-1009-01M | |||
| 3 | Disconnect electrical connectors of left electrical wiring harness (2) and right electrical wiring harness (3). | ||
| 4 | Expose left electrical wiring harness (2) and right electrical wiring harness (3) and remove them from the tailgate (1). | Do not overtension, crush or kink the left electrical wiring harness links (2) or the right electrical wiring harness (3). Otherwise, the left electrical wiring harness (2) or the right electrical wiring harness (3) may be damaged. |
|
| Fig 1 | |||

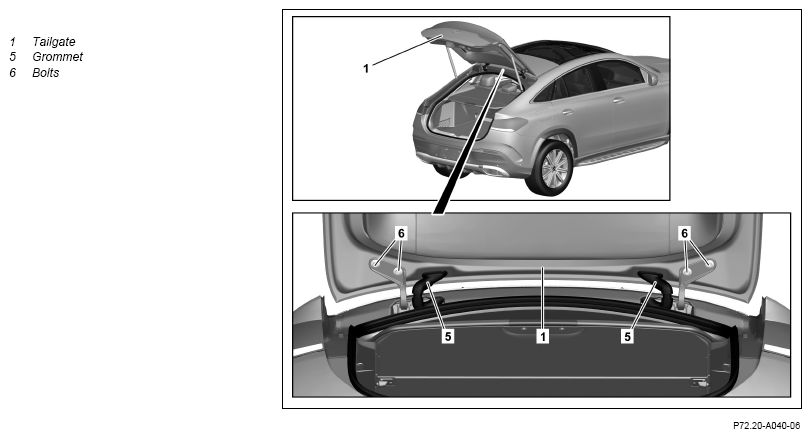

| 5 | Pull both grommets (5) out of tailgate (1). | Carefully pull out grommets (5). Otherwise, the left electrical wiring harness (2) or the right electrical wiring harness (3) may be damaged. |
|
| 6 | Carefully guide left electrical wiring harness (2 and right electrical wiring harness (3) out of tailgate (1). | Do not overtension, crush or kink the left electrical wiring harness links (2) or the right electrical wiring harness (3). Otherwise, the left electrical wiring harness (2), the right electrical wiring harness (3) or the electrical connectors may be damaged. |
|
Note the routing and padding of the left electrical wiring harness (2) and of the right electrical wiring harness (3). Otherwise, noises may arise during driving. |
|||
| 7 | Mechanically lock rotary tumbler at tailgate lock using a suitable screwdriver. | ||
| 8 | Remove drive unit of trunk lid/tailgate control on the left/right (M51/5, M51/3) of the tailgate (1). |
AR80.40-P-7511ME | |
| 9 | Unscrew screws (6), remove tailgate (1) and set down on suitable base. | ||
| *BA72.20-P-1005-02J | |||
| 10 | Remove all remaining detachable parts of tailgate (1). | If tailgate (1) is replaced. | |
| 11 | Install in the reverse order. | ||
| Adjust | |||
| 12 | Adjust tailgate (1). | AR72.20-P-0002MEC |
GROUND POINTS
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA00.19-P-1009-01M | Liftgate ground point | W8 | Nm | 10 |
GROUND POINTS
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA00.19-P-1010-01M | Left tailgate ground point | W8/1 | Nm | 10 |
GROUND POINTS
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA00.19-P-1011-01M | Right tailgate ground point | W8/2 | Nm | 10 |
GROUND POINTS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA00.19-P-1051-01M | Ground point (right rear window heater) | Nm | 10 |
LIFTGATE
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA72.20-P-1005-02J | Bolt, hinge to liftgate | Nm | 36 |
