Remove/Install Upper Liftgate Trim - AR72.20-P-6631MEC
Model 167.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center liftgate trim. | AR72.20-P-6618ME | |

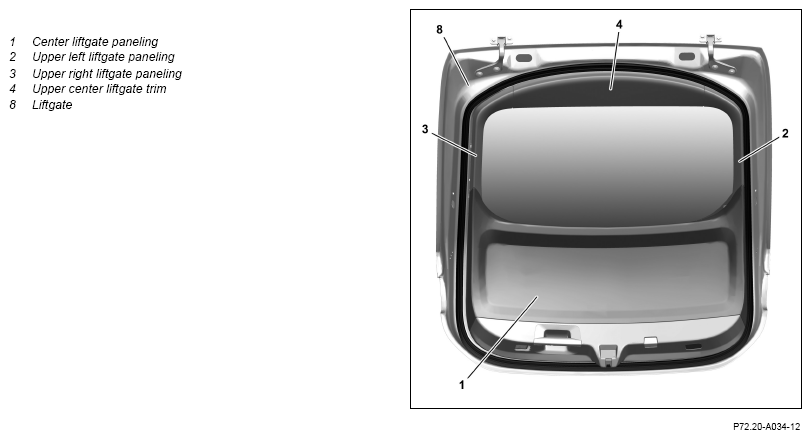

| 2 | Unclip the top left liftgate trim (2) and top right liftgate trim (3) to the side in the direction of the center of the liftgate (8). | Ensure that the retaining clamps (5) and the guides (6) are positioned correctly. Otherwise, the top left liftgate trim (2) or the top right liftgate trim (3) may be damaged. |
|
| Fig 1 | |||

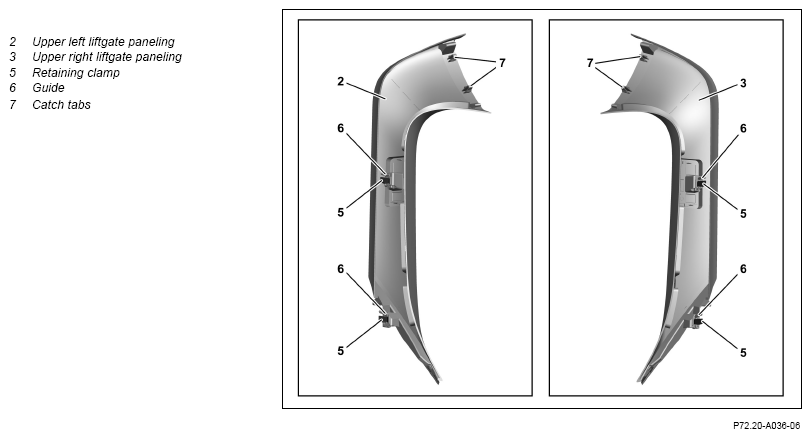

| 3 | Release the top left liftgate trim (2) and top right liftgate trim (3) on the catch tabs (7) from the top center liftgate trim (4) and remove them. | Fig 1 | |

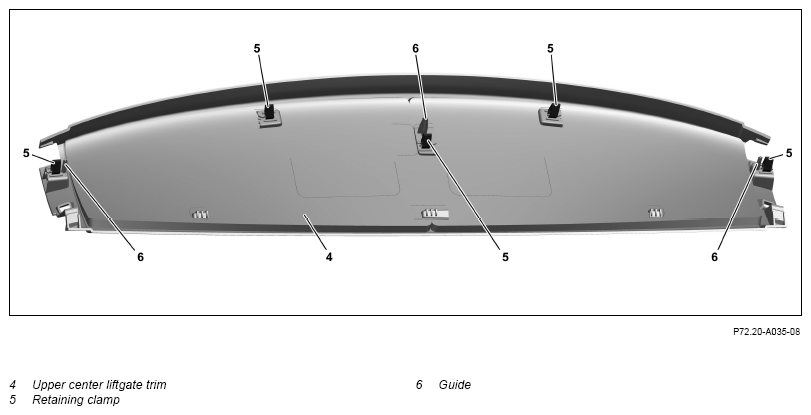

| 4 | Unclip top center liftgate trim (4). | Ensure that the retaining clamps (5) and the guides (6) are positioned correctly. Otherwise, the top center liftgate trim (4) will be damaged. |
|
| Fig 1 | |||
| Check | |||
| 5 | Check retaining clamps (5) for damage. | If there is a problem, ↓ Replace corresponding retaining clips (5). |
|
| 6 | Check guides (6) for damage. | If there is a problem, ↓ Replace top left liftgate trim (2), top right liftgate trim (3) or top center liftgate trim (4). |
|
| 7 | Install in the reverse order. |
