Remove/Install Drive Unit For Rear-End Door/Liftgate Power Closing Function - AR80.40-P-7511ME
Model 167
Shown on model 167.1

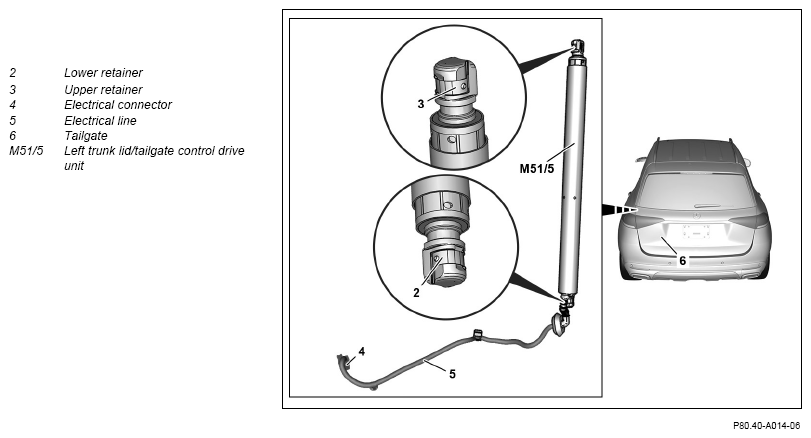

Fig 1: Rear-End Power Door/Liftgate Drive Unit Components Location - Model 167 (Shown On Model 167.1)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from fingers being pinched or jammed when working on gas struts under pressure | Only remove and install pneumatic springs when they are not under tension and when the components are properly secured. | AS00.00-Z-0012-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open tailgate (6) and secure with support. | Fig 3 | |
| 3 | Remove center tailgate trim. | AR72.20-P-6618ME | |
| 4 | Release and disconnect electrical connector (4) and guide electric line (5) out of the tailgate (6). | Check that the cable brackets are seated correctly and that the electric line (5) is routed correctly. To prevent noise development during vehicle operation. |
|
| Fig 2 | |||
| 5 | Lift lower retainer (2) of the drive unit of the trunk lid/tailgate control on the left/right (M51/5, M51/3) with a suitable tool and remove the drive unit of the trunk lid/tailgate control on the left/right (M51/5, M51/3) from the ball pin. | Do not remove lower retainer (2). Otherwise tension can be lost. |
|
| 6 | Lift the upper retainer (3) of the drive unit of the trunk lid/tailgate control on the left/right (M51/5, M51/3) with a suitable tool and remove the drive unit of the trunk lid/tailgate control on the left/right (M51/5, M51/3) from the ball pin. | Do not remove upper retainer (3). Otherwise tension can be lost. |
|
| 7 | Install in the reverse order. |
