Adjust Liftgate - AR72.20-P-0002MEC

Model 167.3

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Check
1	Check gap dimensions at tailgate (1).		AR60.00-P-0900-01ME
		Sidewall to liftgate	*BE60.00-P-1013-01LA
		Liftgate to rear bumper	*BE60.00-P-1016-01LA
		Outside of taillamp to inside of taillamp	*BE60.00-P-1018-01LA
		Liftgate to roof	*BE60.00-P-1025-01LA
		Feeler gauge	Fig 1
	Remove

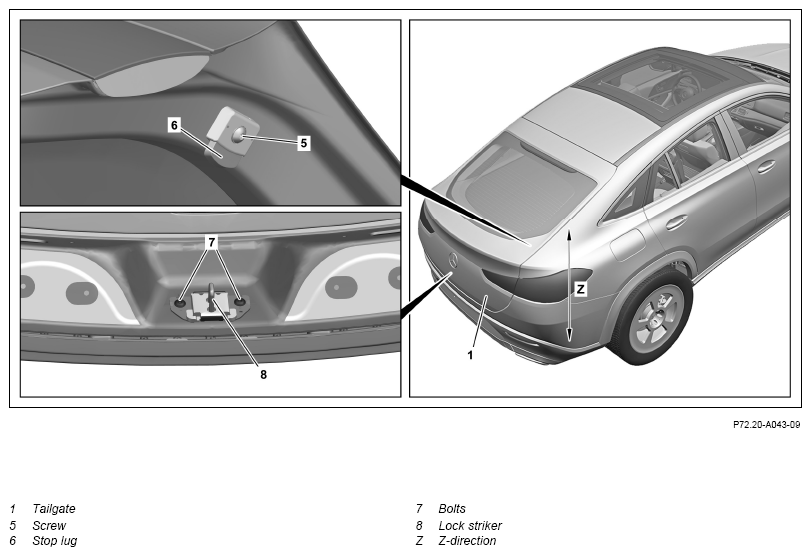

2	Loosen screws (5) on left and right and press stop lugs (6) on left and right back completely.
3	Remove rear-end center-section trim.		AR68.30-P-4786ME
4	Remove lock striker (8).
5	Remove drive unit of trunk lid/tailgate control on the left/right (M51/5, M51/3) of the tailgate (1).		AR80.40-P-7511ME
		Do not support tailgate with support. Aid of helper required.
	Adjust in x-direction (X)

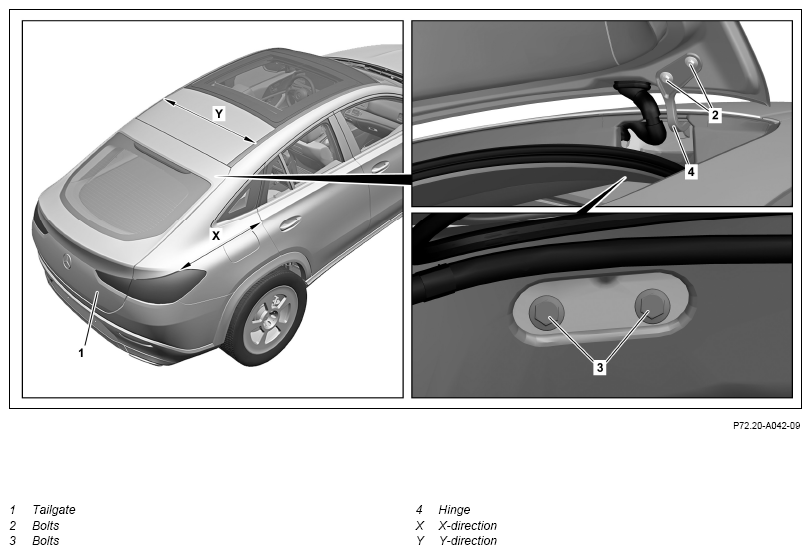

6	Release screws (2) at left and right hinge (4).
7	Adjust tailgate in x-direction (X).	Aid of helper required.
		Sidewall to liftgate	*BE60.00-P-1013-01LA
		Liftgate to rear bumper	*BE60.00-P-1016-01LA
		Outside of taillamp to inside of taillamp	*BE60.00-P-1018-01LA
		Liftgate to roof	*BE60.00-P-1025-01LA
		Feeler gauge	Fig 1
8	Tighten released screws (2) at hinges (4).	Aid of helper required.
		Bolt, hinge to liftgate	*BA72.20-P-1005-02J
9	Repair paintwork damage at screws (2) using suitable touch-up paint pen.
	Remove
10	Loosen roof lining and lower it until the screws (3) are accessible.	When the tailgate is being adjusted in y-direction (Y) or z-direction (Z).
			AR68.30-P-4300MEC
		Do not remove the windshield.
	Adjust in Y-direction (Y) and/or Z-direction (Z)
11	Release screws (3) at left and right hinge (4).
12	Adjust tailgate in y-direction (Y) or z-direction (Z).	Aid of helper required. The upper edge of the tailgate must be flush with the roof.
		Sidewall to liftgate	*BE60.00-P-1013-01LA
		Liftgate to rear bumper	*BE60.00-P-1016-01LA
		Outside of taillamp to inside of taillamp	*BE60.00-P-1018-01LA
		Liftgate to roof	*BE60.00-P-1025-01LA
		Feeler gauge	Fig 1
13	Tighten released screws (3) at hinges (4).	Aid of helper required.
		Bolt/nut, hinge for liftgate to body	*BA72.20-P-1008-02J
14	Repair paintwork damage at screws (3) using suitable touch-up paint pen.
	Install
15	Screw in lock striker (8) and position screws (7) up to end stop.
	Adjusting the transitions to the edges of the fenders and the D-pillars
16	Adjust transition between tailgate and edges of rear fender and D-pillars by moving lock strike (8).	The tailgate must be flush with edges of fender and D-pillars. Ensure the tailgate closes correctly.
17	Tighten bolts (7) on lock striker (8).	Screw/bolt, lock striker to body	*BA72.20-P-1006-02J
18	Completely pull out stop lugs (6).
19	Close and re-open tailgate.	Ensure the tailgate closes correctly.
20	Tighten bolts (5).
	Install
21	Install rear-end center-section trim.		AR68.30-P-4786ME
22	Install drive unit of the trunk lid/tailgate control on the left/right (M51/5, M51/3) of the tailgate (1).		AR80.40-P-7511ME
		Aid of helper required.
23	Install headliner.	If the tailgate has been adjusted in y-direction (Y) or z-direction (Z).
			AR68.30-P-4300MEC
	Calibrate
24.1	Calibrate reversing camera.	Model 167.3 with code 218 (Rear view camera) except code 235 (Active Parking Assist)
			AD00.00-P-2000-06ME
		Calibration device	Fig 2
24.2	Calibrate the reversing camera together with the remaining 360° cameras.	Model 167.3 with code 501 (360° camera)
			AD00.00-P-2000-06ME

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Calibration Device (000 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
