Remove/Install Spring Control Arm On Front Axle - AR33.15-P-0170FR

Model 257

Shown on left side of vehicle except code M005 (4MATIC)

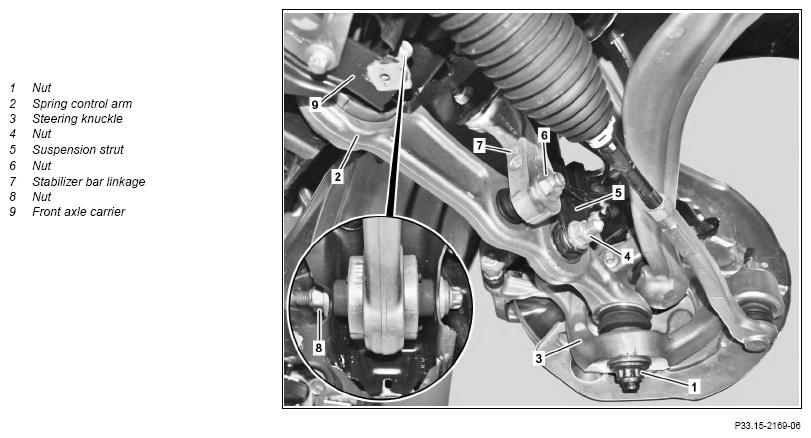

G14548561Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle with code

M005 (4MATIC)

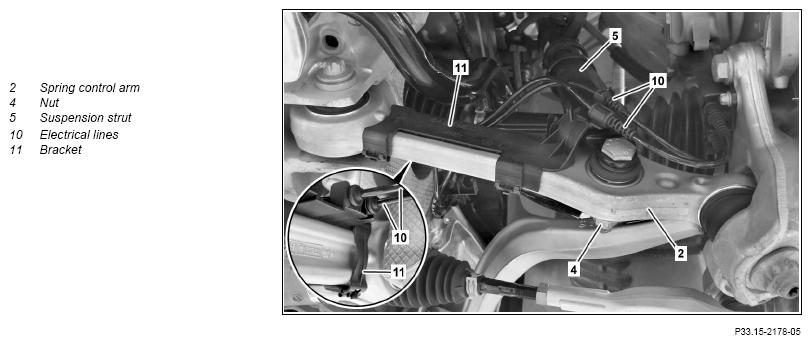

G14548562Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. AS00.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Notes on AIR BODY CONTROL Model 257
with code 489 (AIR BODY CONTROL)
AH32.22-P-1000-03LWO
Notice Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
Notice Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Vent pressure in AIRMATIC system using vehicle diagnosis system. Model 257
with code 489 (AIR BODY CONTROL)

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
2 Remove center and rear engine compartment lining.   AR61.20-P-1105FR
3 Remove front wheel.   AR40.10-P-1102A
4 Unhook electric lines (10) from holder (11) and place to one side. Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
NOTES
Do not kink, crush or stretch electric lines. Otherwise, the lines will be damaged and malfunctions will occur.

5 Unscrew nut (4) and remove suspension strut (5) from spring link (2). Model 257
with code 489 (AIR BODY CONTROL)
AR32.25-P-1017FRA
    Model 257
except code 489 (AIR BODY CONTROL)
NOTES
Route suspension strut (5) on spring control arm (2) in suspension strut linkage area to one side.
Otherwise, the elastomer boot on the suspension strut joint will be damaged.
AR32.25-P-1017FR
6 Unscrew nut (6) and remove torsion bar linkage (7) from spring link (2). Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
NOTES
The ball head must be counterheld and an impact wrench/driver must not be used. Otherwise the ball head gets damaged.

7 Remove stabilizer bar from front axle. Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
IMPORTANT The torsion bar linkage (7) remains installed on the stabilizer bar.
AR32.35-P-2200FRA
8 Unscrew nut (8) and remove spring link (2) from front axle carrier (9). TORQUE SPECIFICATION Bolt, spring control arm to front axle carrier *BA33.20-P-1002-01U
9 Unscrew nut (1), detach and remove spring link (2) from steering knuckle (3). NOTES
Counterhold the ball head and do not use an impact wrench/driver.
Otherwise the ball head or steering knuckle (3 may be damaged.

    TORQUE SPECIFICATION Nut, spring control arm to steering knuckle *BA33.20-P-1001-01U
    SPECIAL TOOL Model 257 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Socket wrench
Fig 4
10 Remove holder (11) from spring link (2). Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
When replacing the spring control arm (2).

INSPECT Check
11 Check sealing bellows and ball head of spring link (2) for damage. If damage is found,

replace spring link (2).

12 Check suspension strut linkage on spring link (2) for damage. If damage is found,

replace spring link (2).

13 Check suspension strut linkage on spring link (2) for damage. Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
If damage is found,

replace spring link (2).

14 Check if an elastomer bearing for caster correction is installed in the previously-installed spring link (2). When replacing the spring control arm (2).
IMPORTANT The elastomer bearing for caster correction has an off-center bearing core.
If an elastomer bearing for caster correction is installed,

remove elastomer bearing of new spring link (2) and install a corresponding elastomer bearing for caster correction.


    Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR33.15-P-0001-01FR
    Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR33.15-P-0001-01FRA
    SPECIAL TOOL Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Sleeve
Fig 3
    SPECIAL TOOL Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Extraction and insertion tool
Fig 2
    SPECIAL TOOL Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Extraction and insertion tool
Fig 5
    SPECIAL TOOL Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Extraction and installation tool
Fig 6
15 Check elastomer bearing in spring link (2) for damage. SPECIAL TOOL Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Press-in tool
When reusing the spring link (2).
Fig 1
  Evaluation of elastomer bearings   AH00.10-P-0001-01A
    IMPORTANT The neutral elastomer bearing has a central bearing core.
The elastomer bearing for caster correction has an off-center bearing core.
If damage is found and a neutral elastomer bearing is installed,

replace spring link (2).
If damage is found and an elastomer bearing for camber correction is installed,

replace elastomer bearing on spring link (2).

    Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR33.15-P-0001-01FRA
    Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR33.15-P-0001-01FR
    SPECIAL TOOL Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive) Sleeve
Fig 3
    SPECIAL TOOL Model 257
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Extraction and insertion tool
Fig 2
    SPECIAL TOOL Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Extraction and insertion tool
Fig 5
    SPECIAL TOOL Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Extraction and installation tool
Fig 6
    SPECIAL TOOL Model 257
except code M005 (Vehicles with 4MATIC/all-wheel drive)
Press-in tool
Fig 1
16 Install in the reverse order.
17 Perform chassis alignment.   AR40.20-P-0200FR
WHEEL CONTROL, HUB

Number Designation Model 257
BA33.20-P-1001-01U Nut, spring control arm to steering knuckle Stage 1 Nm 250
Stage 2 ∠° -
WHEEL CONTROL, HUB

Number Designation Model 257
BA33.20-P-1002-01U Bolt, spring control arm to front axle carrier Stage 1 Nm 120
Stage 2 ∠° 180
