Empty/Fill Electrohydraulic Suspension - AR32.50-P-0042S

Model 223

with code 490 (Electrohydraulic suspension)

Courtesy of MERCEDES-BENZ USA

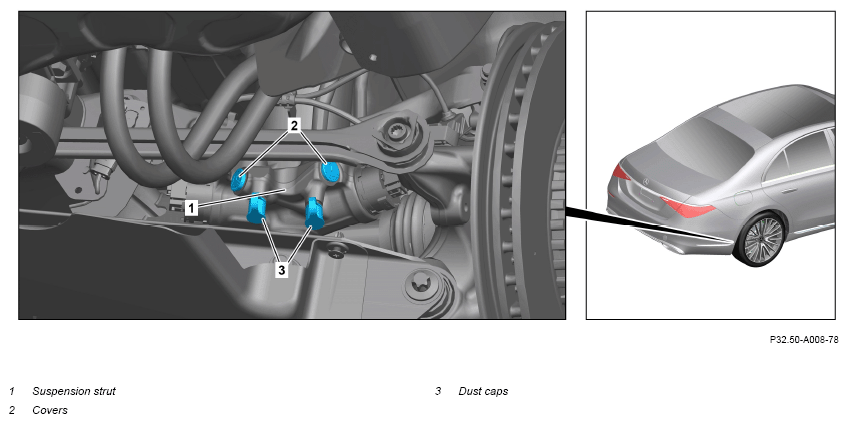

Shown on rear axle

Courtesy of MERCEDES-BENZ USA

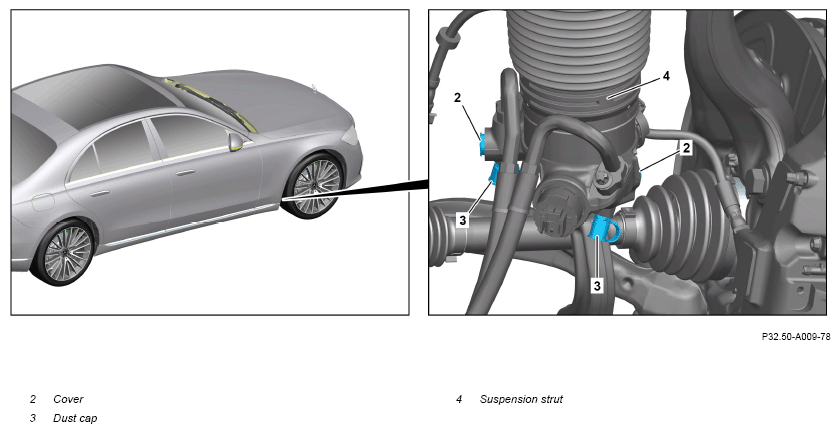

Shown on front axle

Courtesy of MERCEDES-BENZ USA

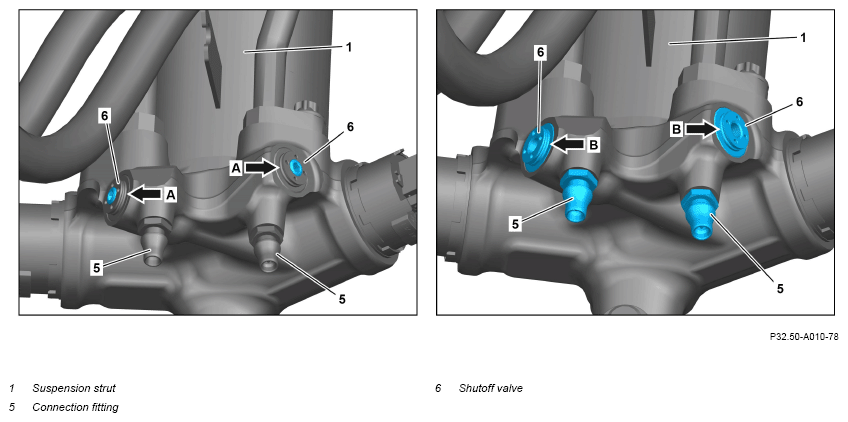

Shown on rear axle

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
Notice	Information on E-ACTIVE BODY CONTROL suspension		AH32.50-P-0002-01ME
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Draining
1	Connect diagnostic system.
			AD00.00-P-2000-06FR
2	Move front wheels to straight-ahead position.
3	Lift vehicle with vehicle lift.		AR00.60-P-1006A
4	Remove cover from spring link at rear left and right.
	Clean
5	Clean area surrounding respective suspension strut (1, 4)	Thoroughly clean area around respective suspension strut (1, 4) before working on electrohydraulic suspension. Otherwise minute dirt particles in the hydraulic components result in malfunctions and total failure of the electrohydraulic suspension. Use clean, lint-free rag only. Assembly cleaner	*BR00.45-Z-1028-04A
6	Remove covers (2) of shutoff valves (6).
7	Remove dust caps (3) of connection fittings (5).	If the dust caps (3) of the connection fittings (5) are missing, ↓ replace respective dust cap (3) and connection fitting (5).
			AR32.50-P-0009-01S
		Screw, shutoff valve to suspension strut	*BA32.50-P-1008-04B
		Connection fitting to suspension strut	*BA32.50-P-1009-04B
		Preservation agent, 400 ml	*BR00.45-Z-1030-05A
8	Empty hydraulic lines of electrohydraulic suspension using guided diagnosis.
			AD00.00-P-2000-06FR
	000 588 03 82 00 Filling unit	Before each emptying procedure, the shutoff valves (6) of the respective suspension strut (1, 4) must be screwed in up to the end stop (arrows A). Otherwise the suspension strut (1, 4) will be irreparably damaged. The hydraulic pressure in the suspension strut (1, 4) can only be retained by closing the shutoff valves (6). It is not possible to fill the suspension strut (1, 4).	WS32.00-P-0032B
		Screw, shutoff valve to suspension strut If pressure release using diagnostic system is not possible, ↓ release pressure manually.	*BA32.50-P-1008-04B
		Manually reduce pressure in hydraulic system of electrohydraulic suspension if shutoff valves (6) are intact	AR32.50-P-0015-01S
		Screw, shutoff valve to suspension strut If shutoff valves (6) on suspension strut (1, 4) cannot be closed, ↓ release pressure in system and replace suspension strut (1, 4).	*BA32.50-P-1008-04B
		Manually reduce pressure in hydraulic system of electrohydraulic suspension if shutoff valves (6) are defective Remove suspension strut (1).	AR32.50-P-0015-02S
		Model 223 with code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) Remove suspension strut (4).	AR32.25-P-1016SA
		If connection fittings (5) are damaged, ↓ replace connection fittings (5).	AR32.25-P-1017SA
			AR32.50-P-0009-01S
		Screw, shutoff valve to suspension strut	*BA32.50-P-1008-04B
		Connection fitting to suspension strut	*BA32.50-P-1009-04B
		Preservation agent, 400 ml	*BR00.45-Z-1030-05A
	Filling
9	Fill hydraulic lines of electrohydraulic suspension using guided diagnosis.
		After each filling procedure, the shutoff valves (6)	AD00.00-P-2000-06FR
		must be unscrewed up to the end stop (arrows B). Otherwise the hydraulic circuit will not be connected to the hydraulic pump. Screw, shutoff valve to suspension strut	*BA32.50-P-1008-04B
		Filling capacity	*BF32.50-P-1001-02A
10	Install covers (2) of shutoff valves (6).
11	Install dust caps (3) of connection fittings (5).
12	Install cover on spring link at rear left and right.
13	Lower vehicle.		AR00.60-P-1006A
14	Disconnect diagnostic system.
			AD00.00-P-2000-06FR
