Remove/Install Brake Unit - AR43.10-P-0360S

Model 223

with code 200 (Conditionally automated driving)

Model 223

with code 27U (Automatic parking service (Valet Parking))

Model 223

with code 503 (Remote-controlled parking)

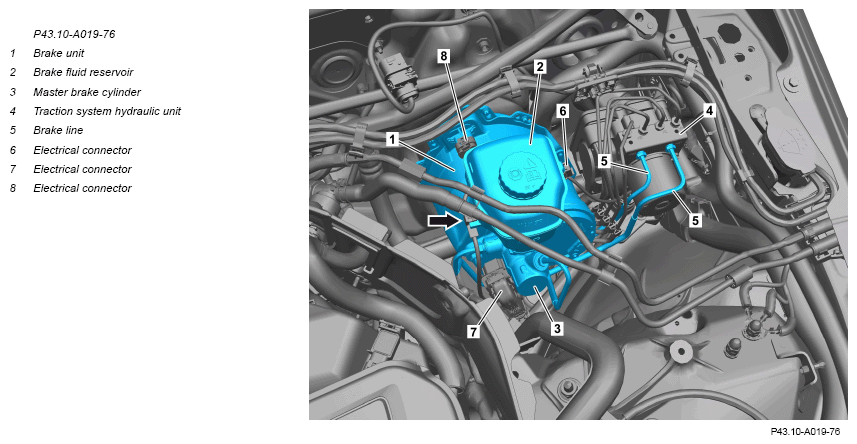

Shown on model 223.### 1#

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Commission electric brake booster control unit.	When replacing brake unit (1).
		The electric brake booster control unit is integrated into the brake unit (1).	AD00.00-P-2000-06FR
2	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
3	Release fuse and relay module in engine compartment and place to one side.	Do not install the cover over the brake fluid reservoir (2) until the brake system has been bled.	AR54.15-P-0005S
	Clean
4	Clean area around cap on brake fluid reservoir (2).	Assembly cleaner	*BR00.45-Z-1028-04A
5	Clean master brake cylinder (3) and traction system hydraulic unit (4) in area of connections of brake lines (5).	Before opening the hydraulic system, thoroughly clean the area around the connections. Otherwise minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed-air for cleaning when the brake system is open.
		Assembly cleaner	*BR00.45-Z-1028-04A
6	Remove cap of brake fluid reservoir (2) and extract brake fluid.
7	Remove brake lines (5) and seal openings with suitable stop plugs.	Retaining screw, brake line to master brake cylinder	*BA42.10-P-1002-04R
		Retaining screw, brake line to hydraulic unit	*BA42.10-P-1001-04R
		Box wrench bit	Fig 1
		Record plug	Fig 2
8	Release and disconnect electrical connectors (6, 7).
9	Release and disconnect electrical connector (8) and unclip electric line (arrow).
10	Remove brake pedal.		AR29.10-P-0300S
11	Remove brake unit (1).
	Check
12	Check boot of brake unit (1) for damage.	If removed brake unit (1) is to be reinstalled. If there is a problem, ↓ replace brake unit (1).
13	Check brake lines (5) for deformation.	If there is a problem, ↓ replace brake lines (5).
			AR42.10-P-0020B
14	Install in the reverse order.
15	Bleed brake system.		AR42.10-P-0010S
	Check
16	Perform brake test on test stand.
			AP42.00-P-4290BS

Fig 1: Identifying Box Wrench Bit (140 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
