Remove/Install Pedal Assembly - AR29.10-P-0300S

Model 223

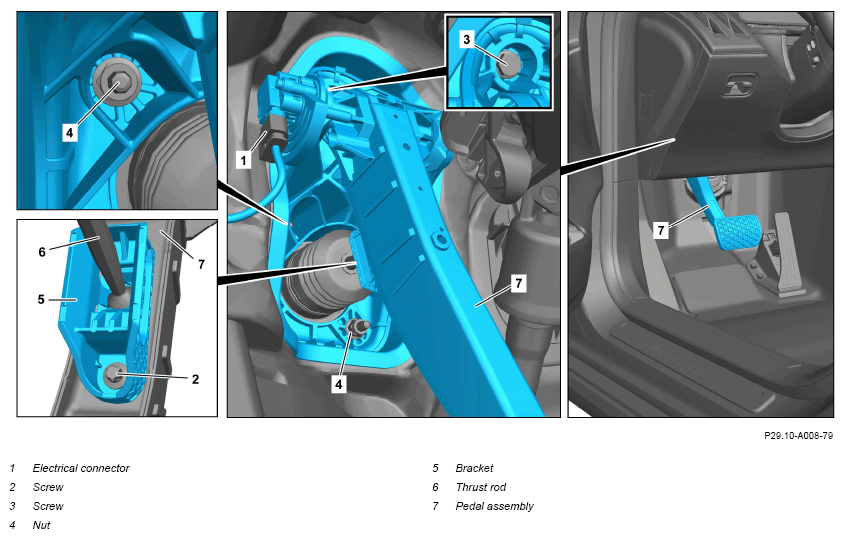

Fig 1: Pedal Assembly Components Location - Model 223

G16190904

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove trim at bottom for instrument panel on driver's side.		AR68.10-P-1501S
2	Disconnect electrical connector (1).
3	Remove bolt (2).
4	Unscrew screw (3) and remove nuts (4).	Screw/nut, break pedal assembly to firewall	*BA29.10-P-1001-02M
5	Carefully push holder (5) with push rod (6) forward and move out of pedal assembly (7).	When doing so, the brake booster must be held in position by a second person. Otherwise the brake lines could get damaged.
6	Release crossmember of instrument panel and pull toward rear slightly.	Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) Do not remove the electrical wiring harness from the crossmember of the instrument panel. The crossmember remains in the vehicle	AR68.10-P-1120S
7	Extend pedal assembly (7) and remove.
8	Install in the reverse order.

PEDALS, BEARING BRACKET

Number	Designation		Model 223
BA29.10-P-1001-02M	Screw/nut, break pedal assembly to firewall	Nm	22
