Bleed Brake System - AR42.10-P-0010S

Model 223, 294, 295, 296, 297

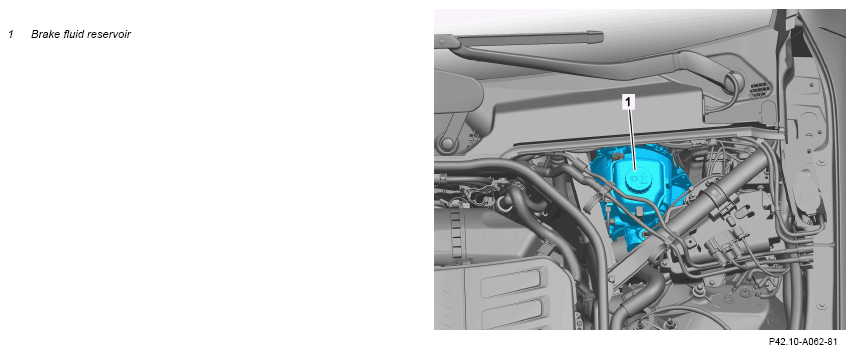

Shown on model 223

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Open hood.	Model 223, 294, 295, 296, 297
		Model 294, 295, 296, 297	AR88.40-P-1000EQS
2	Remove cover over brake fluid reservoir (1).
	Clean
3	Clean area around cap of brake fluid reservoir (1).	Assembly cleaner	*BR00.45-Z-1028-04A
4	Detach cap of brake fluid reservoir (1).
	Bleeding
5	Fill brake fluid reservoir (1) with new brake fluid up to maximum mark.
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
	General brake fluid		BB00.40-P-0330-01A
6	Remove front wheels.		AR40.10-P-1102A
7	Connect filling unit to brake fluid reservoir (1).
	000 588 16 82 00 Filling unit		WS25.00-P-0038B
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
	General brake fluid	Observe manufacturer's operating instructions.	BB00.40-P-0330-01A
8	Switch on filling unit.
9	Raise vehicle.		AR00.60-P-1006A
10	Bleed the system.		AR42.10-P-0010-02FR
	000 588 16 82 00 Filling unit		WS25.00-P-0038B
		Model 223 except code Z07 (B7 armoring on special protection version) Model 223 with code Z07 (B7 armoring on special protection version) Bleed screw to brake caliper	*BA42.10-P-1002-12Y
		Model 294, 295, 296, 297 Bleed screw at brake caliper	*BA42.10-P-1002-10EA
11	Install front wheels.		AR40.10-P-1102A
	Check
12	Lower vehicle.		AR00.60-P-1006A
13	Switch off filling unit and disconnect from brake fluid reservoir (1).
14	Check brake system for leaks.		AR42.10-P-0015S
15	Correct fluid level in brake fluid reservoir (1).
		Model 223	AP42.10-P-4210G
		Model 294, 295, 296, 297	AP42.10-P-4210ES
	Install
16	Seal brake fluid reservoir (1) with cap.
17	Install cover over brake fluid reservoir (1).
18	Close hood.	Model 223, 294, 295, 296, 297
		Model 294, 295, 296, 297	AR88.40-P-1000EQS
