Remove/Install Battery Of 48 V On-Board Electrical System - AR54.10-P-0022S

Model 223 with engine 176

with code B01 (48V technology)

Model 223 with engine 256

with code B01 (48V technology)

Model 223 with engine 656

with code B01 (48V technology)

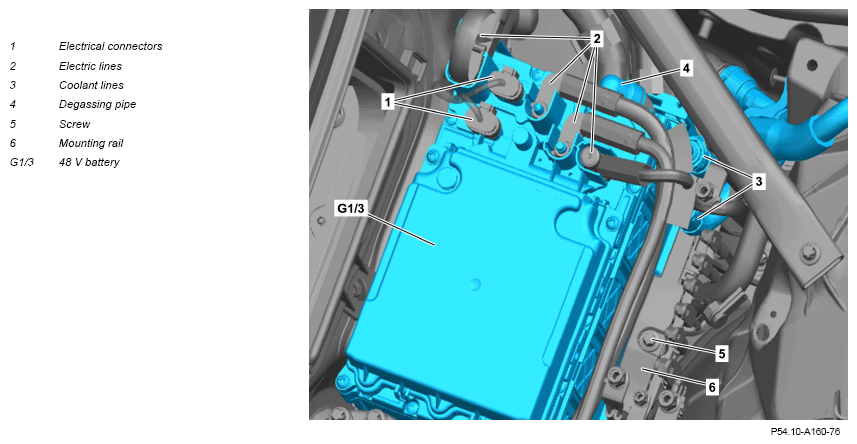

Shown on model 223 with engine 176 with code B01 (48V technology)

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Commission 48 V battery (G1/3).	When replacing 48 V battery (G1/3).
			AD00.00-P-2000-06FR
2	Print out analysis sheet.
	Analysis sheet for 48 V lithium-ion battery, form	Model 223 with engine 256 with code 9U8 (Control code - Major assembly technical further development) with code B01 (48V technology) Model 223 with engine 656 with code B01 (48V technology) with code M30 (Displacement 3.0 liter)	OF54.10-P-3000-15B
	Analysis sheet for 48 V lithium-ion battery, form	Model 223 with engine 176 with code B01 (48V technology) Model 223 with engine 256 with code B01 (48V technology) except code 9U8 (Control code - Major assembly technical further development) Model 223 with engine 656 with code B01 (48V technology) except code M30 (Displacement 3.0 liter)	OF54.10-P-3000-15FR
3	Check for potential hazards of 48 V battery (G1/3).	In the event of smoke generation or fire, notify the fire department. Using 48 V lithium-ion battery analysis sheet form, check whether 48 V battery (G1/3) presents an acute danger.
4	Check housing of 48 V battery (G1/3) for mechanical damage.	Check the non-visible area on the housing after removal of the 48 V battery (G1/3). Using 48 V lithium-ion battery analysis sheet form, check whether damage is present on 48 V battery (G1/3) through which electrolyte is leaking. If yes, ↓ Notify MPC/general representative.
5	Disconnect ground line from 12 V on-board electrical system battery.		AR54.10-P-0051S
		The 48 V on-board electrical system is automatically disconnected from power supply at the latest 10 s after disconnecting the ground line from the 12 V on-board electrical system battery.
6	Remove fuse box for engine compartment 48 V on-board electrical system from 48 V battery (G1/3) and place to one side with connected electric lines.		AR54.15-P-0011S
7	Disconnect electrical connectors (1).
8	Remove electric lines (2) and place to one side.	Nut, positive line/ground line to DC/DC converter control unit/on-board electrical system battery (48 Volt)/voltage dip limiter/current limiting module	*BA54.10-P-1013-01N
9	Disassemble pre-fuse box at front and place to one side with lines connected.		AR54.15-P-1330S
10	Clamp off coolant lines (3).	Clamp	Fig 1
11	Release and detach coolant lines (3).		AR20.20-P-7441-01RQ
		Collect escaping coolant using suitable vessel.
12	Release and detach degassing pipe (4).		AR54.10-P-0022-01FR
13	Unscrew screw (5) and remove with mounting rail (6).	Screw, Battery to battery frame	*BA54.10-P-1007-01N
14	Remove 48 V battery (G1/3).
15	Remove DC/DC converter control unit from 48 V battery (G1/3).	Model 223 with engine 176 with code B01 (48V technology) Model 223 with engine 256 with code B01 (48V technology) except code 9U8 (Control code - Major assembly technical further development) Model 223 with engine 656 with code B01 (48V technology) except code M30 (Displacement 3.0 liter) When replacing 48 V battery (G1/3).	AR54.10-P-1351S
16	Install in the reverse order.
17	Refill coolant and vent engine cooling system.		AR20.00-P-2014SC
		Model 223 with engine 176 with code B01 (48V technology)
		Model 223 with engine 256 with code B01 (48V technology)	AR20.00-P-2014SB
		Model 223 with engine 656.8 with code B01 (48V technology)	AR20.00-P-2014SIM
		Model 223 with engine 656.9 with code B01 (48V technology)	AR20.00-P-1142S

Fig 1: Identifying Clamp (000 589 40 37 00)

Courtesy of MERCEDES-BENZ USA
