Remove/Install Rear Axle Headlamp Range Adjustment Sensor - AR82.10-S-4084E
Model 447
With Code L45 (Multibeam LED with high beam assist plus)
Model 447
With Code LG2 (LED Intelligent Light System)
Model 448.8
With Code L45 (Multibeam LED with high beam assist plus)
Model 448.8
With Code LG2 (LED Intelligent Light System)

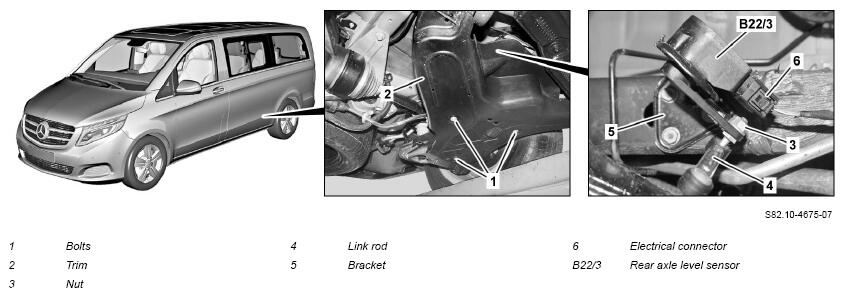

Fig 1: Rear Axle Headlamp Range Adjustment Sensor Components Location - Model 447 With Code L45, LG2
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-S-1000E | |
| 2 | Remove rear center underfloor paneling. | Model 447 with engine 654.9 with code CU4 (Aerodynamics package) | AR61.30-S-1001E |
| 3 | Remove screws (1) and remove trim (2). | AR35.25-S-2200-01E | |
| 4 | Remove nut (3). | ||
| 5 | Place torsion bar linkage (4) to one side. | ||

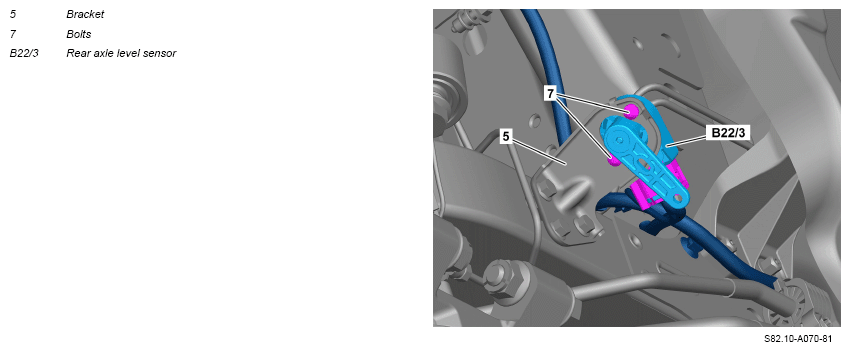

| 6 | Remove screws (7) and remove rear axle level sensor (B22/3) from holder (5). | ||
| 7 | Release and disconnect electrical connector (6). | ||
| 8 | Remove rear axle level sensor (B22/3). | ||
| 9 | Install in the reverse order. | ||
| 10 | Adjust headlamps to zero position using diagnostic system. | When replacing the rear axle level sensor (B22/3). | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 11 | Check headlamp adjustment. | AR82.10-S-1133E |
