Taxi/Rental Vehicle, Function - GF82.25-S-0019TRA
Model 447
with code ZK2 (Taxi version with emergency alarm system) Model 447
with code ZK3 (Taxi version without emergency alarm system) Model 447
with code ZM7 (Rental vehicle package with emergency alarm system)
Model 447
with code ZM8 (Rental vehicle package)

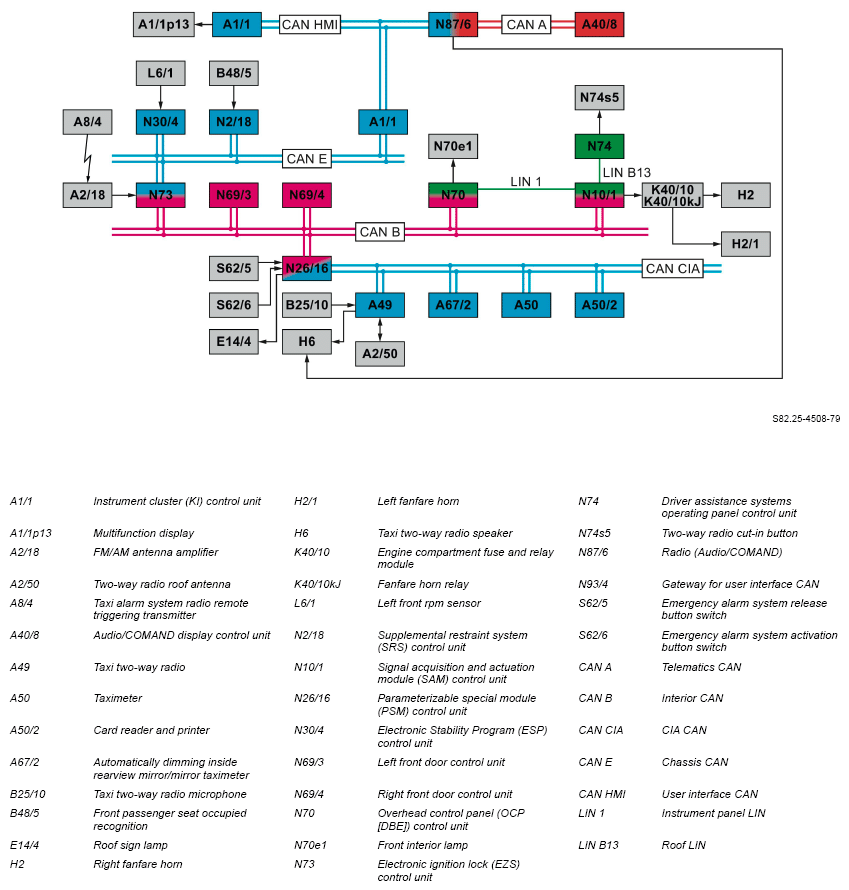

Block diagram of model 447.7

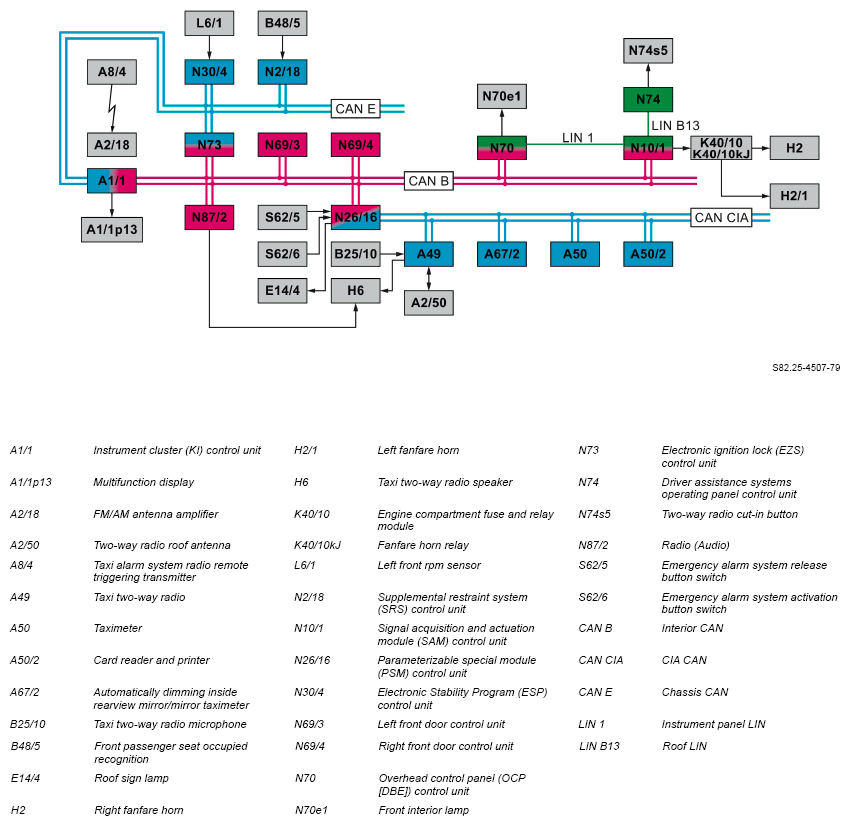

Block diagram of model 447.8
Function requirements, general
- Circuit 30 ON
Taxi/rental vehicle function, general
The taxi/rental car function contains the parameterizable special module (PSM) control unit (N26/16) for controlling and monitoring various functions and a specific electrical wiring harness that makes it possible to integrate the following equipment, among other things:
- Emergency alarm system release button switch (S62/5)
- Emergency alarm system activation button switch (S62/6)
- Taxi two-way radio (A49)
- Taximeter (A50)
- Automatically dimming inside rear-view mirror/mirror taximeter (A67/2)
- Roof sign lamp (E14/4)
- Two-way radio cut-in button (N74s5)
- Taxi radio frequency microphone (B25/10)
- Radio frequency roof antenna (A2/50)
- Taxi two-way radio speaker (H6)
The individual functions are enabled via the diagnostic unit.
The taxi/rental vehicle function consists of the following subfunctions, which are described in separate documents:
- Engine run-on
- Emergency alarm, function
- Mirror taximeter/mirror odometer, function
- Two-way radio hands-free system function
- Two-way radio integration, function
| Engine run-on function | with CODE MW1 (Engine run-on control (MWS)) | GF07.10-S-2684TRA | |
| Emergency alarm function | With code ZK2 (Taxi version with emergency alarm system) or with code ZM7 (Rental vehicle package with emergency alarm system) | GF82.25-S-2011TRA | |
| Mirror taximeter/mirror odometer function | With code ED6 (Taximeter in inside rearview mirror) | GF82.25-S-2012TRA | |
| Two-way radio handsfree system function | GF82.25-S-2013TRA | ||
| Two-way radio integration function | GF82.25-S-2014TRA | ||
| Overview of system components for taxi/rental vehicle | GF82.25-S-9890TRA |
