Overview Of System Components For Taxi/Rental Vehicle - GF82.25-S-9890TRA
Model 447
with code ZK2 (Taxi version with emergency alarm system)
Model 447
with code ZK3 (Taxi version without emergency alarm system)
Model 447
with code ZM7 (Rental vehicle package with emergency alarm system)
Model 447
with code ZM8 (Rental vehicle package)

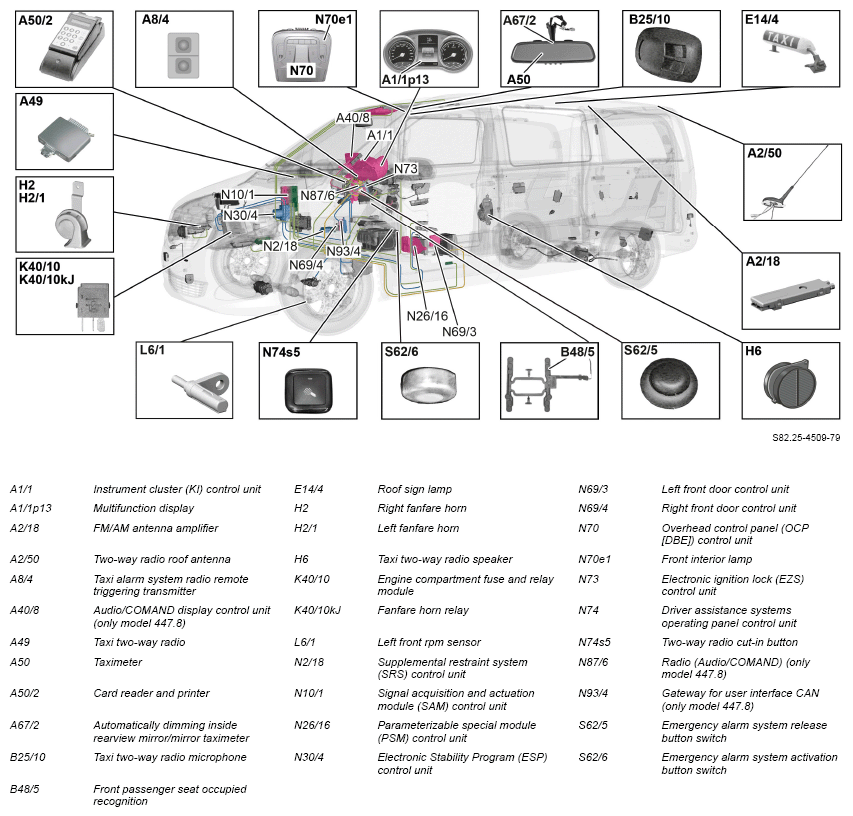

Overview of system components, shown on model 447.8
Model 447.7
On model 447.7, there is no gateway for the user interface CAN (N93/4) and the radio (Audio/COMAND) (N87/6) is replaced by the radio (Audio) (N87/2).

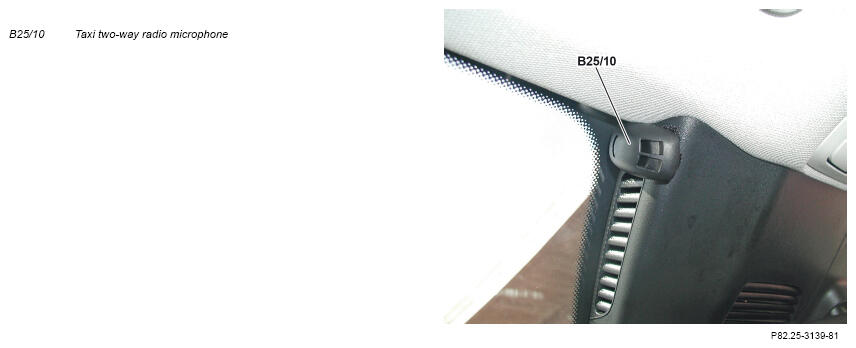

Taxi radio frequency microphone (B25/10)
The taxi radio frequency microphone (B25/10) is located on the windshield adjacent to the inside rearview mirror.

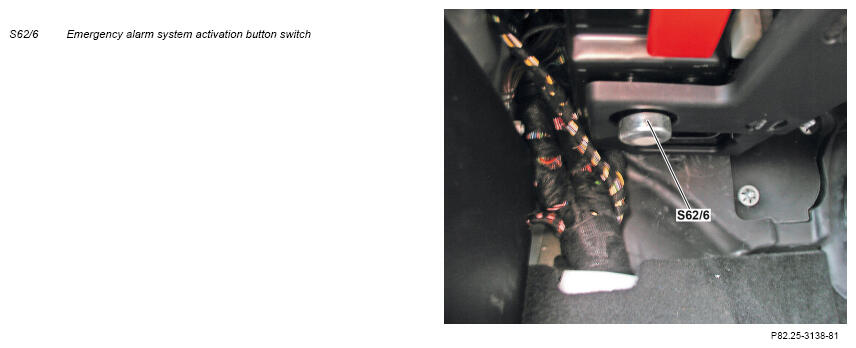

Emergency alarm system activation button switch (S62/6)
The emergency alarm system activation button switch (S62/6) is located in the driver footwell.

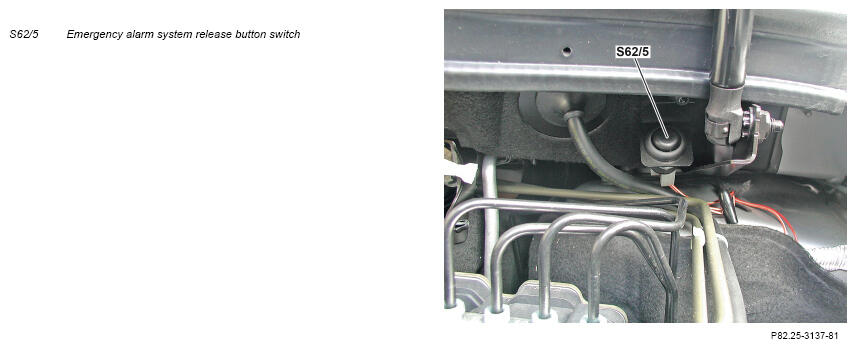

Emergency alarm system release button switch (S62/5)
The emergency alarm system release button switch (S62/5) is located in the engine compartment at the firewall on the left in the direction of travel.

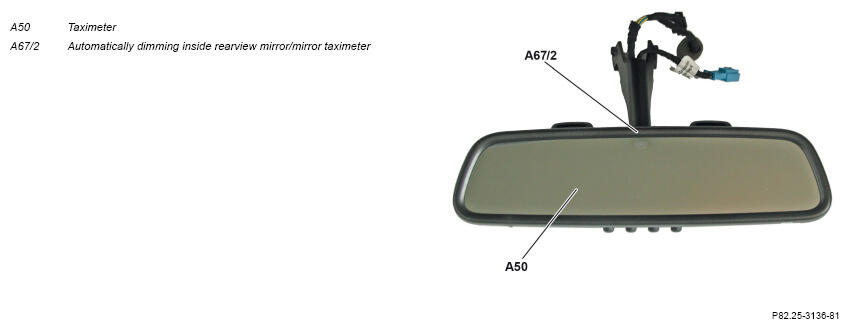

Taximeter (A50) and automatically dimming inside rearview mirror/mirror taximeter (A67/2)
The automatically dimming inside rearview mirror/mirror taximeter (A67/2) is located in the center on the windshield. The fare and the travel distance are shown in the taximeter (A50) (mirror glass).
| Instrument cluster (IC) control unit, component description | Vehicles without code XM0 (Facelift) | GF54.30-S-6004TRA | |
| Vehicles with CODE XM0 (Facelift) A1/1 | GF54.30-S-6004TRF | ||
| Audio/COMAND display control unit, component description | Model 447.8 A40/8 | GF54.30-S-6151TRA | |
| Supplemental restraint system control unit, component description | Model 447 with code ZK2 (Taxi version with emergency alarm system) except code XM7 (MOPF II) Model 447 with code ZK3 (Taxi version without emergency alarm system) except code XM7 (MOPF II) Model 447 with code ZM7 (Rental vehicle package with emergency alarm system) except code XM7 (MOPF II) Model 447 with code ZM8 (Rental vehicle package) except code XM7 (MOPF II) N2/18 |
GF91.60-S-4080TRA | |
| SAM control unit, component description | N10/1 | GF54.21-S-4157TRA | |
| Parameterizable special module (PSM) control unit component description | With code ED5 (Parameterizable special module) N26/16 | GF54.21-S-5005TRA | |
| Electronic Stability Program (ESP(R)) control unit, component description | Model 447 with code ZK2 (Taxi version with emergency alarm system) with code ZK3 (Taxi version without emergency alarm system) with code ZM7 (Rental vehicle package with emergency alarm system) with code ZM8 (Rental vehicle package) except code XM7 (MOPF II) N30/4 |
GF42.45-S-3005TRA | |
| Component description for left front door control unit | Model 447 except code XM7 (Facelift II) N69/3 | GF72.29-S-6001TRA | |
| Component description for right front door control unit | Model 447 except code XM7 (Facelift II) N69/4 | GF72.29-S-6009TRA | |
| Component description for overhead control panel control unit | Model 447 with code ZK2 (Taxi version with emergency alarm system) except code XM7 (MOPF II) Model 447 with code ZK3 (Taxi version without emergency alarm system) except code XM7 (MOPF II) Model 447 with code ZM7 (Rental vehicle package with emergency alarm system) except code XM7 (MOPF II) Model 447 with code ZM8 (Rental vehicle package) except code XM7 (MOPF II) N70 |
GF82.20-S-5216TRA | |
| Component description for the electronic ignition lock control unit | Vehicles without code XM0 (Facelift) | GF80.57-S-6001TRA | |
| Vehicles with CODE XM0 (Facelift) N73 | GF80.57-S-6001TRF | ||
| Component description for the radio | Model 447.6/7 With CODE EN6 (Audio 10) or with CODE EN7 (Audio 15) N87/2 |
GF82.60-S-3122TRA | |
| Model 447.8 With code EA1 (Audio 20 CD) or with code EJ8 (Audio 20 USB) N87/6 |
GF82.60-S-3122TRB | ||
| Model 447.8 With code EA2 (COMAND Online with 6-disk DVD changer) or with code EJ9 (COMAND Online) N87/6 |
GF82.60-S-3122TRC | ||
| Gateway for user interface CAN, component description | Model 447.8 N93/4 |
GF54.21-S-2124TRA | |
| Table of contents for function description for taxi/rental vehicle | GF82.25-S-0890TRA |
