Remove/Install Parking Brake Pedal Assembly - AR42.20-S-0510E
Model 447.6/7, 448.7
MODIFICATION NOTES
| 09.05.2023 | Method extended. | Operation step 17. |

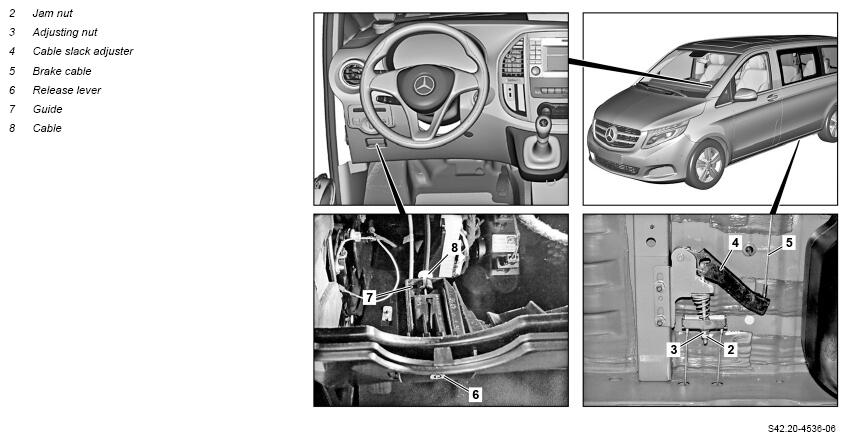

Fig 1: Parking Brake Pedal Assembly Components Location - Model 447.6/7 (Shown On Model 447.7 With Engine 654.9)
Shown on model 447.7 with engine 654.9
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447.6/7 with engine 780 |
AS00.00-Z-0035-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447.6/7 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Release parking brake. | ||
| 2 | Raise vehicle. | AR00.60-S-1000E | |
| 3 | Remove rear center underfloor paneling. | Model 447.6/7 with engine 654.9 with code CU4 (Aerodynamics package) |
AR61.30-S-1001E |
| 4 | Unscrew counternut (2). | If counternut (2) is installed. | |
| 5 | Release adjusting nut (3) at cable slack adjuster (4). | ||
| 6 | Remove brake cable (5) from cable slack adjuster (4). | ||
| 7 | Lower vehicle. | ||
| 8 | Remove trim in driver footwell. | AR68.30-S-4020E | |
| 9 | Remove cover under instrument panel on driver's side. | Model 447.6/7 with code LC7 (Illumination for front footwell) Model 448.7 |
AR68.10-S-1500E |
| 10 | Remove rotary light switch. | AR54.25-S-3250E | |

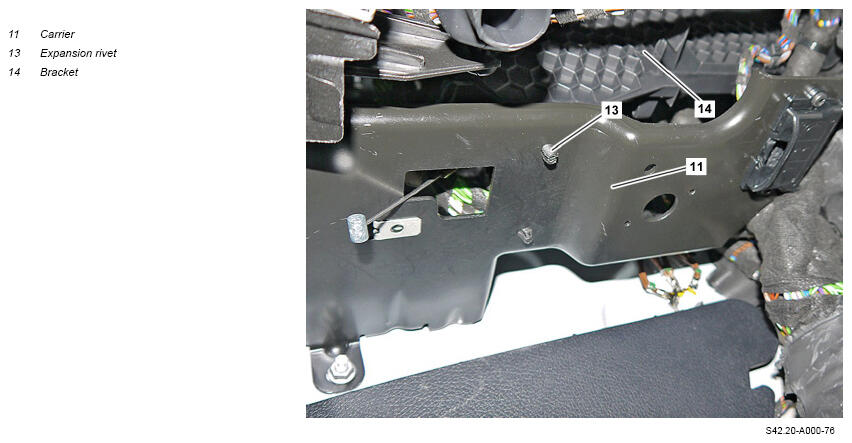

| 11 | Remove expansion rivet (13) and swivel holder (14) out of working area. | Model 447.6 with engine 780.701/705 Model 447.6/7 with engine 654.9 Model 447.7 with engine 780.701/702 |
|
| 12 | Pull cable (8) toward rear and unhook from guide (7) of release lever (6). | ||
| 13 | Pull out release lever (6) and remove cable (8). | ||
| 14 | Disconnect electrical connections (9). | ||
| 15 | Remove screws (10). | *BA42.20-Z-1001-01KOE | |
| 16 | Swivel carrier (11) out of working area. | ||
| Check | |||

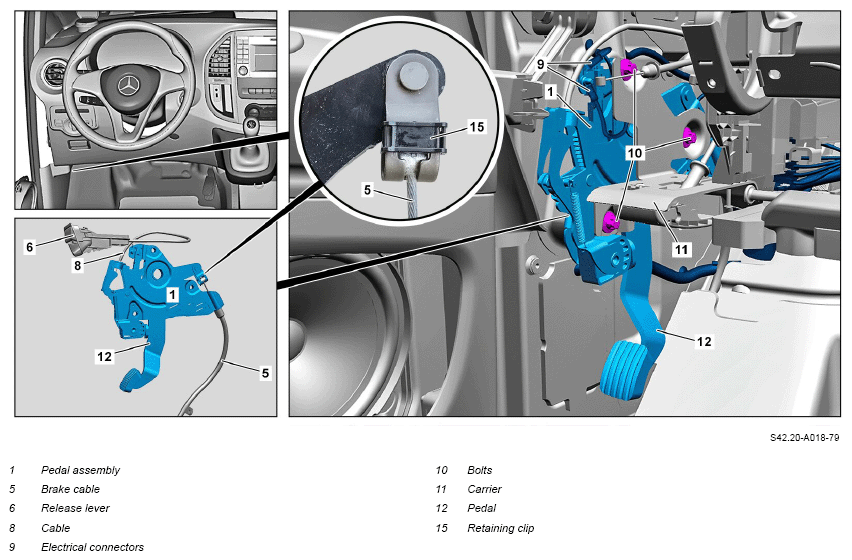

| 17 | Check whether securing clip (15) is installed. | If securing clip (15) is installed: ↓ Remove and dispose of securing clip (15). If securing clip (15) is not installed: ↓ Retrofit securing clip (15) during installation. |
|
| 18 | Unhook brake cable (5) from pedal (12). | ||
| 19 | Unclip brake cable (5) from pedal assembly (1) and remove pedal assembly (1). | Fig 2 | |
| 20 | Remove cable (8) from pedal assembly (1). | Only when replacing the pedal assembly (1). | |
| 21 | Install in the reverse order. | ||
| Check | |||
| 22 | Check adjustment of brake cable (5). | AR42.20-S-0540-01E | |
| 000 588 32 21 00 Roller brake test stand | WS42.00-P-0116B | ||
If the setting of the brake cable (5) is incorrect, ↓ Correct adjustment of brake cable (5). |
*BE42.20-Z-1003-01KOB |
CHECK VALUES FOR PARKING BRAKE
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BE42.20-Z-1003-01KOB | Force on parking brake pedal at first notch | N | 100...120 |
PARKING BRAKE
| Number | Designation | Model 447.6 Model 447.7 Model 447.8 with engine 274, 651, 654 Model 448 | |
|---|---|---|---|
| BA42.20-Z-1001-01KOE | Bolt, parking brake to bracket on A-pillar | Nm | 23 |
