Drill Hole For 12 V Socket In Rear Side Trim In Rear Passenger Compartment - AR68.30-S-1213-01E

Model447.7, 448.7

with code V23 (Interior trim, premium version)

Model447.7, 448.7 with code V23 (Interior trim, premium version) Model447.8

except code ZK7 (Equipment line MARCO POLO)

Model448.8

Courtesy of MERCEDES-BENZ USA

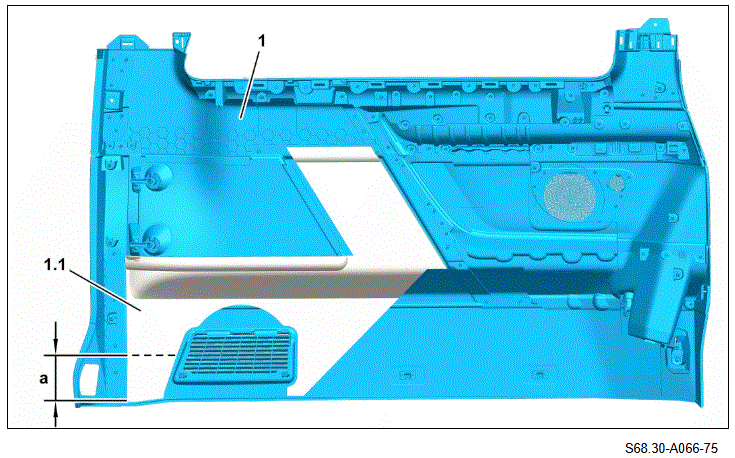

1. Cut acoustic fabric (1.1) by dimension (a) on side trim (1) as shown.

   Dimension (a): 100 mm

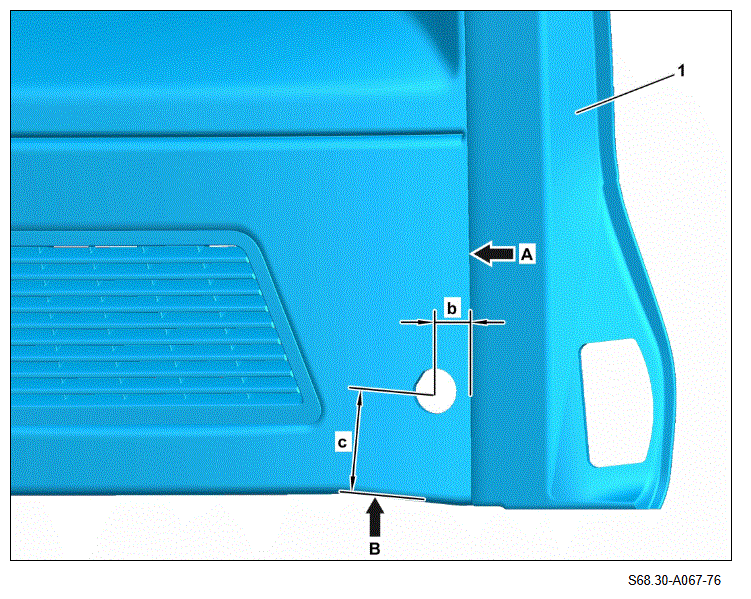

2. Mark hole for opening of 12 V socket on side trim (1).



   The reference point for dimension (c) is lower edge (arrow B) of side trim (1).

   Dimension (b): 23.5 mm Dimension (c): 69.5 mm

3. Drill hole for opening of 12 V socket in side trim (1).

   Hole diameter: 28 mm

Courtesy of MERCEDES-BENZ USA
