Remove/Install Front Grille - AR88.00-S-2115E
Model 447, 448

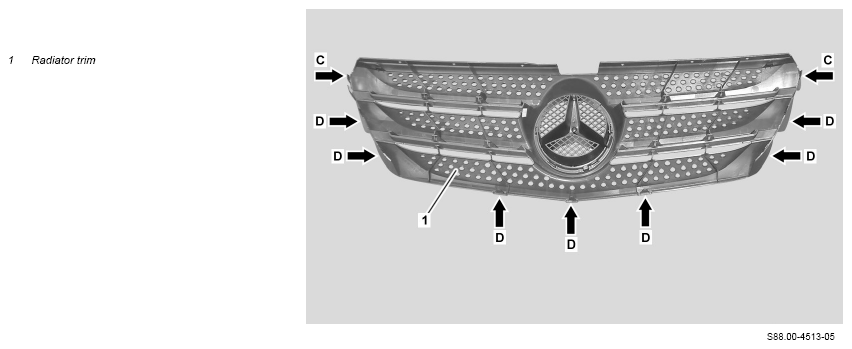

Shown on Model 447.8
Shown on Model 447.8
Shown on Model 447.7 with CODE CM2 (Bumper and detachable parts painted to match color of car)
| Remove/install | |||

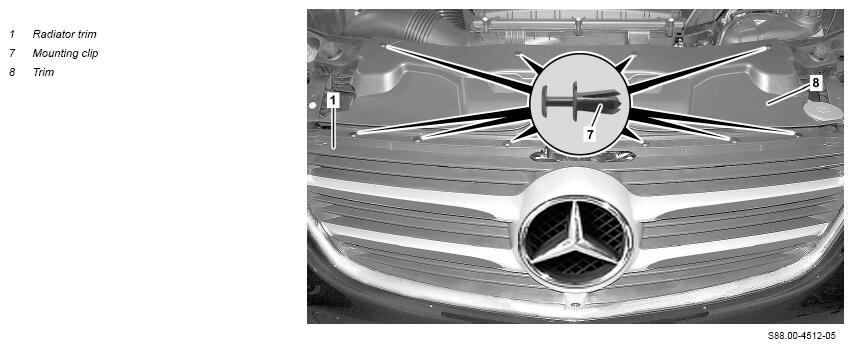

| 1 | Remove the retaining clips (7) and remove the trim (8). | If the retaining clips (7) are damaged, ↓ Replace relevant retaining clip (7). |
|

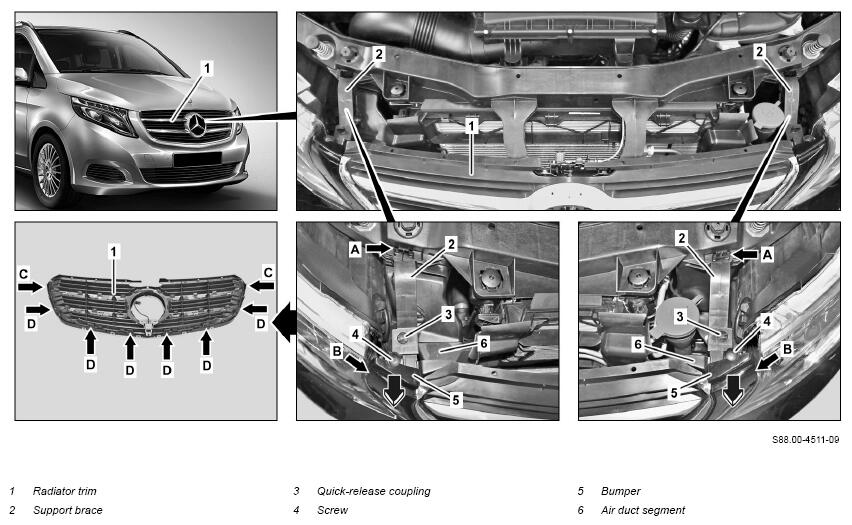

| 2 | Open the quick-release fasteners (3), unlock the catch hooks (arrow A) and remove the left and right support (2). | ||
| 3 | Remove screws (4) from the bumper (5). | Model 447.8, 448.8 | |
| 4 | Pull the bumper (5) forward slightly at the top until the catch hooks (arrow C) are accessible. | ||
| 5 | Move the long wedge into the gap (arrow B) from outside between the air guide segment (6) and bumper (5) and unlock the catch hook (arrows C) on the radiator grille (1) | Fig 1 | |
| 6 | Unclip the catch hooks (arrow D) using a suitable tool. | ||
| 7.1 | Remove radiator grille (1). Model 447, 448 except code JS1 (360° camera (SURROUND VIEW)) | ||
| 7.2 | Disconnect the electrical connection for the 360° camera and remove the radiator grille (1). | Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) |
AR54.30-S-3001E |
| 8 | Remove the 360° camera. | If radiator grille (1) is replaced. Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) |
AR54.30-S-3001E |
| 9 | Remove Mercedes star. | When replacing radiator grille (1). Model 447.6/7 with code XM0 (Facelift) with code ZU7 (National version for Canada) Model 447.6/7 with code XM0 (Facelift) with code ZU8 (National version for USA) Model 447 except code XM0 (Facelift) Model 448 except code XM0 (Facelift) |
AR88.40-S-4050E |
| Model 447 with code XM0 (Facelift) except code ZU7 (National version for Canada) except code ZU8 (National version for USA) Model 448 with code XM0 (Facelift) |
AR88.40-S-4053EA | ||
| 10 | Install in the reverse order. | ||
| 11 | Calibrate front 360° camera with vehicle diagnosis system. | Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW)) | |
| AD00.00-S-2000-04E |
