Remove/Install Mercedes Star - AR88.40-S-4053EA

Model 447, 448 with code XM7 (MOPF II)

Model 447.6/7 with code XM0 (Facelift) except code ZU7 (National version for Canada) except code ZU8 (National version for USA)

Model 447.8 with code XM0 (Facelift)

Model 448 with code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

Shown on Model 447.8 with code ET4 (Active Distance Assist DISTRONIC) and with code JS1 (360° camera)) except code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

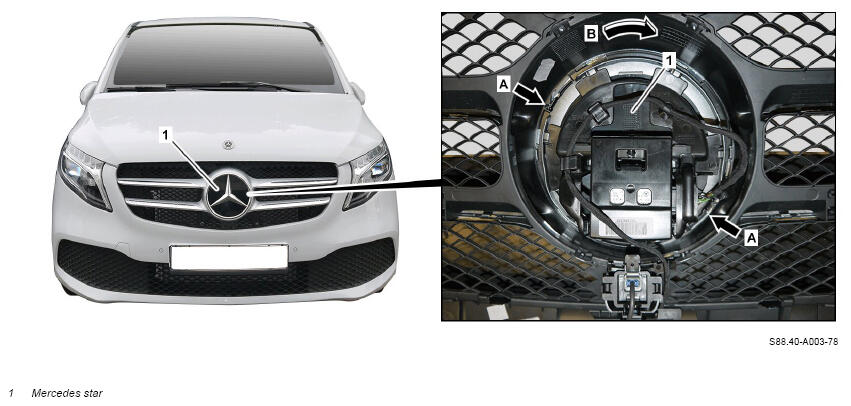

Shown on Model 447.8 with code XM7 (facelift II) and with code BA3 (Active Brake Assist)

	Remove/install
1.1	Remove front bumper.	Model 447, 448 except code XM7 (facelift II)	AR88.20-S-2000E
1.2	Remove radiator grille.	Model 447, 448 with code XM7 (MOPF II)	AR88.00-S-2115E
2	Release the Mercedes star (1) on the catch hooks (arrow A).
3	Turn the Mercedes star (1) in the direction of the arrow (arrow B) and remove.	Ensure that the Mercedes star (1) is properly aligned. The Mercedes star (1) has the word "TOP" on its rear; this must be located at the top when the Mercedes star is fitted.
4	Install in the reverse order.
