Remove/Install Mercedes Star - AR88.40-S-4050E

Model 447.6/7 with code XM0 (Facelift) with code ZU7 (National version for Canada)

Model 447.6/7 with code XM0 (Facelift) with code ZU8 (National version for USA)

Model 447 except code XM0 (Facelift)

Model 448 except code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

	Remove/install

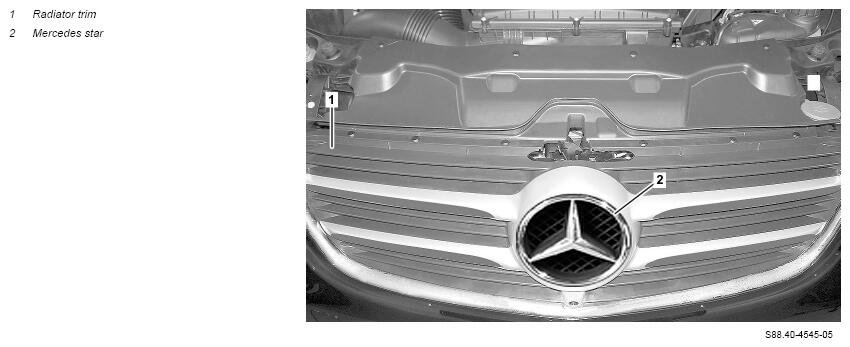

1	Remove radiator grille (1)		AR88.00-S-2115E
2	Lay radiator grille (1) down on suitable subbase
3	Unclip Mercedes star (2)
4	Install in the reverse order
