Remove/Install Rear-End Door Lock - AR72.20-S-4055E
Model 447.6/7
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

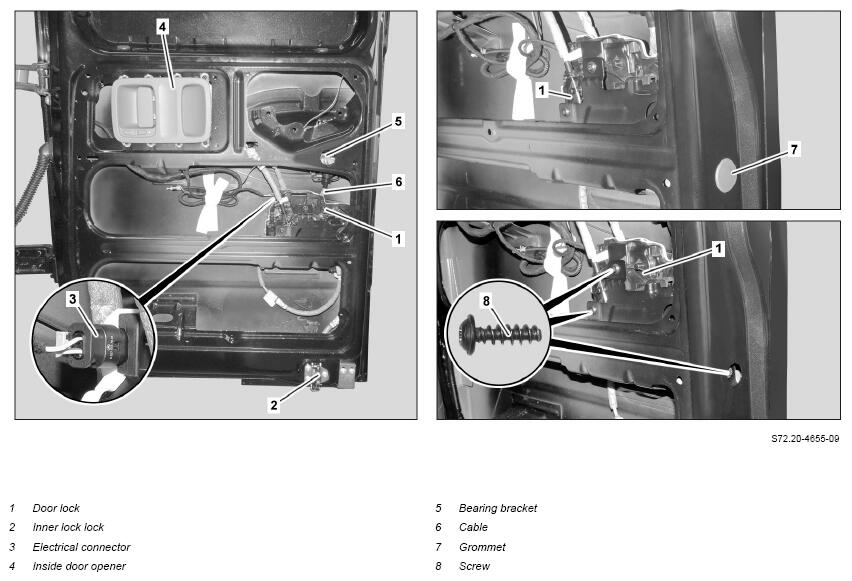

| 1 | Remove inside door opener (4) on rear-end door | Model 447.6/7 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) |
AR72.20-S-4075E |
| 2 | Remove door foil from rear-end door | AR72.20-S-4100E | |
| 3 | Disconnect electrical connector (3) | ||
| 4 | Remove cable (6) from bearing bracket (5) | ||
| 5 | Remove grommet (7) | ||
| 6 | Unscrew bolts (8) and detach door lock (1) on rear-end door | ||
| 7 | remove lower inner lock (2) on right | AR72.40-S-4437E | |
| 8 | Expose right inner upper lock and remove cable | AR72.40-S-4434E | |
| 9 | Expose all cables on door lock (1) on rear-end door | ||
| 10 | Guide door lock (1) out of rear-end door and remove | ||
| 11 | Remove all cables from door lock (1) | When replacing door lock (1). |
|
| 12 | Install in the reverse order | ||
| Check | |||
| 13 | Close rotary tumbler on inner lower lock (2) and inner upper lock with suitable tool | ||
| 14 | Actuate outer door handle and check whether inner lower lock (2) and inner upper lock open and arrest correctly | ||
| 15 | Close rotary tumbler on right inner lower lock (2) and right inner upper lock with suitable tool | ||
| 16 | Actuate inside door opener (4) and check whether inner lower lock (2) and inner upper lock open and arrest correctly | ||
| 17 | Check whether lower inner lock (2) and upper inner lock are seated correctly in the lock striker | If necessary: ↓ Adjust right lower inner lock (2) and upper right inner lock. Adjust right inner lower lock (2) |
AR72.40-S-4437E |
| Adjust right upper inner lock | AR72.40-S-4434E |
