Remove/Install Inside Door Opener On Rear-End Door - AR72.20-S-4075E
Model 447.6/7
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Model 447.6/7
With Code W54 (2-wing rear-end door, 270 degrees)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

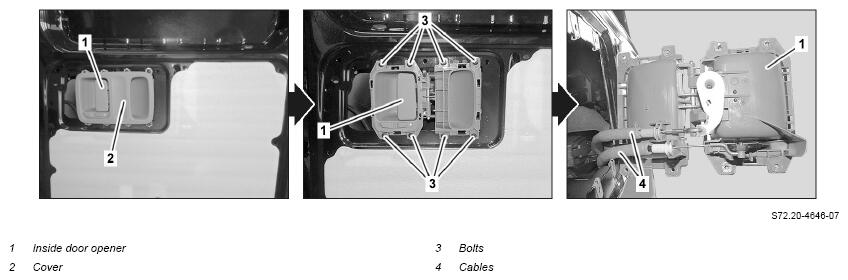

| 1 | Remove door trim from right rear-end door | AR72.20-S-6615E | |
| 2 | Unclip retaining tabs on cover (2) with suitable tool in sequence and remove cover (2) | ||
| 3 | Remove screws/bolts (3) | ||
| 4 | Unhook cables (4) and remove inside door opener (1) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check inside door opener (1) for proper function |
