Remove/Install Inner Lock Of Right Bottom Rear-End Door - AR72.40-S-4437E
Model 447.6/7

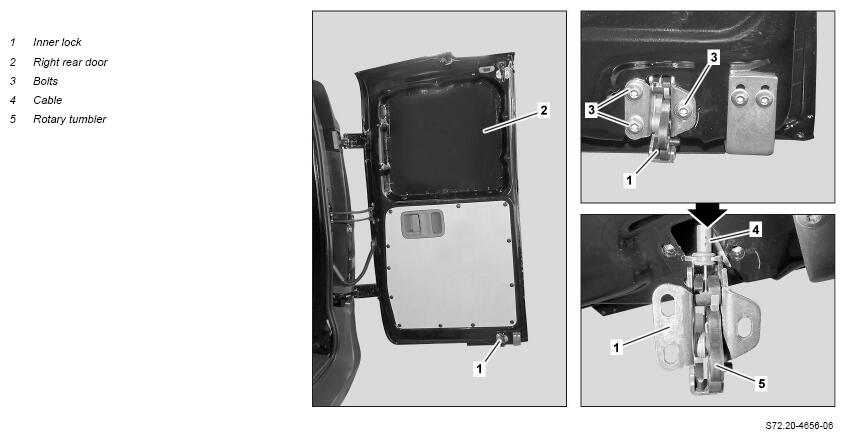

Shown On model 447.6 With Code W50 (Two-wing rear-end door, 180 degrees without window)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Remove cover from rear-end door trim (2) | Model 447.7 with code V23 (Interior trim, premium version) except code ZU7 (National version for Canada) except code ZU8 (National version for USA) | AR72.20-S-6615-01E |
| 2 | Mark installation position of inner lock (1) | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove cable (4) from inner lock (1) | ||
| Install | |||
| 5 | Install cable (4) on inner lock (1) | ||
| 6 | Tighten inner lock (1) with bolts (3) | ||
| Check | |||
| 7 | Close rotary tumbler (5) on inner lock (1) with suitable tool | ||
| 8 | Actuate outer door handle or inside door handle and ensure that inner lock (1) opens and arrests correctly | ||
| 9 | Check whether inner lock (1) is seated correctly in lock striker and tighten bolts (3) | If it is necessary to correct the seat of the inner lock (1) in the lock striker: ↓ Adjust inner lock (1) in relation to lock striker. |
*BA72.20-Z-1012-01KOJ |
| Install | |||
| 10 | Install cover on rear-end door trim (2) | Model 447.7 with code V23 (Interior trim, premium version) except code ZU7 (National version for Canada) except code ZU8 (National version for USA) | AR72.20-S-6615-01E |
REAR-END DOOR
| Number | Designation | Model 447.6/7 with code W54 | Model 447.6/7 with code W50 | |
|---|---|---|---|---|
| BA72.20-Z-1012-01KOJ | Bolt, inner lock to rear-end door | Nm | 6 | 6 |
