Remove/Install Gateway Powertrain Control Unit - AR54.21-S-0026E
Model 447, 448
With Code XM0 (Facelift)
Except Code XM7 (MOPF II)
Shown on model 447

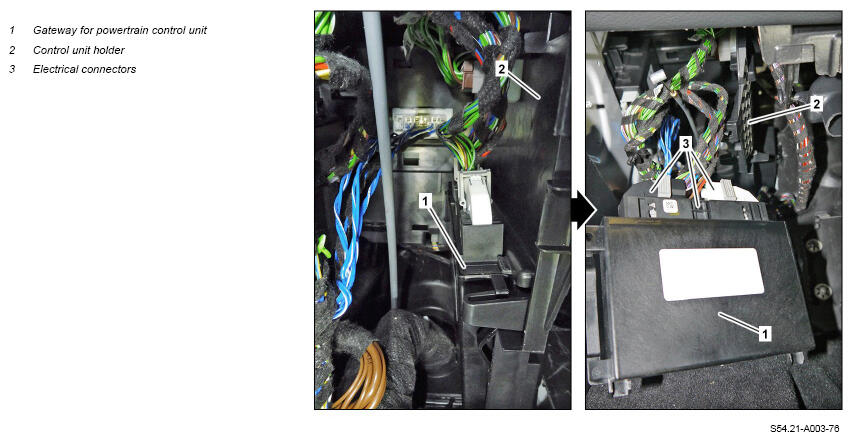

Fig 1: Gateway Powertrain Control Unit Components Location - Model 447 With Code XM0, Except Code XM7
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Connect diagnostic system and commission powertrain gateway control unit (1). | If the powertrain control unit gateway (1) is replaced. | |
| AD00.00-S-2000-04E | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3.1 | Remove holder for hood cable release handle. | Model 447.### 1#, 448 | AR88.40-S-0002E |
| 3.2 | Remove trim in footwell (right). | Model 447.### 2# | AR68.30-S-4030E |
| 4 | Remove cover below instrument panel at right. | Model 447.6##/7## 2# with code LC7 (Front footwell illumination), model 447.8## 2# | AR68.10-S-1520E |
| 5 | Remove 360° camera control unit and place to one side. | Model 447, 448.8 with code JS1 (360° camera) |
AR54.30-S-3004E |
| 6 | Unclip powertrain control unit gateway (1) from control units holder (2). | ||
| 7 | Disconnect electrical connectors (3) and remove powertrain control unit gateway (1). | ||
| 8 | Install in the reverse order. |
