Remove/Install 360° Camera Control Unit - AR54.30-S-3004E

Model 447, 448.8

With Code JB6 (Parking package with 360-degree camera)

Model 447, 448.8

With Code JS1 (360° camera (SURROUND VIEW))

Model 447

With Code EZ6 (Parking package with 360-degree camera)

Courtesy of MERCEDES-BENZ USA

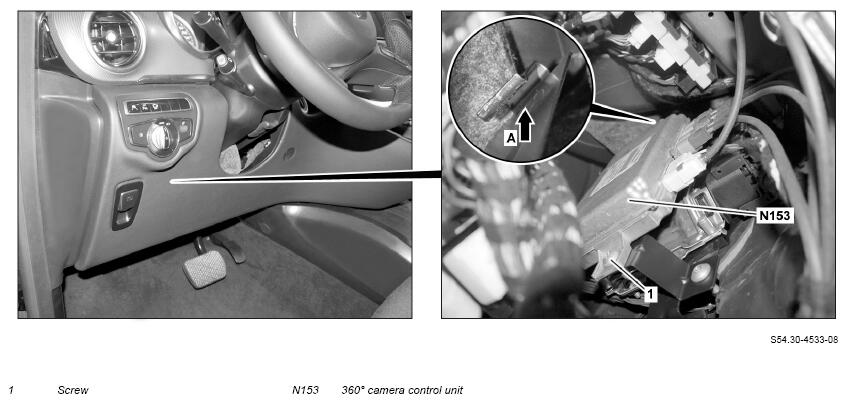

Shown With Code JS1 (360° camera), Except Code XM0 (Facelift)

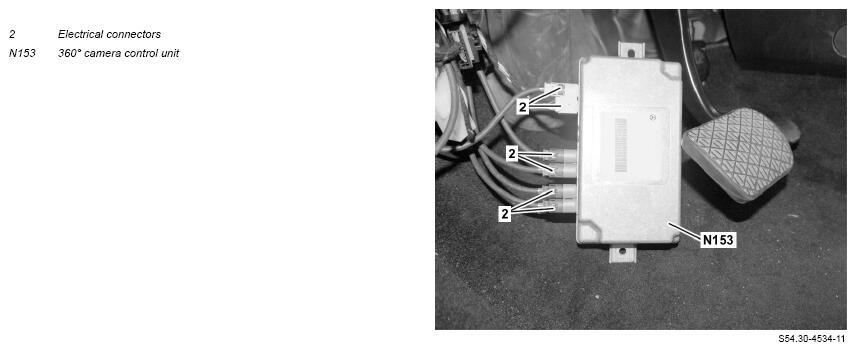

Shown With Code JS1 (360° camera), Except Code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

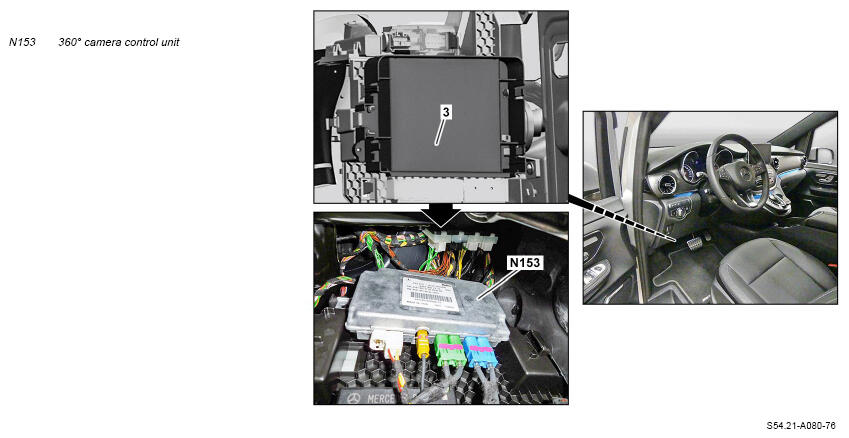

Shown With Code JS1 (360° camera) and With Code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

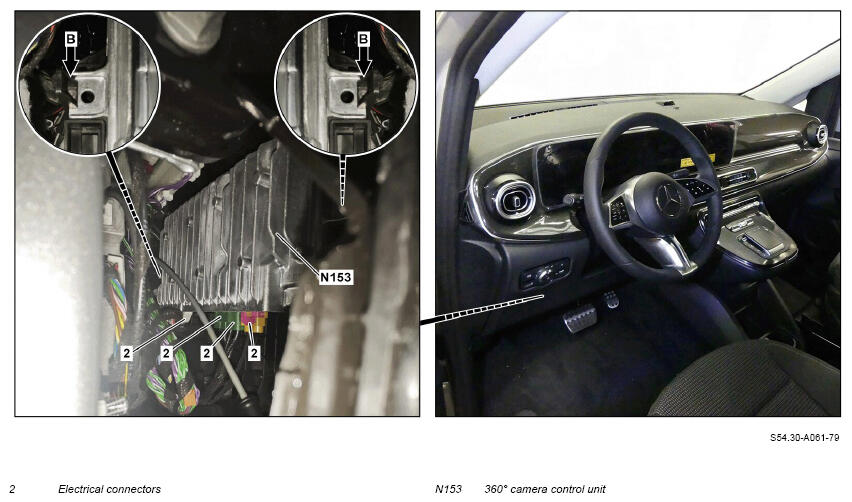

Shown With Code JB6 (Parking Package with 360° camera) and With Code XM7 (Facelift II)

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition.	Detach transmitter key and store outside of transmission range (at least 2 m).
2	Remove cover at left under the instrument panel.	Model 447.6/7 with code LC7 (Front footwell illumination), model 447.8, 448.8	AR68.10-S-1500E
3.1	Pull out 360° camera control unit (N153) downwards with connected electric lines.	Model 447, 448.8 with code JB6 (Parking package with 360-degree camera) Model 447, 448.8 with code JS1 (360° camera (SURROUND VIEW)) except code XM0 (Facelift) Model 447 with code EZ6 (Parking package with 360-degree camera) Model 447, 448.8 with code JS1 (360° camera (SURROUND VIEW)) except code XM0 (Facelift) To do this, remove screw (1). Model 447, 448.8 with code JB6 (Parking package with 360-degree camera) Model 447 with code EZ6 (Parking package with 360-degree camera) To do this, release catch hooks (arrows B). Model 447, 448.8 with code JS1 (360° camera (SURROUND VIEW)) except code XM0 (Facelift) Installation:  Ensure that 360° camera control unit (N153) is seated correctly in the upper guide (arrow A). Model 447, 448.8 with code JB6 (Parking package with 360-degree camera) Model 447 with code EZ6 (Parking package with 360-degree camera) Installation:  Ensure that catch hooks of 360° camera control unit (N153) are seated correctly (arrows B).
3.2	Remove control unit holder and pull out 360° camera control unit (N153) downwards with connected electric lines.	Model 447.8 with code JS1 (360° camera (SURROUND VIEW)) with code XM0 (Facelift) except code XM7 (MOPF II) To do so, remove control unit holder far enough until 360° camera control unit (N153) can be pulled out in downward direction with electric lines still connected.	AR54.21-S-0049E
4	Pull out 360° camera control unit (N153) far enough until electrical connectors (2) are accessible.	Model 447, 448.8 with code JS1 (360° camera (SURROUND VIEW)) with code XM0 (Facelift) except code XM7 (MOPF II)
5	Remove 360° camera control unit (N153).	For this purpose disconnect the electrical connectors (2). The arrangement of the electrical connectors (2) varies depending on the equipment installed.
6	Install in the reverse order.
7	Commission 360° camera control unit (N153).	If the 360° camera control unit (N153) was replaced.
			AD00.00-S-2000-04E
8	Calibrate all the cameras in the 360° camera system using the diagnostic system.	If the 360° camera control unit (N153) was replaced.
			AD00.00-S-2000-04E
