Remove/Install Bracket For Hood Cable Release Handle - AR88.40-S-0002E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

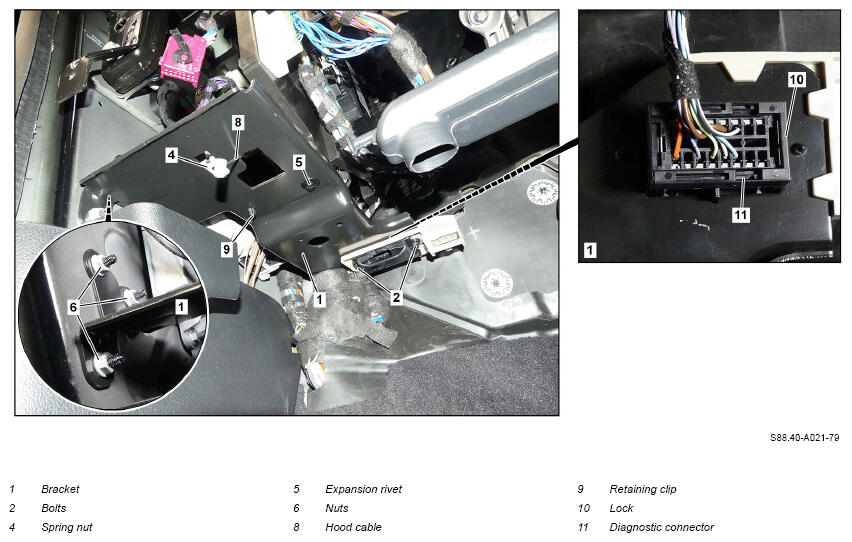

Shown on Model 447.8 with code XM7 (facelift II) with instrument panel removed

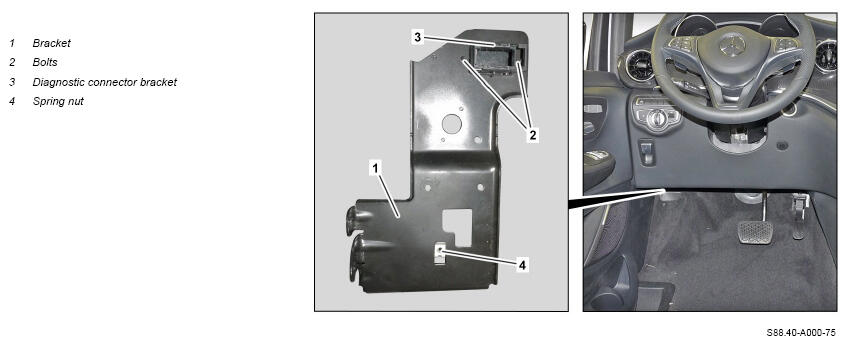

Shown on Model 447 on the removed holder (1) except code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

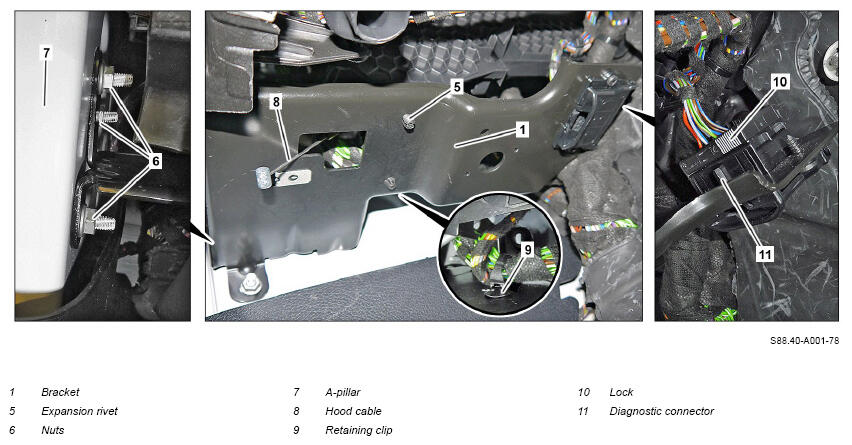

Shown on Model 447 except code XM7 (MOPF II)

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove trim at side of instrument panel on driver's side.		AR68.10-S-1503E
2	Remove cover below instrument panel on driver's side.	Model 447.6/7 with code LC7 (Illumination for front footwell) Model 447.8, 448	AR68.10-S-1500E
3	Remove release handle of hood cable (8).		AR88.40-S-3150E
4	Remove expansion rivet (5).	Check the expansion rivet (5) for damage.
		Clip remover If damage is present: ↓ replace expansion rivet (5).	Fig 1
5	Remove nuts (6).
6	Remove the holder (1) from the A-pillar (7).	To do so, guide the hood cable (8) through the holder (1).
7	Remove retaining clip (9).	Check retaining clip (9) for damage.
		Clip remover If damage is present: ↓ Replace retaining clip (9).	Fig 1
8	Remove the diagnostics connection (11) from the holder (1).	To do so, release the lock (10).
9	Remove holder (1).	To do so, guide the diagnostics connection (11) up and out of the holder (1).
10	Remove the diagnostics connection holder (3) from the holder (1).	If bracket (1) is replaced. To do so, remove screws (2).
11	Remove spring nut (4) from bracket (1).	If bracket (1) is replaced.
12	Install in the reverse order.

Fig 1: Identifying Clip Remover (452 589 01 63 00)
