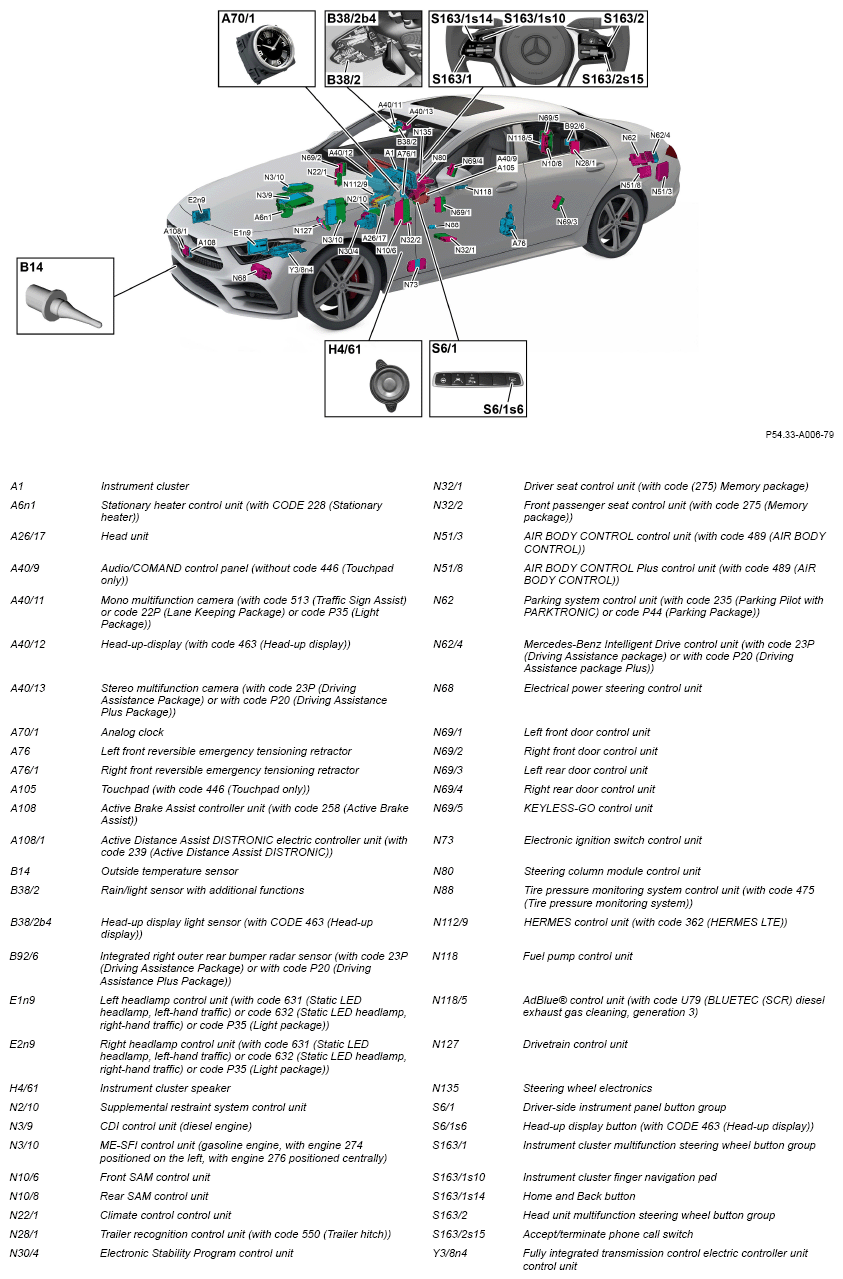

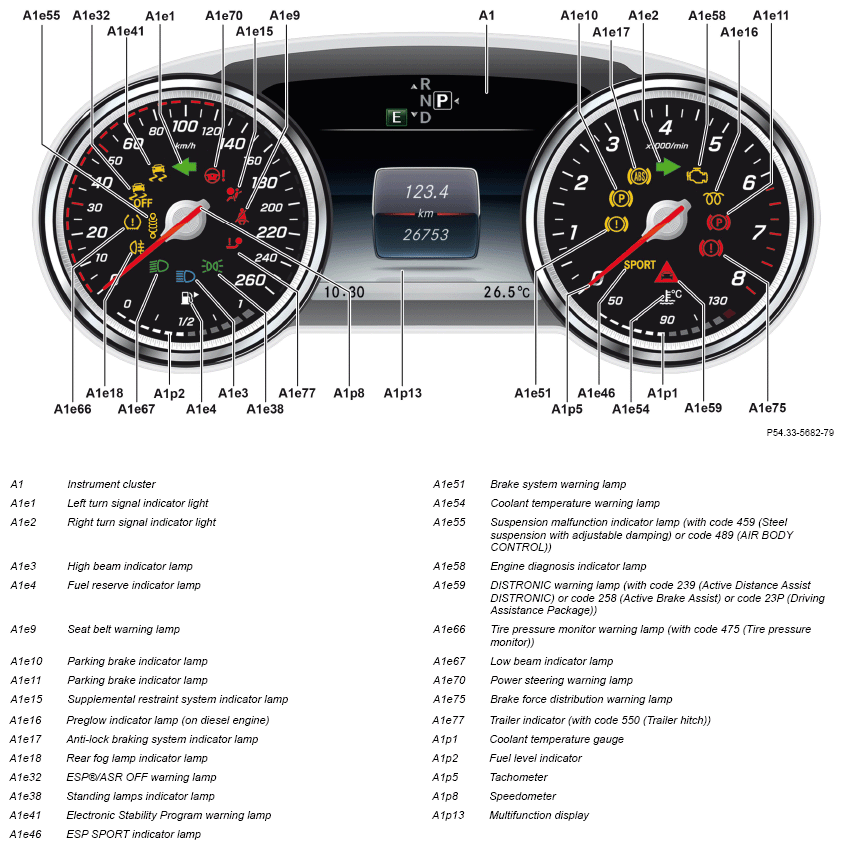

Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996FR
Model 257, 290
up to model year 2021
Shown on model 257.3
Shown on model 257 except code 464 (Digital instrument cluster full display)
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Stationary heater control unit, component description | Model 257, 290 up to model year 2021 with code 228 (Additional warm water heating) A6n1 |
GF83.70-P-4066FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257, 290 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND control panel | Model 257, 290 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FR | |
| Component description for multifunction camera | Model 257, 290 up to model year 2021 with code 22P (Lane tracking package) Model 257, 290 up to model year 2021 with code 23P (Drive package) Model 257, 290 up to model year 2021 with code 513 (Road sign recognition system) Model 257, 290 up to model year 2021 with code P20 (Driving assistant package Plus) Model 257, 290 up to model year 2021 with code P35 (Light Package) A40/11, A40/13 |
GF54.21-P-3300FR | |
| Head-up display, component description | Model 257, 290 up to model year 2021 with code 463 (Head-up display) A40/12 |
GF54.30-P-6140FR | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020FR | |
| Touchpad, component description | Model 257, 290 up to model year 2021 with code 446 (Touchpad only) A105 |
GF54.21-P-4511FR | |
| Active Brake Assist controller unit, component description | Model 257, 290 up to model year 2021 with code 258 (Collision warning system with active brake application FCW-Stop) A108 |
GF30.30-P-3222FR | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 257, 290 up to model year 2021 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A108/1 |
GF30.30-P-3218FR | |
| Component description for bumper radar sensors | Model 257, 290 up to model year 2021 with code 23P (Drive package) Model 257, 290 up to model year 2021 |
GF30.30-P-3302FR | |
| with code P20 (Driving assistant package Plus) B92/6 | |||
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 N3/9 |
GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to model year 2021 N3/10 |
GF07.61-P-6000MNL | |
| Model 257 with engine 264.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRG | ||
| Model 257, 290 with engine 256.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250FR | |
| Component description for trailer recognition control unit | Model 257, 290 up to model year 2021 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Component description for driver seat control unit | Model 257, 290 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 257, 290 up to model year 2021 with code 278 (Fully electric front seats) N32/1 |
GF91.29-P-5231FR | |
| Component description for front passenger seat control unit | Model 257, 290 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) Model 257, 290 up to model year 2021 with code 278 (Fully electric front seats) N32/2 |
GF91.29-P-5241FR | |
| AIR BODY CONTROL control unit, component description | Model 257, 290 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3, N51/8 |
GF32.22-P-5111FR | |
| Parking system control unit, component description | Model 257, 290 up to model year 2021 with code 235 (Active Parking Assist) Model 257, 290 up to model year 2021 with code P44 (Parking package) N62 |
GF54.65-P-5004FR | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 257, 290 up to model year 2021 with code 23P (Drive package) Model 257, 290 up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N693, N694 | GF72.29-P-6021FR | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Component description for tire pressure monitor control unit | Model 257, 290 up to model year 2021 with code 475 (Tire pressure monitor (TPM)) N88 |
GF40.15-P-5124FR | |
| HERMES control unit, component description | Model 257, 290 up to model year 2021 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221FR | |
| Component description for fuel pump control unit | Model 257, 290 with engine 256.9 up to model year 2021 Model 290 with engine 177.9 up to model year 2021 N118 |
GF47.40-P-2001MMK | |
| Model 257 with engine 264.9 up to model year 2021 N118 |
GF47.40-P-2001MRD | ||
| Model 257 with engine 654.9 up to model year 2021 N118 |
GF47.40-P-2001ORD | ||
| Model 257 with engine 656.9 up to model year 2021 N118 |
GF47.40-P-2001OGS | ||
| Component description for exhaust aftertreatment control unit | Model 257 with engine 656.9 up to model year 2021 N118/5 |
GF14.40-P-3030OIA | |
| Exhaust gas aftertreatment control unit, component description | Model 257 with engine 654.9 up to model year 2021 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3) N118/5 |
GF49.20-P-3030ORD | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to model year 2021 N127 |
GF54.21-P-2141ORD | |
| Model 257, 290 with engine 256.9 up to model year 2021 Model 290 with engine 177.9 up to model year 2021 N127 |
GF54.21-P-2141LF | ||
| Model 257 with engine 264.9 up to model year 2021 N127 |
GF54.21-P-2141MRP | ||
| Model 257 with engine 656.9 up to model year 2021 N127 |
GF54.21-P-2141OIA | ||
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006FR | |
| Fully integrated transmission control electric controller unit control unit, component description | Model 257 with transmission 725.0 up to model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Model 290 with transmission 725.096 up to model year 2021 |
GF27.60-P-5120ANS | ||
| Y38n4 | |||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997FR |
