(Drivetrain Control Unit, Component Description - GF54.21-P-2141OIA)
Model 222 with engine 656.9
Model 257 with engine 656.9
up to model year 2021

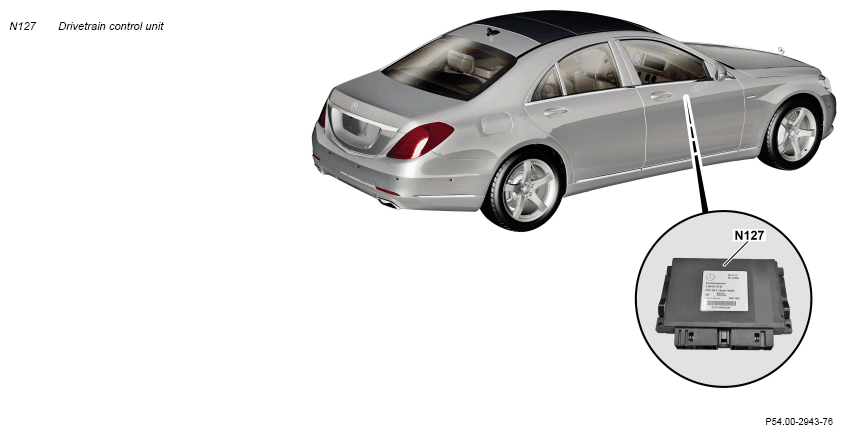

View of vehicle
Location
The powertrain control unit is located in the front passenger footwell.
Tasks
The powertrain control unit is responsible for the following tasks:
- Regulation of engine cooling
- Reading in of signals
- Evaluation of input factors
- Output of signals and actuation of components
Apart from this the powertrain control unit acts as an interface (Gateway) between the connected CAN bus systems
Regulation of engine cooling
The powertrain control unit controls the fan motor (M4/7) and the radiator shutters actuator motor (M87) via drivetrain LIN (LIN C3).
Reading in of signals
Input factors are read in by means of the following connections:
- Direct line
- Drivetrain LIN
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
- Suspension FlexRay (Flex E)
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Output of signals and actuation of components
Initial parameter are output over the following connections:
- Direct line
- Drivetrain LIN
- Engine CAN
- Drive train CAN
- Chassis FlexRay
The electronic ignition lock control unit (N73) is the central interface (Gateway) for exchanging the function-relevant data of the control units that are connected to the various CAN bus systems.
Input factors and output factors for the following components are read in or output over direct lines by the powertrain control unit:
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Terminal 15 | - | - |
| Circuit 30 (fused) | - | - |
| - | Circuit 31 | - |
| Circuit 87 C relay | - | - |
| Low temperature circuit temperature sensor (B10/13) | - | - |
| Accelerator pedal sensor (B37) | - | - |
| Exhaust flap controller (M16/57) | Exhaust flap controller (M16/57) | - |
Input factors and output factors for the following components and control units are sent or received by the powertrain control unit over LIN or CAN:
| Input factors over drive-train-LIN (LIN C3) | Output factors over drive-train-LIN (LIN C3) | Supplemental information |
|---|---|---|
| - | Low-temperature circuit circulation pump 1 (M43/6) | - |
| Fan motor (M4/7) | Fan motor (M4/7) | - |
| Radiator shutters actuator motor (M87) | Radiator shutters actuator motor (M87) | - |
| Input factors over engine CAN (CAN C) | Output factors via engine CAN (CAN C) | Supplemental information |
|---|---|---|
| CDI control unit (N3/9) | CDI control unit (N3/9) | - |
| Input factors via drive train CAN (CAN C1) | Output factors via drive train CAN (CAN C1) | Supplemental information |
|---|---|---|
| Fuel system control unit (N118) | Fuel system control unit (N118) | - |
| Fully integrated transmission control control unit (model 222) or control unit fully integrated transmission control electric controller unit (model 257) | Fully integrated transmission control control unit (model 222) or control unit fully integrated transmission control electric controller unit (model 257) | - |
| CDI control unit (N3/9) | CDI control unit (N3/9) | - |
| Input factors over suspension FlexRay (Flex E) | Output factors over suspension FlexRay (Flex E) | Supplemental information |
|---|---|---|
| Electronic Stability Program control unit (N30/4) | Electronic Stability Program control unit (N30/4) | - |
| AIRmatic control unit (N51/3) | AIRmatic control unit (N51/3) | - |
| Mercedes-Benz Intelligent Drive control unit (N62/4) | Mercedes-Benz Intelligent Drive control unit (N62/4) | With CODE 23P (Driving assistance package) |
| Electronic ignition lock control unit (N73) | Electronic ignition lock control unit (N73) | - |
| Steering column tube module control unit (N80) | Steering column tube module control unit (N80) | - |
Ground connection
"Circuit 31" ground connection is made through a ground line to ground point.
Voltage supply
The powertrain control unit is supplied with power by "circuit 30 fused" and, with the ignition on, by "circuit 87".
Assembly operations
Ensure before unplugging the connector on the CDI control unit that the ignition is switched off and processor run-on has ended. This is to prevent damage to the CDI control unit and save errors in the control units linked to the CAN.
| Wiring diagram for powertrain control unit | Model 257 with engine 656.9 up to model year 2021 | PE54.21-P-2141-97XBA | |
| Model 222 with engine 656.9 | PE54.21-P-2141-97SEB |
