Remove/Install Transfer Case - AR28.10-P-0100MNI

Transmission 725.09 in model 290 with engine 177

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Transmission 725.163 in model 290 with engine 177.8

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Transmission 725.163 in model 290 with engine 177.8	AS00.00-Z-0035-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Transmission 725.163 in model 290 with engine 177.8	AH00.00-Z-0300-01A
Notice	Notes on battery	Transmission 725.163 in model 290 with engine 177.8	AH54.10-P-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Shift automatic transmission (3) to neutral position.
2	Release parking brake.
3	Perform power disconnect of high-voltage onboard electrical system.	Transmission 725.163 in model 290 with engine 177.8	AR47.70-P-1000FRH
4	Secure vehicle on vehicle lift.	: Only release vehicle after leak test.	AR00.60-P-0100-01A
		Vehicle hoist securing tool	Fig 3
5	Drain coolant of low-temperature circuit.	: Only install center and rear lower rear engine compartment lining again after leak test.	AR09.41-P-6834MNI
6	Remove rear engine mount.	: Only install rear engine carrier after having checked and corrected transmission oil level.	AR22.10-P-1160MNI

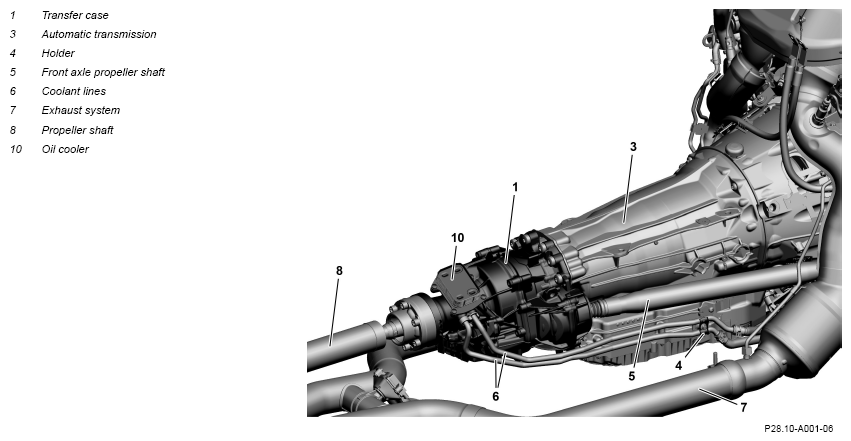

7	Remove propeller shaft (8) and secure against falling down.		AR41.10-P-0050MNI
8	Remove coolant lines (6) from transfer case (1).	: Replace seals.	AR28.55-P-1200MNI

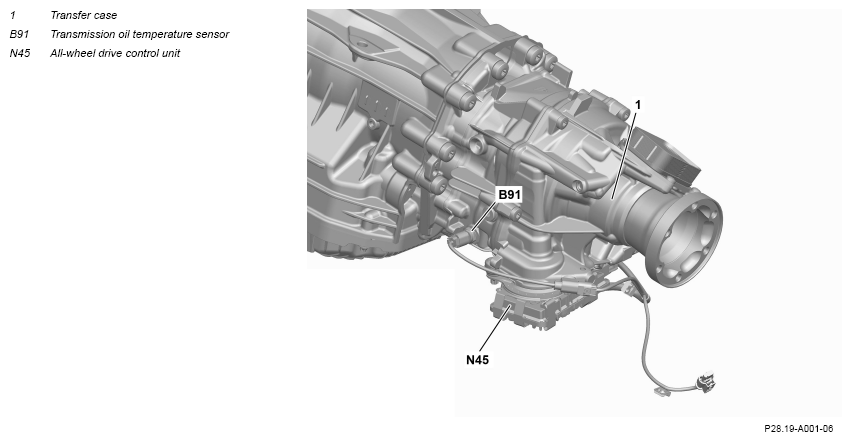

9	Release and disconnect electrical connector from all-wheel drive control unit (N45).
10	Release and disconnect electrical connector from transmission oil temperature sensor (B91).
11	Lower automatic transmission (3) until all screws (2) around circumference of transfer case (1) are accessible.
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
12	Support transfer case (1).
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B

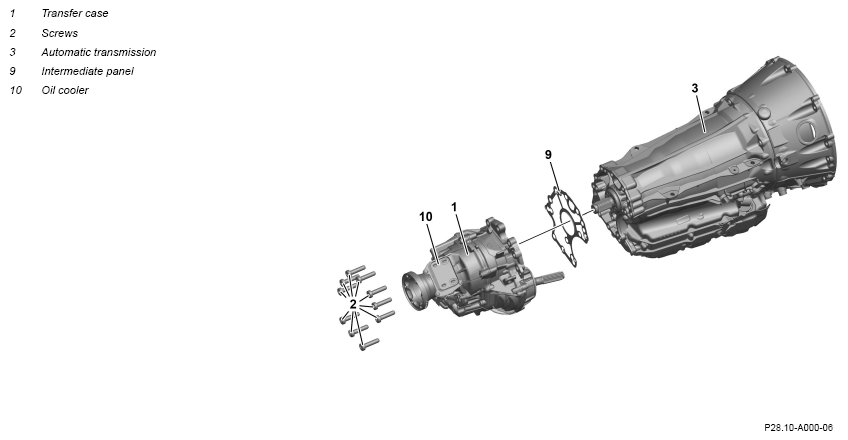

13	Unscrew screws (2) and remove transfer case (1).	The aid of a second person is required for disconnection and connection at the flange of the
		front axle propeller shaft (5). : Moisten plug-in toothing on automatic transmission (3) with new grease. Long-life grease	*BR00.45-Z-1001-06A
		Screw/bolt, transfer case to automatic transmission	*BA28.10-P-1001-01G
14	Remove transmission oil temperature sensor (B91).	When replacing transfer case (1).	AR28.19-P-1007MNI
15	Check intermediate panel (9) for damage.	If problems occur: ↓ Replace intermediate panel (9).
16	Install in the reverse order.
	Concluding tasks
17	Check transmission oil level and correct if necessary.		AR28.10-P-0100-06MNI
		Transfer case oil	*BF28.10-P-1001-01F
		Drain screw to transfer case	*BA28.10-P-1003-01G
		Assembly cleaner	*BR00.45-Z-1028-04A
		Adapter	Fig 2
		Hand pump	Fig 1
18	Install rear engine carrier.		AR22.10-P-4360MNI
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19	Perform engine test run; while doing so, check transfer case (1) for proper operation and leak tightness.
20	Install center and rear lower engine compartment lining.		AR61.20-P-1105FRX
21	Disconnect vehicle from vehicle lift.		AR00.60-P-0100-01A
		Vehicle hoist securing tool	Fig 3

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (213 589 00 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
