Remove/Install Rear Engine Mount - AR22.10-P-1160MNI

Engine 177 in model 290

MODIFICATION NOTES

11.10.2023

Bolt, rear engine mount to bracket/transmission

Model 290 with engine 177

BA22.10-P-1003-03N

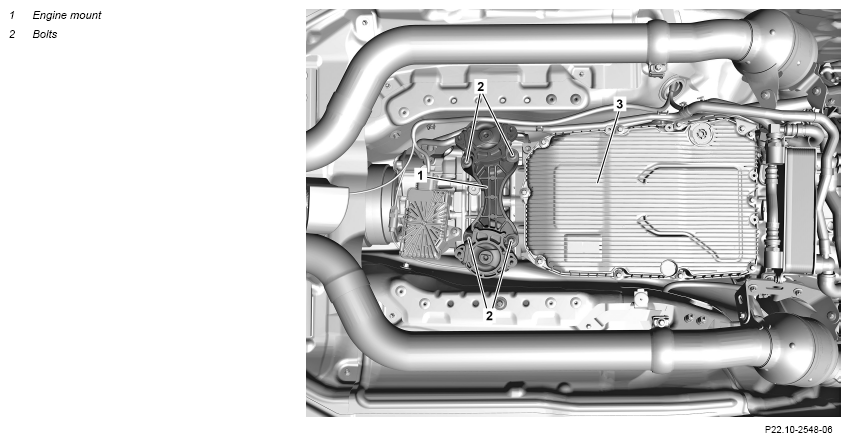

Fig 1: Rear Engine Mount Components Location - Engine 177 In Model 290

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove engine carrier.		AR22.10-P-4360MNI
2	Remove screws (2) and remove engine mount (1) downward.	Bolt rear engine mount to bracket/transmission	*BA22.10-P-1003-03N
3	Install in the reverse order.

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 290 with engine 177
BA22.10-P-1003-03N	Bolt, rear engine mount to bracket/transmission	M8	Nm	28
BA22.10-P-1003-03N	Bolt, rear engine mount to bracket/transmission	M10	Nm	50
