Remove/Install Propeller Shaft - AR41.10-P-0050MNI

Model 290

MODIFICATION NOTES

19.03.2019

BA41.10-P-1002-01M, added.

Operation step 11

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Secure vehicle to prevent it moving away.
2	Put transmission into neutral position.
3	Release parking brake.
4	Remove exhaust system.	Model 290 with engine 256.9	AR49.10-P-7142MSA
		Model 290 with engine 177	AR49.10-P-7142MNI

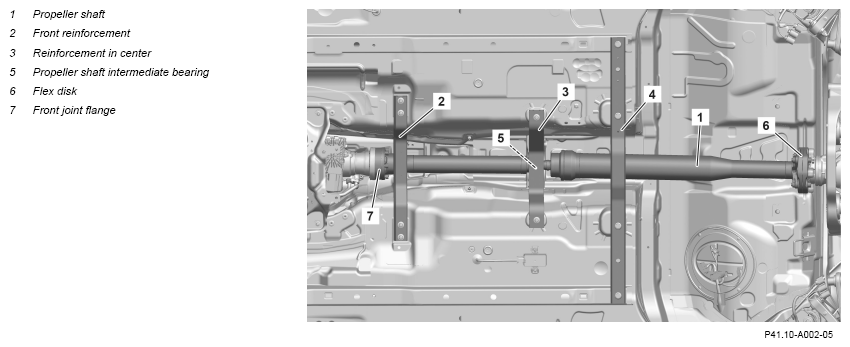

5	Remove all heat shields under propeller shaft (1).
6	Remove reinforcement at front (2).	Bolt, reinforcement under seat to frame floor assembly	*BA61.10-P-1005-01L
7	Remove reinforcement in center (3).	Bolt, center reinforcement to frame floor assembly	*BA61.10-P-1003-01L
8	Mark propeller shaft (1).	In order to be able to reproduce the factory installation position when installing, apply a color marking identifying the position of the propeller shaft (1) relative to the flanges on the transmission and rear-axle differential.
9	Mark propeller shaft intermediate bearing (5) relative to frame floor assembly.	Observe marking in order to reproduce the ex factory installation position.
10	Loosen screws on propeller shaft intermediate bearing (5).	Bolt, propeller shaft intermediate bearing to frame floor assembly	*BA41.40-P-1001-01H
11	Detach front joint flange (7) from transfer case.	A helper is required to counterhold the rear axle differential flex disk (6).
		Bolt, drive shaft to transfer case	*BA41.10-P-1002-01M
		Counterholder	Fig 1
12	Detach flex disk (6) from rear axle differential.		AR41.10-P-0040-01MNI
	Drift for releasing the fitting sleeves in the flexible couplings		WF58.50-P-4110-01A
		Aid of helper required.
		The flex disk (6) remains on the propeller shaft (1).
		Flexible coupling to transmission/rear axle differential or propeller shaft	*BA41.10-P-1001-01M
		Counterholder	Fig 1
13	Remove screws from propeller shaft intermediate bearing (5) and guide out propeller shaft (1) towards the rear.	Screw in the screws loosely and only tighten when the front joint flange (7) on the transmission and the flex disk (6) on the rear axle differential have been tightened. Vibrations in the drive train and damage may otherwise occur.
	Check
14	Check propeller shaft intermediate bearing (5) for wear and damage.	If problems exist, ↓ Replace propeller shaft (1).
15	Check pilot bushings for wear and damage.	If problems exist, ↓ Replace pilot bushings.
			AR41.10-P-0250MNI
16	Check flex disk (6) for wear and damage.
		If problems exist, ↓ Replace flex disk (6).	AP41.10-P-4152EW
17	Install in the reverse order.

PROPELLER SHAFT

Number	Designation				Model 290
BA41.10-P-1001-01M	Flexible coupling to transmission/rear axle differential or propeller shaft	Direct threaded connection	Stage 1	Nm	60
			Stage 2	∠°	90

PROPELLER SHAFT

Number	Designation			Model 290
BA41.10-P-1002-01M	Bolt, drive shaft to transfer case	Stage 1	Nm	40
		Stage 2	∠°	90

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation		Model 290
BA41.40-P-1001-01H	Bolt, propeller shaft intermediate bearing to frame floor assembly	Nm	25

FRAME FLOOR ASSEMBLY

Number	Designation			Model 290
BA61.10-P-1003-01L	Bolt, center reinforcement to frame floor assembly	M10	Nm	23
		M6	Nm	8

FRAME FLOOR ASSEMBLY

Number	Designation			Model 290
BA61.10-P-1005-01L	Bolt, reinforcement under seat to frame floor assembly	Stage 1	Nm	30
		Stage 2: Loosen	∠°	180
		Stage 3	Nm	30

Fig 1: Identifying Counterholder (176 589 00 40 00)
