Check/Correct Transmission Oil Level On Transfer Case - AR28.10-P-0100-06MNI
Transmission 725.09 in model 290
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.163 in model 290.679
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A |
MODIFICATION NOTES
| 10.06.2024 | Transfer case gear oil | Model 205, 213, 217, 218, 222, 223, 232, 238, 253, 257, 290 with transmission 725.0 | BF28.10-P-1001-01F |
| 10.06.2024 | Transfer case gear oil | Model 213, 223, 232, 290 with transmission 725.1 | BF28.10-P-1001-01F |
COMPLETE TRANSFER CASE
| Number | Designation | Model 206.080/087/280/287 with transmission 725.1 Model 213.061/088/089/261/2 88/289 with transmission 725.0 Model 214.063/064/263/264 with transmission 725.1 Model 223.182 with transmission 725.1 Model 236.380/480 with transmission 725.1 Model 238.361/461 with transmission 725.0 Model 253.388/389/988/989 with transmission 725.0 Model 254.380/387/680/687 with transmission 725.1 Model 290.661/688 with transmission 725.0 | Model 205 with transmission 725.0 Model 206 (except 206.080/087/280/287) with transmission 725.1 Model 213 (except 213.061/088/089/261/2 88/289) with transmission 725.0/1 Model 214 (except 214.063/064/263/264) with transmission 725.1 Model 217, 218, 222 with transmission 725.0 Model 223 (except 223.182) with transmission 725.0/1 Model 236 (except 236.380/480) with transmission 725.1 Model 238 (except 238.361/461) with transmission 725.0/1 Model 253 (except 253.388/389/988/989) with transmission 725.0 Model 254 (except 254.380/387/680/687) with transmission 725.1 Model 257 with transmission 725.0/1 Model 290 (except 290.661/688) with transmission 725.0/1 | |
|---|---|---|---|---|
| BA28.10-P-1003-01G | Drain screw to transfer case | Nm | 25 | 25 |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 223, 232, 238, 253, 257, 290 with transmission 725.0 | Model 213, 223, 232, 290 with transmission 725.1 | ||
|---|---|---|---|---|---|
| BF28.10-P-1001-01F | Transfer case oil | Filling capacity | Liter | 0, 68 | 0, 68 |
| Specification | BB00.40-P-0236-15A | BB00.40-P-0236-15A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
Cleaning

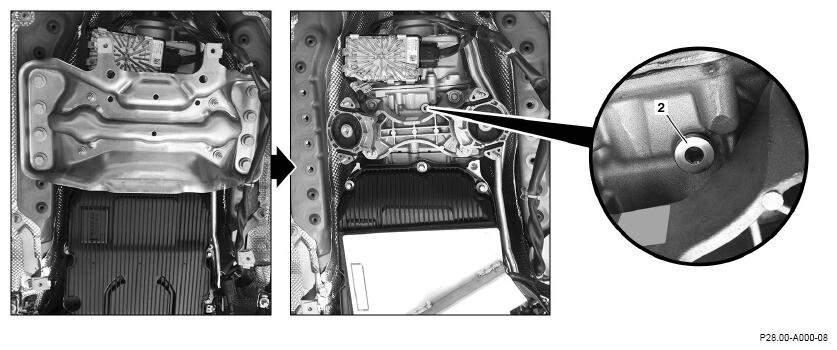

- Clean area surrounding drain screw (2).
Remove
- Remove drain screw (2) from transfer case.
Dispose of old drain screw (2).
Install
- Screw the

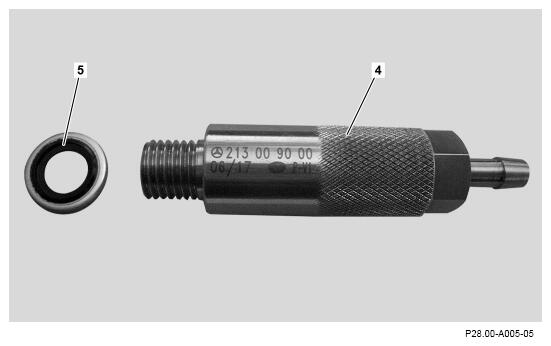

adapter (4) with the sealing ring (5) into the threaded hole of the drain screw (2).
Pour in
- Add transfer case gear oil through the
.
Remove
- Remove
Cleaning
- Clean threaded hole of drain screw (2).
Install
- Tighten drain screw (2) on transfer case
.
Replace drain screw (2) each time it is removed.
Otherwise, leaks and consequential damage may occur.
