Remove/Install Coolant Lines For Transfer Case Oil Cooler - AR28.55-P-1200MNI
Transmission 725.0 in model 290 with engine 177
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.163 in model 290.679 with engine 177.8
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit. | AR09.41-P-6834MNI | |

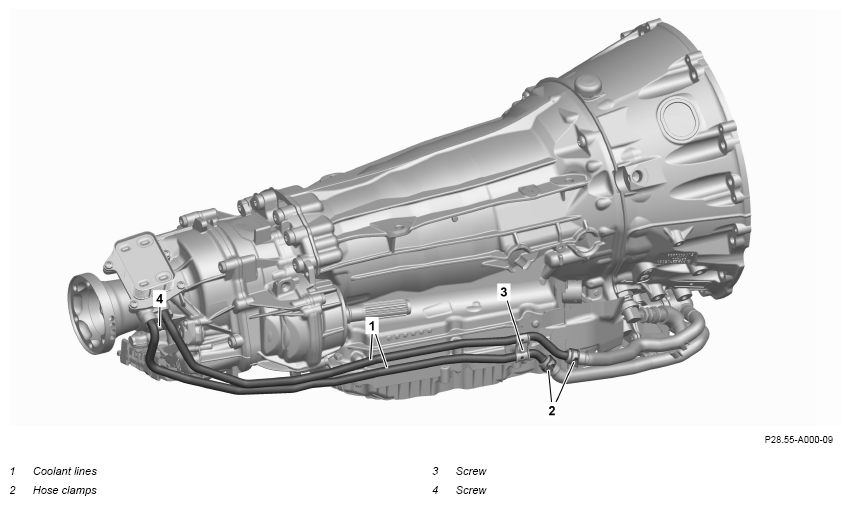

| 2 | Remove screw (3) and remove bracket. | *BA28.10-P-1009-01G | |
| 3 | Release clamps (2). | Fig 1 | |
| 4 | Detach coolant lines (1) from coolant hoses seal openings using suitable stop plugs. | Fig 2 | |
| 5 | Unscrew bolt (4). | *BA28.10-P-1009-01G | |
| 6 | Detach coolant lines (1) from transfer case and seal openings using suitable stop plugs. | Fig 2 | |
| 7 | Remove coolant lines (1) downwards. | ||
| 8 | Install in the reverse order. |
COMPLETE TRANSFER CASE
| Number | Designation | Model 206.080/087/280/287 with transmission 725.1 Model 213.061/088/089/261/2 88/289 with transmission 725.0 Model 214.063/064/263/264 with transmission 725.1 Model 223.182 with transmission 725.1 Model 236.380/480 with transmission 725.1 Model 238.361/461 with transmission 725.0 Model 253.388/389/988/989 with transmission 725.0 Model 254.380/387/680/687 with transmission 725.1 Model 290.661/688 with transmission 725.0 | Model 205 with transmission 725.0 Model 206 (except 206.080/087/280/287) with transmission 725.1 Model 213 (except 213.061/088/089/261/2 88/289) with transmission 725.0/1 Model 214 (except 214.063/064/263/264) with transmission 725.1 Model 217, 218, 222 with transmission 725.0 Model 223 (except 223.182) with transmission 725.0/1 Model 236 (except 236.380/480) with transmission 725.1 Model 238 (except 238.361/461) with transmission 725.0/1 Model 253 (except 253.388/389/988/989) with transmission 725.0 Model 254 (except 254.380/387/680/687) with transmission 725.1 Model 257 with transmission 725.0/1 Model 290 (except 290.661/688) with transmission 725.0/1 | |
|---|---|---|---|---|
| BA28.10-P-1009-01G | Bolt, coolant line to transfer case/bracket at side on automatic transmission | Nm | 9 | - |
