Check Air Body Control For Leaktightness - AR32.22-P-8101FRX

Model 290

with code 489 (AIR BODY CONTROL)

MODIFICATION NOTES

23.05.2019 Pressure line to compressor/valve unit (P)   BA32.22-P-1004-03J
23.05.2019 Pressure line to pressure reservoir/valve unit (SP)   BA32.22-P-1005-03J
G16553427Courtesy of MERCEDES-BENZ USA
G16553428Courtesy of MERCEDES-BENZ USA
G16553429Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
Notice  Notes on AIR BODY CONTROL   AH32.22-P-1000-03LWO
  Notes on HANDS-FREE ACCESS   AH80.61-P-0001-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVING Remove

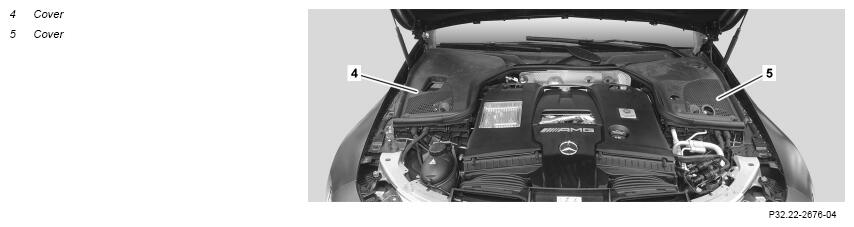

1 Remove cover (4) and cover (5).
2 Remove center underfloor paneling.   AR61.30-P-1001FR
3 Loosen front left fender liner in area of bumper.   AR88.10-P-1301FR
4 Remove spare wheel well trim.   AR68.30-P-4620FRX
INSPECT Check

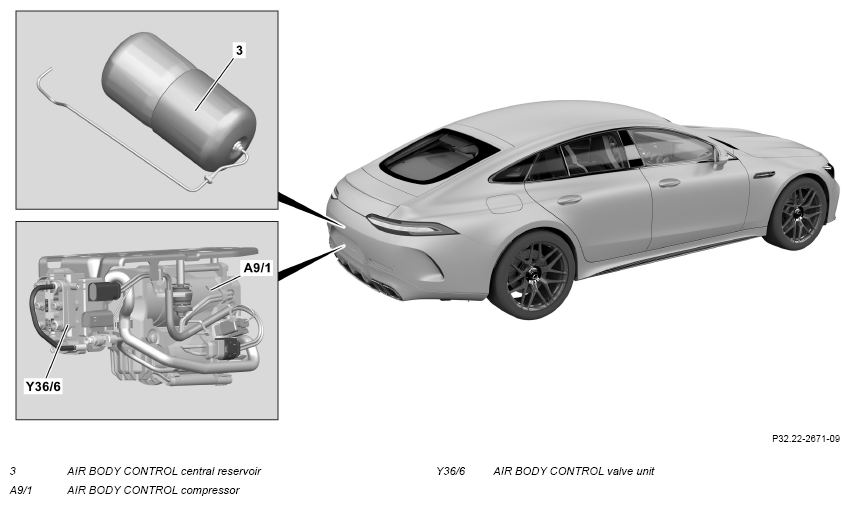

5 Spray pressure line connections at AIR BODY CONTROL valve unit (Y36/6) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A
6 Spray pressure line connections at AIR BODY CONTROL compressor (A9/1) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A

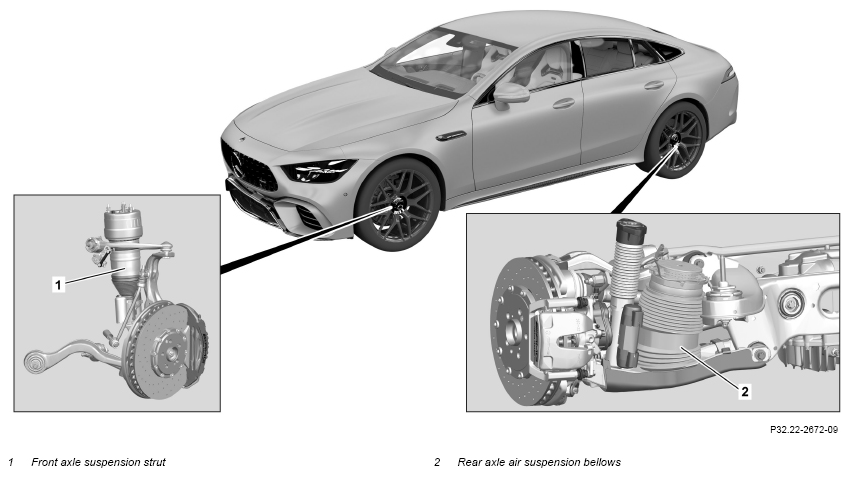

7 Spray pressure line connections at front axle suspension strut (1) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A
8 Spray pressure line connections at rear axle air suspension bellows (2) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A
9 Spray pressure line connection at AIR BODY CONTROL central reservoir (3) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A
10 Spray area of dust boots at top and bottom on left and right front axle suspension strut (1) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A
11 Spray area of dust boots at top and bottom on left and right rear axle air suspension bellows (2) with leak detection spray. Leak detection spray for China *BR00.45-Z-1006-03A
    Leak location spray LUBRION article no. 626.04 *BR00.45-Z-1005-03A
    Leakage detection spray for USA *BR00.45-Z-1004-03A
    Snoop Leak detection fluid *BR00.45-Z-1003-03A
    Leak detection spray *BR00.45-Z-1002-03A
12 Check sprayed areas for leak tightness. IMPORTANT Wait approx. 10 to 15 min after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately.
    If there is a problem,
↓
Replace or repair corresponding components.
    Remove/install front axle suspension strut (1) AR32.25-P-1017FRA
    Remove/install AIR BODY CONTROL central reservoir (3) AR32.22-P-2023FRX
    Remove/install rear axle air suspension bellows (2) AR32.22-P-2016FRX
    Remove/install AIR BODY CONTROL compressor (A9/1) AR32.22-P-2001FRX
    Remove/install valve unit (Y36/6) AR32.22-P-2015FRX
    Repair supply line connection for air suspension AR32.22-P-2001-01FR
    TORQUE SPECIFICATION Pressure line to compressor/valve unit (P) *BA32.22-P-1004-03J
    TORQUE SPECIFICATION Pressure line for air suspension on front axle/rear axle to valve unit *BA32.22-P-1006-03J
    TORQUE SPECIFICATION Pressure line to air suspension *BA32.22-P-1007-03J
    TORQUE SPECIFICATION Pressure line to pressure reservoir/valve unit (SP) *BA32.22-P-1005-03J
    SPECIAL TOOL Box wrench bit Fig 3
    SPECIAL TOOL Box wrench bit Fig 2
    SPECIAL TOOL Knife Fig 1
INSTALLING Install
13 Install spare wheel well trim.   AR68.30-P-4620FRX
14 Install center underfloor paneling.   AR61.30-P-1001FR
15 Install cover (4) and cover (5).
AIR SUSPENSION

Number Designation Model 290
BA32.22-P-1004-03J Pressure line to compressor/valve unit (P) Nm 3, 5
AIR SUSPENSION

Number Designation Model 290
BA32.22-P-1005-03J Pressure line to pressure reservoir/valve unit (SP) Nm 3, 5
AIR SUSPENSION

Number Designation Model 290
BA32.22-P-1006-03J Pressure line for air suspension on front axle/rear axle to valve unit Nm 2
AIR SUSPENSION

Number Designation Model 290
BA32.22-P-1007-03J Pressure line to air suspension Nm 2
Fig 1: Identifying Knife (000 589 12 28 00)
G16553430Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Box Wrench Bit (140 589 00 03 00)
G16553431Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Box Wrench Bit (001 589 00 03 00)
G16553432Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-03A Leak detection spray Christof Fischer GmbH
http://www.kaeltefischer.de
BR00.45-Z-1003-03A Snoop Leak detection fluid Swagelok Company
http://www.swagelok.com
BR00.45-Z-1004-03A Leakage detection spray for USA LIQUI MOLY
http://www.liqui-moly.com
BR00.45-Z-1005-03A Leak location spray LUBRION article no. 626.04 WIMMER CHEMOTECHNIK
Riedener Weg 50B
82319 STARNBERG, BAVARIA
Telephone: (08151) 739981
Fax: (08151) 739982
http://www.lubrion.com
BR00.45-Z-1006-03A Leak detection spray for China Wurth (China) Co., Ltd
http://www.wuerth.cn
