Remove/Install Air Body Control Central Reservoir - AR32.22-P-2023FRX
Model 290
with code 489 (AIR BODY CONTROL)
MODIFICATION NOTES
| 23.05.2019 | Pressure line to pressure reservoir/valve unit (SP) | BA32.22-P-1005-03J |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Notes on AIR BODY CONTROL | AH32.22-P-1000-03LWO | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Drain AIR BODY CONTROL central reservoir (1) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR | |||
| 2 | Remove trim for spare wheel well. | AR68.30-P-4620FRX | |
| 3 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||

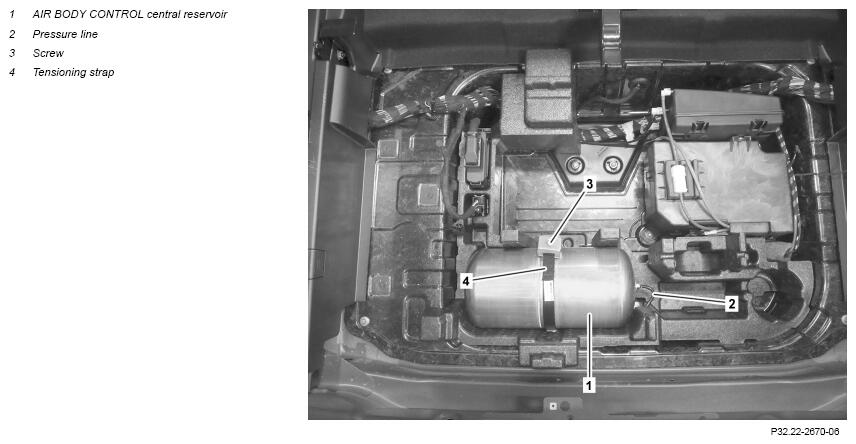

| 4 | Remove pressure line (2) from AIR BODY CONTROL central reservoir (1) and seal openings with suitable stop plugs. | Fig 3 | |
| 5 | Remove bolt (3) and open tensioning strap (4). | ||
| 6 | Remove AIR BODY CONTROL central reservoir (1) upward out of load compartment. | ||
| Install | |||
| 7 | Position AIR BODY CONTROL central reservoir (1) in load compartment. | ||
| 8 | Close tensioning strap (4) and tighten bolt (3). | ||
| 9 | Remove all stop plugs. | ||
| 10 | Attach pressure line (2) to AIR BODY CONTROL central reservoir (1). | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | The thread on the connection of the pressure line (2) and pressure line (2) may not be damaged. Otherwise, leaks will occur. |
AH00.00-P-0015-01CW | |
| *BA32.22-P-1005-03J | |||
| Fig 2 | |||
| If the threads are damaged: ↓ repair connection of pressure line (2) or pressure line (2). |
AR32.22-P-2001-01FR | ||
| Fig 1 | |||
| 11 | Fill AIR BODY CONTROL central reservoir (1) with compressed air using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR | |||
| Check | |||
| 12 | Read out and delete fault memory using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR | |||
| 13 | Check AIR BODY CONTROL central reservoir (1), pressure line (2) and connection of pressure line (2) for leak tightness. | AR32.22-P-8101FRX | |
| Install | |||
| 14 | Install trim for spare wheel well. | AR68.30-P-4620FRX |
AIR SUSPENSION
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA32.22-P-1005-03J | Pressure line to pressure reservoir/valve unit (SP) | Nm | 3, 5 |
