Remove/Install Front Suspension Strut - AR32.25-P-1017MFA

Model 118, 177, 243, 247

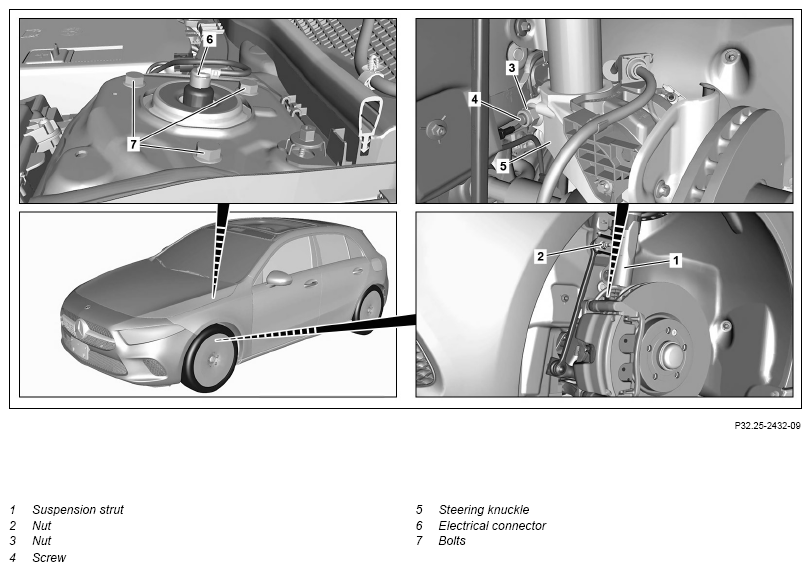

Fig 1: Front Suspension Strut Components Location - Model 247 (Shown On Model 177.0 With Code 459)
G14688757Courtesy of MERCEDES-BENZ USA

Shown on model 177.0 with code 459 (Steel suspension with adjustable damping)

DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Detach front left or right brake caliper and secure at vehicle free of tension with lines still connected. Model 118.351/353/354/651/653/654, 177.051/053/054/151/951, 247.651/751/753/754 AR42.10-P-0070MFB
    Model 118 (except 118.351/353/354/651/653/654), 177 (except 177.051/053/054/151/951), 243, 247 (except 247.651/751/753/754) 1-piston floating caliper brake
NOTES Do not crush or kink or subject lines to tension Otherwise, the lines will be damaged and function will be impaired.
AR42.10-P-0070MFA
    IMPORTANT Do not twist the brake hose, and make sure that it is routed correctly.
2 Detach tie rod from steering knuckle (5).   AR46.40-P-0200-02MFA
    TORQUE SPECIFICATION Nut, tie rod to steering knuckle *BA46.40-P-1001-01Q
    TORQUE SPECIFICATION Press Fig 4
    TORQUE SPECIFICATION Repair spindle Fig 3
    TORQUE SPECIFICATION Puller Fig 7
3 Unscrew nut from supporting joint and remove supporting joint from steering knuckle (5).
Note on calculation of tightening torque when using insertion or socket tools with various effective lengths
  AH00.00-P-0015-01CW
    NOTES Counterhold the ball head and do not use an impact wrench/driver.
Otherwise the ball head or sealing bellows will be damaged.
IMPORTANT Model 118, 177, 243, 247.0
Commercially available devices/tools  A combination wrench

    TORQUE SPECIFICATION Nut, supporting ball joint/transverse control arm to steering knuckle *BA33.15-P-1005-01F
    SPECIAL TOOL Model 247.6/7 Counterholder Fig 8
    SPECIAL TOOL Model 247.6/7 Socket wrench Fig 2
4 Support steering knuckle (5) and secure to prevent it falling.
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
5 Extend front axle shaft out of wheel hub and secure against falling down. NOTES Do not knock a seized front axle shaft out of the wheel hub.
Otherwise the angular-contact ball bearing will be damaged.

    SPECIAL TOOL Extraction and insertion tool
If the front axle shaft is seized,

Pry front axle shaft out of wheel hub.
Fig 5
6 Secure suspension strut (1) to prevent it falling.
7 Remove nut (2). TORQUE SPECIFICATION Nut, torsion bar linkage to suspension strut/stabilizer bar *BA32.35-P-1002-02A
8 Remove nut (3) and screw (4). TORQUE SPECIFICATION Nut, spring strut to steering knuckle *BA32.25-P-1003-04J
9 Spread steering knuckle (5) using spreading tool until suspension strut (1) detaches from steering knuckle (5). SPECIAL TOOL Spreader Fig 6
10 Release and disconnect electrical connector (6). Model 118, 177, 247
with code 459 (Steel suspension with adjustable damping)

11 Unscrew screws (7) and remove suspension strut (1). TORQUE SPECIFICATION Bolt, suspension strut to suspension strut tower *BA32.25-P-1002-04J
INSPECT Check
12 Check suspension strut (1). If damage is present,

Replace corresponding component.

      AR32.25-P-1018MFA
13 Install in the reverse order.
SUSPENSION STRUTS

Number Designation Model 118, 247.6/7 Model 177, 247 (except 247.6/7)
BA32.25-P-1002-04J Bolt, suspension strut to suspension strut tower Stage 1 Nm 50 50
Stage 2 ∠° - -
SUSPENSION STRUTS

Number Designation Model 243
BA32.25-P-1002-04J Bolt, suspension strut to suspension strut tower Stage 1 Nm 50
Stage 2 ∠° -
SUSPENSION STRUTS

Number Designation Model 118, 247.6/7 Model 177, 247 (except 247.6/7)
BA32.25-P-1003-04J Nut, spring strut to steering knuckle Stage 1 Nm 80 80
Stage 2 ∠° 45 90
SUSPENSION STRUTS

Number Designation Model 243
BA32.25-P-1003-04J Nut, spring strut to steering knuckle Stage 1 Nm 80
Stage 2 ∠° 90
FRONT AXLE STABILIZER BAR

Number Designation Model 243 Model 118, 177, 247
BA32.35-P-1002-02A Nut, torsion bar linkage to suspension strut/stabilizer bar M12 Nm 105 105
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 118, 177, 247 Model 243
BA33.15-P-1005-01F Nut, supporting ball joint/transverse control arm to steering knuckle M14 Stage 1 Nm 90 90
Stage 2 ∠° 90 90
FRONT AXLE TIE ROD

Number Designation Model 118, 177, 247 Model 243
BA46.40-P-1001-01Q Nut, tie rod to steering knuckle Stage 1 Nm 90 90
Stage 2 ∠° 90 90
Fig 2: Identifying Socket Wrench (247 589 00 09 00)
G14688758Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Repair Spindle (221 589 00 33 03)
G14688759Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Press (163 589 03 43 00)
G07300835Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Extraction And Insertion Tool (210 589 03 43 00)
G07274463Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Spreader (177 589 00 31 00)
G14688762Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Puller (221 589 00 33 00)
G07687661Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Counterholder (247 589 00 40 00)
G14688764Courtesy of MERCEDES-BENZ USA
