Pressing Out And Attaching Track Rod Joint At Steering Knuckle - AR46.40-P-0200-02MFA

Model 118, 177, 243, 247

FRONT AXLE TIE ROD

Number	Designation			Model 118, 177, 247	Model 243
BA46.40-P-1001-01Q	Nut, tie rod to steering knuckle	Stage 1	Nm	90	90
BA46.40-P-1001-01Q	Nut, tie rod to steering knuckle	Stage 2	∠°	90	90

Fig 1: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Repair Spindle (221 589 00 33 03)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

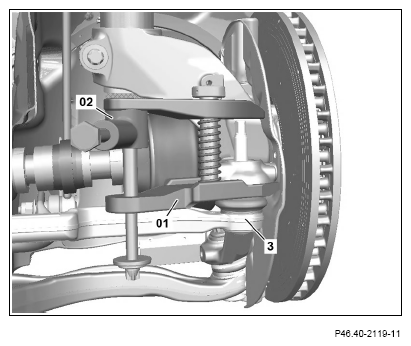

Use puller (01), repair spindle and press (02) to pry off tie rod joint (3).

Pushing off

Unscrew self-locking nut from tie rod joint (3).
Install puller (01), repair spindle and press (02) at tie rod joint (3) of steering knuckle.
Pry off tie rod joint (3) with the puller (01), repair spindle and press (02) from steering knuckle.
Turn steering and check that the puller (01) is correctly seated on the tie rod joint (3).

If seating is incorrect, damage to the race of the tie rod occurs and this results in destruction of the tie rod.
Remove puller (01), repair spindle and press (02) from tie rod joint (3).
Attach
Clean the centering cone, the thread on the tie rod joint (3) and the mount on the steering knuckle.
There must be no grease or oil on the centering cone, thread and on the mount.

Otherwise, the tie rod joint (3) may work its way loose.
Tighten new self-locking nut on tie rod joint (3) securely .
If necessary, counterhold tie rod joint (3) using a suitable tool. Observe specified tightening torque.
