Remove/Install Camshaft Positioner - AR05.20-P-7204MNA
Engine 176 in model 463 up to model year 2019
Engine 177 in model 205 Engine 178 in model 190
MODIFICATION NOTES
| 12.10.2016 | Repair method completely revised. |
Shown on left cylinder head

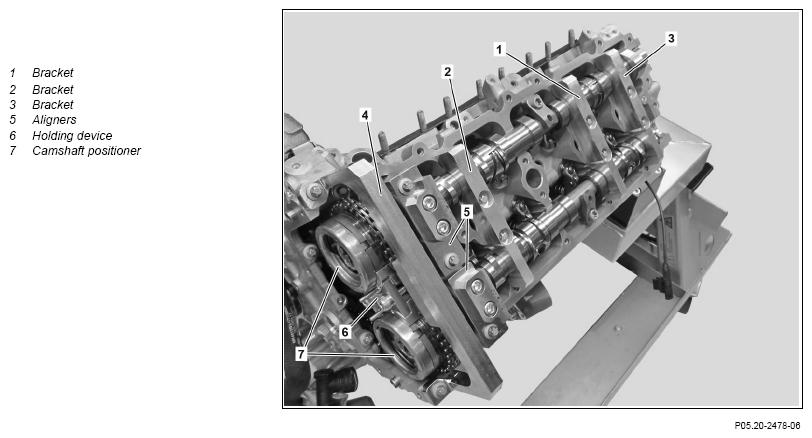

Fig 1: Camshaft Positioner Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Left Cylinder Head)
Shown on left cylinder head
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove left cylinder head cover. | Engine 178 in model 190 (except 190.381) | AR01.20-P-5013MNB |
| Engine 176 in model 463 up to model year 2019 | AR01.20-P-5013MNA | ||
| Engine 177 in model 205 Engine 178.9 in model 190.381 | AR01.20-P-5013MNJ | ||
| 2 | Remove right cylinder head cover. | Engine 178 in model 190 (except 190.381) | AR01.20-P-5012MNB |
| Engine 176 in model 463 up to model year 2019 | AR01.20-P-5012MNA | ||
| Engine 177 in model 205 Engine 178.9 in model 190.381 | AR01.20-P-5012MNJ | ||
| 3 | Install brackets (1, 2, 3). | AR05.20-P-6020-03MNA | |
| Fig 2 | |||
| 4 | Turn engine at center bolt of crankshaft in direction of engine rotation so that positioned at a 400 CKA after ignition TDC of cylinder 1 and fix with drift. | AR05.10-P-7620-04MNA | |
| Fig 3 | |||
| Fig 4 | |||

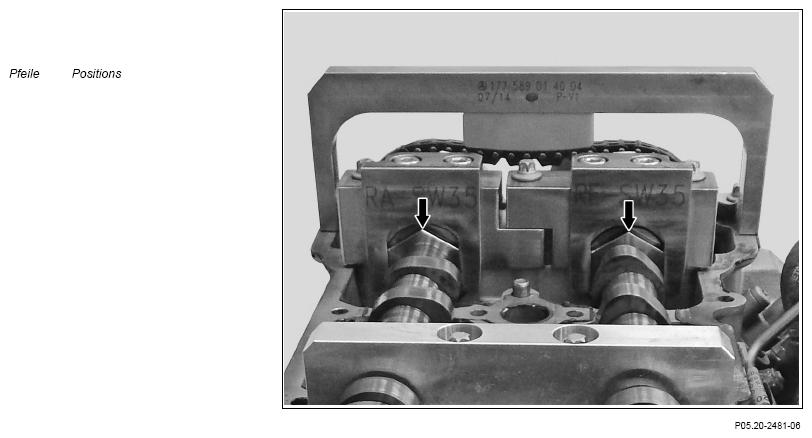

| 5 | Install aligners (5). | It must be possible for the aligners (5) to be placed without further pressure and then installed. The aligners (5) are not suitable for bringing the camshafts into position. Otherwise damage can occur to the aligners (5) and can also result in incorrect timing. |
Fig 2 |
| 6 | Remove drift from the marking bore of the belt pulley. | Fig 3 | |
| 7 | Release control valves of the camshaft positioners (7). | Fig 2 | |
| Fig 5 | |||
| 8 | Remove secondary chain drive chain tensioner on the left and right. | Do not turn the engine while the chain tensioner is removed. Otherwise damage can occur. |
AR05.10-P-7800MNA |
| 9 | Remove control valves of the camshaft positioners (7). | Fig 5 | |
| 10 | Raise secondary chain drive timing chain and remove camshaft positioners (7) from camshafts. | ||
| Install | |||
| 11 | Raise secondary chain drive timing chain and attach new camshaft positioner (7) on the camshaft. | ||
| 12 | Lubricate the thread and the bolt head contact surface of the new control valves. Authorized engine oils (service) | ||
| BB00.40-P-0226A | |||
| 13 | Screw in new control valves of the new camshaft positioners (7). | Fig 5 | |
| 14 | Tighten new control valves of the new camshaft positioners (7) lightly by hand and unfasten by a 1/4 revolution. | Fig 5 | |
| Fig 2 | |||
| 15 | Position the tensioning rail centrally on the guide pins. | ||
| 16 | Install left and right secondary chain drive chain tensioners. | AR05.10-P-7800MNA | |
| 17 | Insert holding device (6) between the camshaft positioners, and tighten. | Holding device | Fig 2 |
| 18 | Tighten new control valves of new camshaft positioners (7). | *BA05.20-P-1003-02C | |
| Fig 5 | |||
| Holding device | Fig 2 | ||
| 19 | Remove holding device (6) between camshaft positioners. | Fig 2 | |
| 20 | Remove aligners (5). | Fig 2 | |
| 21 | Remove drift from belt pulley. | Fig 3 | |
| 22 | Turn engine at center bolt of crankshaft in direction of engine rotation through two full revolutions and place engine on cylinder 1 at 400 crank angle after ignition TDC of cylinder 1 and mark with a drift. | AR05.10-P-7620-04MNA | |
| Fig 4 | |||
| Fig 3 | |||
| 23 | Install aligners (5). | It must be possible for the aligners (5) to be placed without further pressure and then installed. The aligners (5) are not suitable to bring the exhaust camshaft or intake camshaft into position. This leads to the aligners (5) becoming damaged and also results in incorrect timing. |
Fig 2 |
| If aligners (5) cannot be installed without pressure, ↓ Set basic position of camshafts again. |
AR05.20-P-6020MNA | ||
| 24 | Remove aligners (5). | Fig 2 | |
| 25 | Remove brackets (1, 2, 3). | AR05.20-P-6020-03MNA | |
| Fig 2 | |||
| 26 | Remove drift from belt pulley. | Fig 3 | |
| 27 | Install right cylinder head cover. | Engine 178 in model 190 (except 190.381) | AR01.20-P-5012MNB |
| Engine 176 in model 463 up to model year 2019 | AR01.20-P-5012MNA | ||
| Engine 177 in model 205 Engine 178.9 in model 190.381 | AR01.20-P-5012MNJ | ||
| 28 | Install left cylinder head cover. | Engine 178 in model 190 (except 190.381) | AR01.20-P-5013MNB |
| Engine 176 in model 463 up to model year 2019 | AR01.20-P-5013MNA | ||
| Engine 177 in model 205 Engine 178.9 in model 190.381 | AR01.20-P-5013MNJ | ||
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
29 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run. While doing so, check engine for proper operation and leak tightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | Engine 176 | Engine 177 | ||
|---|---|---|---|---|---|
| BA05.20-P-1003-02C | Control valve of pulse wheel/camshaft positioner to camshaft | Stage 1 | Nm | 18 | 18 |
| Stage 2 | ∠° | 45 | 45 | ||
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | Engine 178 | ||
|---|---|---|---|---|
| BA05.20-P-1003-02C | Control valve of pulse wheel/camshaft positioner to camshaft | Stage 1 | Nm | 18 |
| Stage 2 | ∠° | 45 | ||
