Detach/Attach Holder For Camshafts - AR05.20-P-6020-03MNA
Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
Engine 178 in model 190

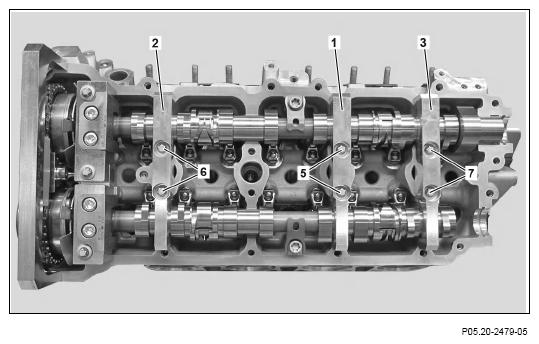

Shown on left cylinder head
- Position the
holder (1, 2, 3) on the cylinder head.
- Tighten down screw/bolts (5) alternately until the holder (1) lies flat on the cylinder head.
- Tighten down screw/bolts (6) alternately until the holder (2) lies flat on the cylinder head.
- Tighten down screw/bolts (7) alternately until the holder (3) lies flat on the cylinder head.
- Remove in the reverse order.
