Remove/Install Left Cylinder Head - AR01.30-P-5770MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

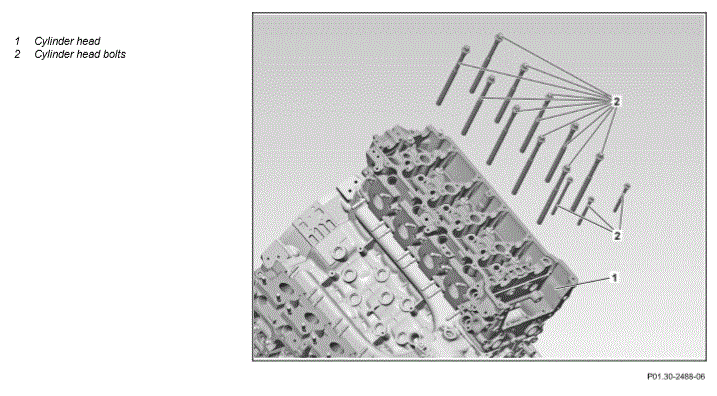

Fig 1: Left Cylinder Head Components Location - Engine 176 In Model 463 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

Warning	Risk of injury  to skin and eyes by handling hot or glowing objects	Wear protective gloves, protective clothing and, safety glasses if necessary.	AS00.00-Z-0002-01A
Warning	Risk of injury  to skin and eyes from scalding from contact with hot coolant spray. Risk of poisoning  From swallowing coolant.	Open the cooling system only at coolant temperatures below 90 ° C. Slowly open the cap and release the excess pressure. Do not pour coolant into drinking containers. Wear protective gloves, protective clothing and protective goggles.	AS20.00-Z-0001-01A
Caution	Risk of injury  through cuts or scrapes on sharp-edged vehicle parts	Always wear protective gloves when working on or near sharp, non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Caution	Risk of injury  on skin and eyes by handling Engine oil.Risk of poisoning  by swallowing Engine oil.	Wear protective gloves, protective clothing and protective goggles.   Do not pour Engine oil into drinking containers.	AS18.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on coolant		AH20.00-N-2080-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Remove left secondary chain drive timing chain.		AR05.10-P-7614MNA
2	Remove left secondary chain drive tensioning rail.		AR05.10-P-8129MNA
3	Remove left secondary chain drive slide rail.		AR05.10-P-8481MNA
4	Remove both camshafts from cylinder head (1).		AR05.20-P-6992MNA
5	Remove left exhaust manifold.		AR14.10-P-3006MNA
6	Remove fuel line from front cylinder head (1).
7	Remove coolant line from cylinder head (1).
8	Remove shutoff valve.		AR20.00-P-0300MNA
9	Loosen the cylinder head bolts (2) in stages in the reverse order of the tightening procedure and remove.	Tightening specification for cylinder head bolts	AR01.30-P-5800-07MNA
		Tightening procedure for cylinder head bolts Installation:  Observe tightening procedure and tightening specification. Installation:  Replace cylinder head bolts (2).	AR01.30-P-5800-01MNA
		Bolt, cylinder head to crankcase	*BA01.30-P-1001-01N
10	Remove cylinder head (1) from crankcase.
	General information on checking valves, valve seats and valve guides		AH05.30-P-1000-02SZ
		Installation:  Fit a the new cylinder head gasket on the crankcase. Pay attention to the guide bushing for fixing the cylinder head (1).
	Clean
11	Clean the sealing surfaces on the cylinder head (1) and on the crankcase.		AR01.00-P-0050-01A
		Do not use any sharp-edged tools or abrasive paper. This may otherwise cause damage to sealing surfaces and, subsequently, engine and environmental damage.
		Mechanical processing and/or cleaning of sealing surfaces by means of spot grinding with abrasive paper or other abrasive materials to remove sealing residue is not permitted. Even the smallest amounts of corundum and grinding particles as well as wear debris that enter into the engine oil chamber, bearing points, or combustion chambers lead to damage and thus cause engine damage
		The sealing surfaces must feel even after treatment. The sealing surfaces need not be metallic bright; thin layers of firmly adhering silicone sealant may remain.
		Cleaning is permitted only with the approved adhesive and sealant remover.
		Observe processing information from manufacturer.
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
12	Blow out threaded holes of cylinder head bolts (2) in crankcase with compressed air and clean away engine oil and coolant.
	Check
13	Check the sealing surfaces on the cylinder head (1) and on the crankcase for cracks and unevenness and replace if necessary.	Installation:  Any distortion of the cylinder head (1) in the longitudinal or transverse direction is compensated for by tightening the cylinder head bolts (2) when reassembling. Check relevant sealing surfaces of the engine for unevenness, score marks, etc ↓ Replace affected component.
14	Install in the reverse order.
15	Change engine oil and oil filter element.
		Engine 176 in model 463 up to model year 2019	AP18.00-P-0101GE
		Engine 177 in model 205	AP18.00-P-0101D
	Risk of accident  by starting up automatically while the engine is running. Risk of injury  from bruises and burns from working on the engine during the starting process or while the engine is running	Secure the vehicle against starting by itself. Wear closed, snug-fitting work clothing. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Perform engine test run and check engine and fuel system for leak tightness.
