Remove/Install Slide Rails On Secondary Chain Drive - AR05.10-P-8481MNA
Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
Shown on ENGINE 177

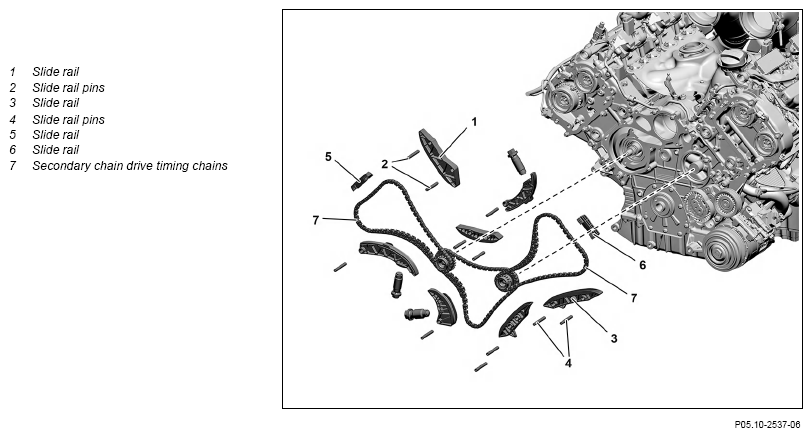

Fig 1: Slide Rails On Secondary Chain Drive Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Engine 177)
| Remove/install | |||
| 1 | Remove the right cylinder head cover | AR01.20-P-5012MNA | |
| 2 | Remove left cylinder head cover | AR01.20-P-5013MNA | |
| 3 | Remove camshaft positioner for right exhaust camshaft | AR05.20-P-7204MNA | |
| 4 | Remove camshaft positioner for left intake camshaft | AR05.20-P-7204MNA | |
| 5 | Remove sliding rail bolt pin (2) | Fig 2 | |
| Fig 3 | |||
| 6 | Remove sliding rail bolt pin (4) | Fig 2 | |
| Fig 3 | |||
| 7 | Pull out slide rail (1) and slide rail (3) upwards | ||
| 8 | Remove slide rail (5) on right cylinder head cover | ||
| 9 | Remove slide rail (6) on left cylinder head cover | ||
| 10 | Check slide rails (1, 3, 5, 6) for damage | If damage is present ↓ Remove slide rails (1, 3, 5, 6) |
|
| 11 | Install in the reverse order | ||
| Check | |||
| 12 | Check engine oil level; correct if necessary | ||
| Engine 176 in model 463 up to model year 2019 | AP18.00-P-0101GE | ||
| Engine 177 in model 205 | AP18.00-P-0101D | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out engine test run and check engine for leaktightness while it is running |
