Remove/Install Poly-V Belt For Power Steering Pump And Refrigerant Compressor - AR13.21-P-0132MNF
Engine 176 in model 463
up to model year 2019
| 1 | Remove lower engine compartment paneling | Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 ) | AR61.20-P-1105GW |
| 2 | Disconnect oil lines of engine oil cooler on crankcase and place to one side | ||

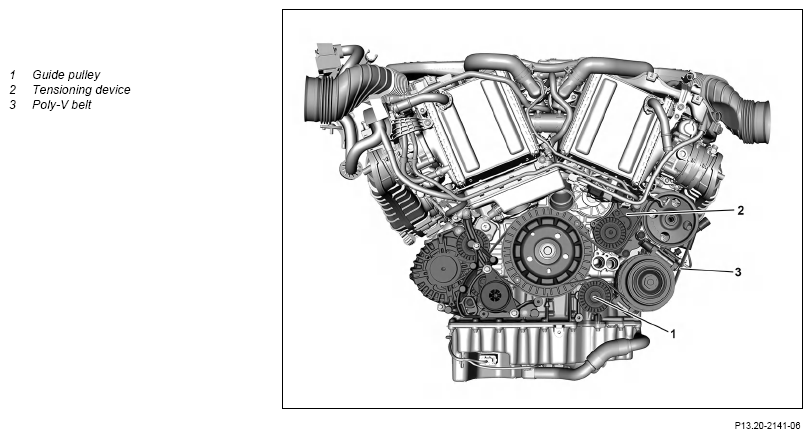

| 3 | Release clamping device (2) counterclockwise and lock clamping device (2) using a suitable drift | ||
| 4 | Remove poly-V belt (3) | ||
| Check | |||
| 5 | Check belt pulley of A/C compressor for damage | If damage is present↓ Replace A/C compressor |
|
| Engine 176 in model 463 as of model year 2016 up to model year 2019 |
AR83.55-P-5310GW | ||
| 6 | Check belt pulley of the power steering pump for damage | If damage is present ↓ Replace power steering pump |
|
| Engine 176 in model 463 as of model year 2016 up to model year 2019 |
AR46.30-P-0500GWA | ||
| 7 | Check belt pulley/vibration damper for damage | If damage is present ↓ Replace belt pulley/vibration damper |
|
| AR03.30-P-1600MNA | |||
| 8 | Check guide pulley (1) for damage | If damage is present ↓ Replace guide pulley (1) |
|
| AR13.20-P-0006MNF | |||
| 9 | Check clamping device (2) for damage | If damage is present ↓ Replace clamping device (2) |
|
| AR13.25-P-3222MNF | |||
| Install | |||
| 10 | Fit on poly-V belt (3) | AR13.22-P-3902-02MNA | |
Do not use belt wax or similar products. This leads to slipping of the poly-V belt (3). |
|||
| 11 | Pull out drift and tension poly-V belt (3) with clamping device (2) | ||
| 12 | Mount oil lines of the engine oil cooler at crankcase | ||
| *BA18.30-P-1009-01N | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Perform an engine test run and check engine for proper function | ||
| 14 | Install lower engine compartment paneling | Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 ) |
AR61.20-P-1105GW |
OIL COOLING
| Number | Designation | Engine 176 except in model 463, engine 176 in model 463 up to model year 2019 | Engine 176 in model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA18.30-P-1009-01N | Bolt, oil line to engine | Nm | 8 | 8 |
