Routing Diagram For Poly-V Belt - AR13.22-P-3902-02MNA
Engine 176 in model 463
Engine 177 in model 205
Engine 178 in model 190

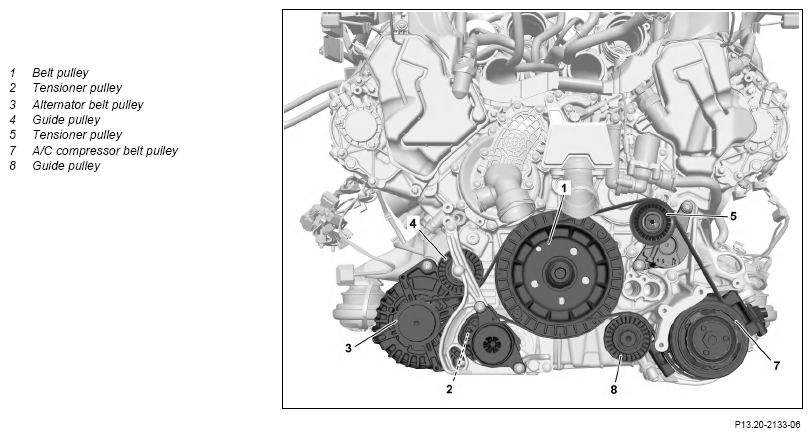

Shown on engine 177 in model 205
 Courtesy of MERCEDES-BENZ USA
|
Shown on engine 178 in model 190
 Courtesy of MERCEDES-BENZ USA
|

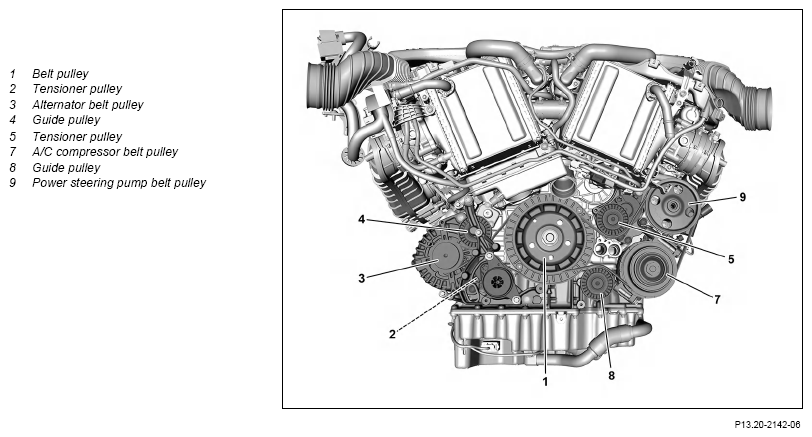

Shown on engine 176 in model 463
Courtesy of MERCEDES-BENZ USA
