Remove/Install Belt Pulley/Vibration Damper - AR03.30-P-1600MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190
Shown on ENGINE 177
Fig 1: Belt Pulley/Vibration Damper Components Location - Engine 176 In Model 463 Up To Model Year 2019
| Remove/install | |||
| 1.1 | Remove air conditioning system refrigerant compressor poly-V-belt. | Engine 177 in model 205 | AR13.21-P-1203MNA |
| 1.2 | Remove power-steering pump poly-V-belt. | Engine 178 in model 190 | AR13.21-P-0131MNB |
| 1.3 | Remove poly-V-belt for power-steering pump and refrigerant compressor. | Engine 176 in model 463 up to model year 2019 |
AR13.21-P-0132MNF |
| 2 | Remove alternator poly-V-belt. | AR13.22-P-0003MNA | |
| 3 | Remove center screw (2). | *BA03.30-P-1001-01W | |
| Fig 2 | |||

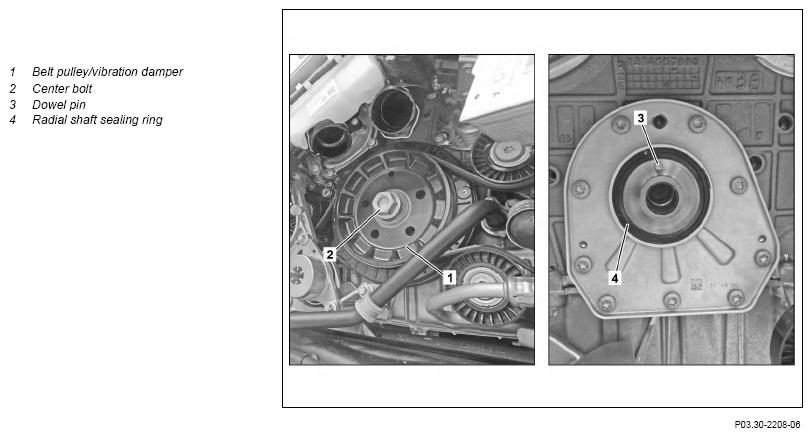

| 4 | Detach belt pulley/vibration damper (1) from crankshaft. | ||
| Check | |||
| 5 | Check front radial shaft sealing ring (4) for damage. | If damage is present, ↓ Install new front radial shaft sealing ring (4). |
AR03.20-P-3002MNA |
| 6 | Install in the reverse order. | ||
7 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check engine for leak tightness. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
FLYWHEEL, VIBRATION DAMPER
| Number | Designation | Engine 176 | Engine 177 | ||
|---|---|---|---|---|---|
| BA03.30-P-1001-01W | Center bolt, vibration damper to crankshaft | Stage 1 | Nm | 200 | 200 |
| Stage 2 | ∠° | 90 | 90 | ||
FLYWHEEL, VIBRATION DAMPER
| Number | Designation | Engine 178 | ||
|---|---|---|---|---|
| BA03.30-P-1001-01W | Center bolt, vibration damper to crankshaft | Stage 1 | Nm | 200 |
| Stage 2 | ∠° | 90 | ||
