Remove/Install Power Steering Pump - AR46.30-P-0500GWA
Model 463 with engine 176
up to model year 2019
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove radiator | AR20.20-P-3865MNF | |

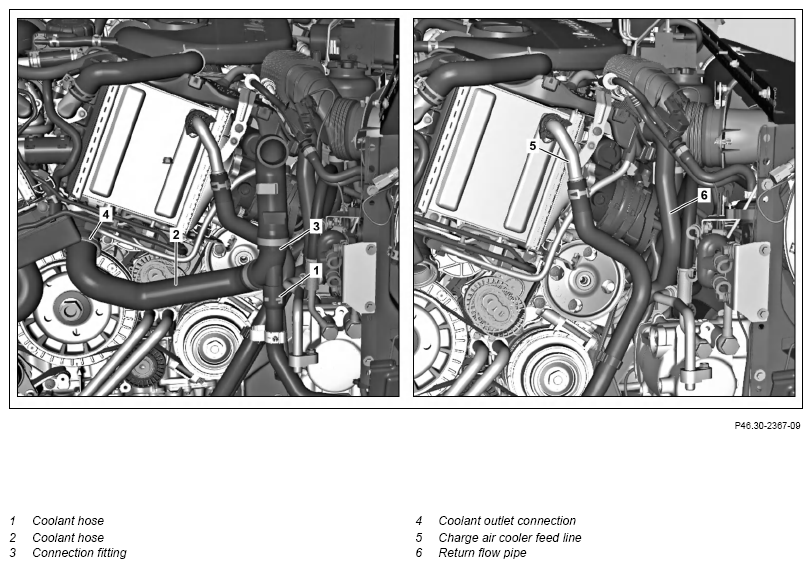

| 2 | Disconnect coolant hose (1) from connection fitting (3) and place to one side | ||
| 3 | Disconnect coolant hose (2) with connection fitting (3) from coolant outlet connection (4) and remove | ||
| 4 | Disconnect charge air cooler feed line (5) on left of charge air cooler and place to one side | ||
| 5 | Disconnect return line (6) at top and place to one side | ||
| 6 | Remove poly-V belt. | AR13.21-P-0132MNF | |
| 7 | Extract oil from expansion reservoir | Fig 2 | |

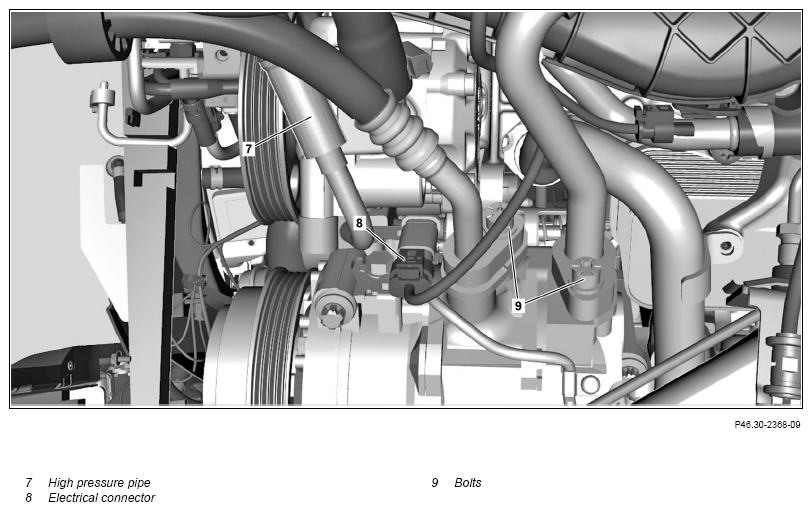

| 8 | Detach high-pressure line (7) from power steering pump (13) | Before opening the power steering's hydraulic system the area around the separation point should be cleaned thoroughly. Even minute particles of dirt, introduced into the hydraulic components, can result in malfunctions or damage to the power steering. |
|
Screw/bolt, hydraulic line to power steering pump |
*BA46.30-P-1019-01B | ||
| *BF46.20-P-1002-01B | |||
| *BF46.20-P-1001-01B | |||
| 9 | Collect escaping hydraulic fluid using rags and seal connections with stop plugs | Fig 3 | |
| 10 | Release and disconnect electrical connector (8) from refrigerant compressor | ||
| 11 | Unscrew bolts (9) from refrigerant compressor and place lines to one side | ||
| *BA83.55-P-1003-02A | |||
| 12 | Seal off connections of lines immediately using stop plugs | Fig 3 | |

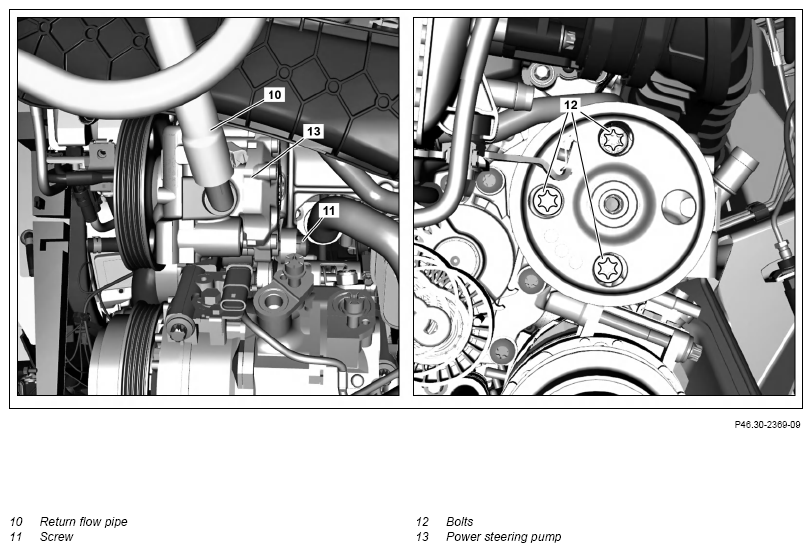

| 13 | Loosen hose clamp on return line (10) and disconnect return line (10) from power steering pump (13) | ||
| 14 | Remove screw (11) | Screw/bolt, power steering pump to carrier |
*BA46.30-P-1003-01B |
| 15 | Unscrew bolts (12) and remove power steering pump (13) towards the front | Screw/bolt, power steering pump to carrier |
*BA46.30-P-1003-01B |
| 16 | Install in the reverse order |
POWER STEERING PUMP
| Number | Designation | Model 463.234/239 | |
|---|---|---|---|
| BA46.30-P-1003-01B | Screw/bolt, power steering pump to carrier | Nm | 20 |
POWER STEERING PUMP
| Number | Designation | Model 463.234/239 | ||
|---|---|---|---|---|
| BA46.30-P-1019-01B | Screw/bolt, hydraulic line to power steering pump | M8 | Nm | 19 |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA83.55-P-1003-02A | Bolt, refrigerant line to refrigerant compressor | Nm | 20 |
FILLING CAPACITIES FOR STEERING GEAR
| Number | Designation | Model 461, 463 | ||
|---|---|---|---|---|
| BF46.20-P-1001-01B | Power steering | Filling capacity for MB power steering fluid | Liter | 1, 0 |
| Specification | BB00.40-P-0236-03A | |||
FILLING CAPACITIES FOR STEERING GEAR
| Number | Designation | Model 461, 463 | ||
|---|---|---|---|---|
| BF46.20-P-1002-01B | Power steering pump | Filling capacity for MB power steering fluid | Liter | 0, 38 |
| Specification | BB00.40-P-0236-03A | |||
